Home » Circuit Protection & Control » 80A 4-Pole IP65 Weatherproof Rotary Isolator

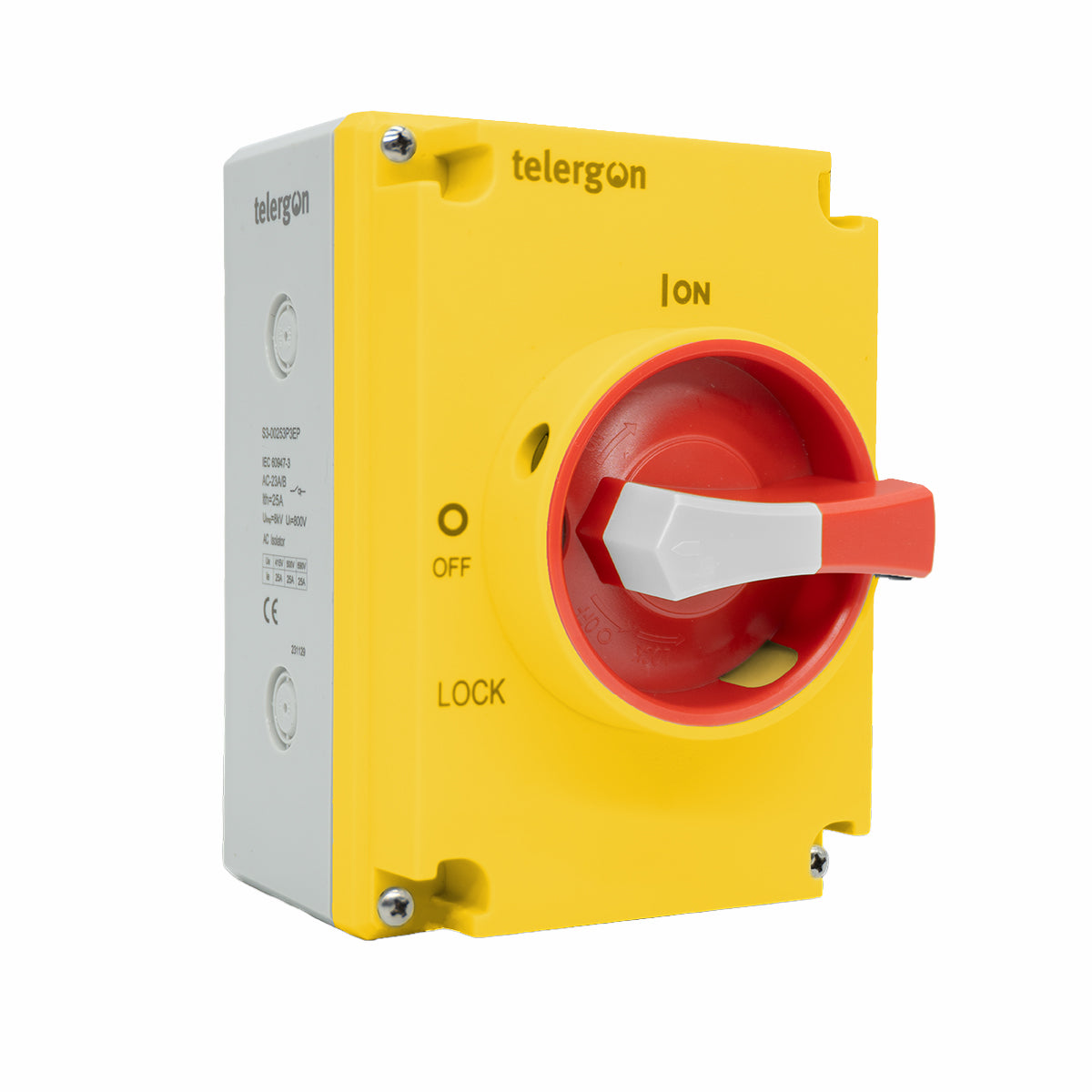

80A 4-Pole IP66 Weatherproof Rotary Isolator — Telergon
80A 4-Pole IP66 Weatherproof Rotary Isolator — Telergon

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Telergon

80A 4-Pole IP65 Weatherproof Rotary Isolator

SKU
$92.33 ex. GST $101.56 inc. GST
In stock
15 in stock across 2 warehouses
  • IP Rating IP65
  • Current 80A
  • Poles 4 Pole
  • Size 00

Standards & certifications

IP65Dust-tight · water jets
Product Datasheet PDF

80A 4-Pole IP65 Weatherproof Rotary Isolator

This 80A isolator delivers safe load breaking for substantial electrical circuits. The weatherproof IP66 housing protects internal contacts from environmental damage. Features an "early-make, late-break" neutral to prevent floating neutral issues during operation. Padlockable handle ensures strict LOTO (Lock Out Tag Out) compliance.

IP rating: enclosure IP66, handle IP65. The complete isolator assembly is rated IP65.

Frame Size 00 – One Size, Several Ratings

Frame size 00 also covers the 63A rating, in the same 120 × 200 mm IP66 enclosure with the same terminal capacity. As the highest rating in the frame, this 80A unit can be used as a direct replacement for 63A IP65 enclosed isolators and suits any load up to 80A.

In this frame: 63A 4-Pole IP65 Weatherproof Rotary Isolator
