IP68 Panel Mount Cable Connector 4-Pole Male Plug
Ask an expert!
- IP Rating
Standards & certifications
IP68Continuous immersion

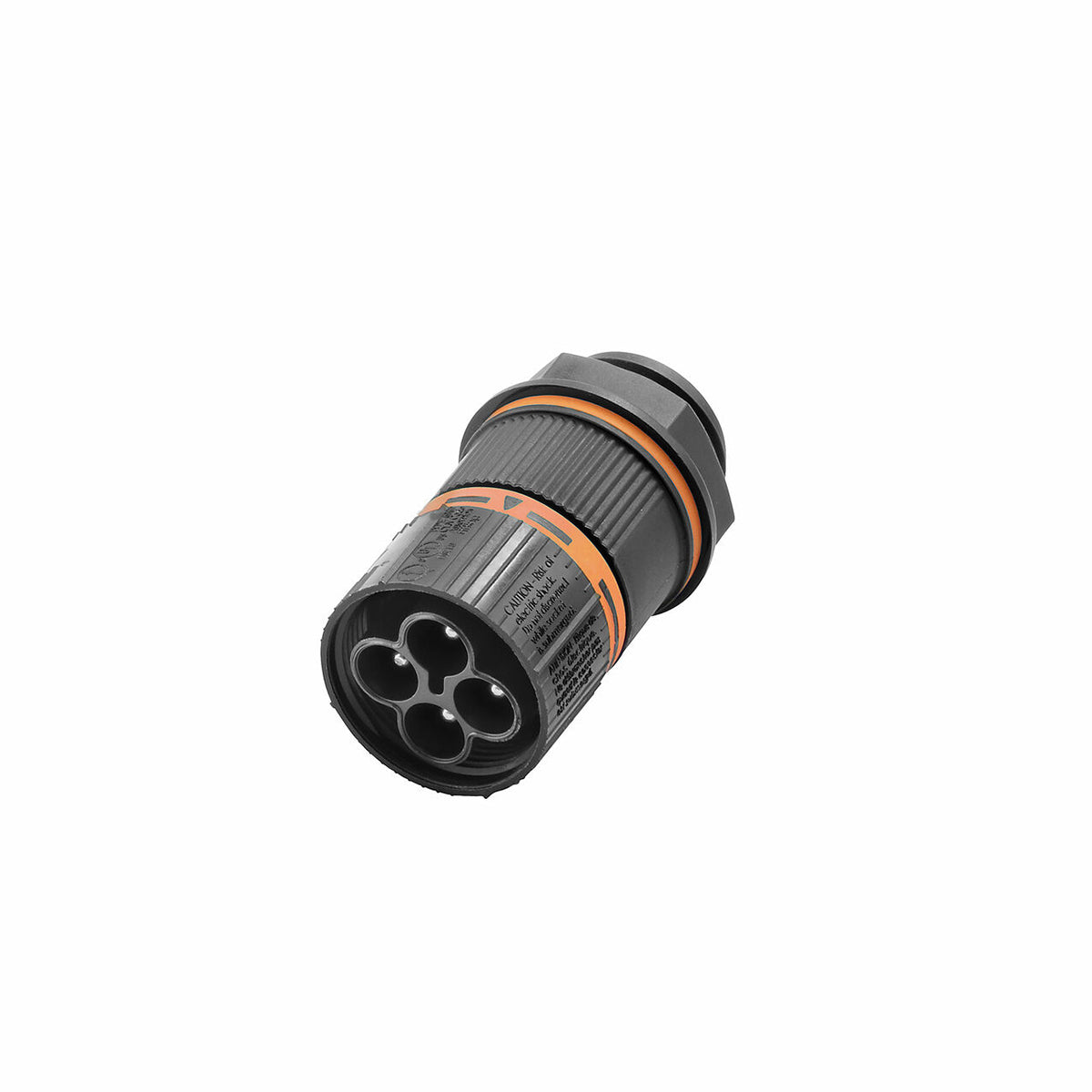

The Weidmüller 3136910000 (RC M P4 M20) is a 4-pole panel mount cable connector male plug with screw terminal connection, rated at 17.5A and 500V with IP68 ingress protection. Designed for front mounting on enclosures, control cabinets, and machines to provide a sealed, field mateable cable entry point. The panel mount design allows secure installation on the enclosure wall and enables cable connection from the field side without opening the enclosure. The M20 screw connection supports conductor cross sections from 0.5 to 4 mm² for stable termination. Features reverse polarity protection and PA 66 housing. Pairs with the Weidmüller 3136920000 female socket. Protective cap 2820090000 available separately to maintain IP68 rating when disconnected.
| Article Number | 3136910000 |
| Weidmüller Type | RC M P4 M20 |
| Configuration | Panel Mount, Male Plug |
| Number of Poles | 4 |
| Connection Type | Screw connection |
| Rated Current | 17.5 A |
| Rated Voltage | 500 V |
| IP Rating | IP68 |
| Connection Thread | M20 |
| Cable Diameter | 7–13 mm |
| Conductor Cross-Section | 0.5–4 mm² |
| Housing Material | PA 66 |
| Operating Temperature | -40 °C to +60 °C |
| Reverse Polarity Protection | Yes |
| Approvals | cULus (E307231) · RoHS |
