IP68 Inline Cable Connector 2-Pole Male Plug
Ask an expert!
- IP Rating
Standards & certifications
IP68Continuous immersion

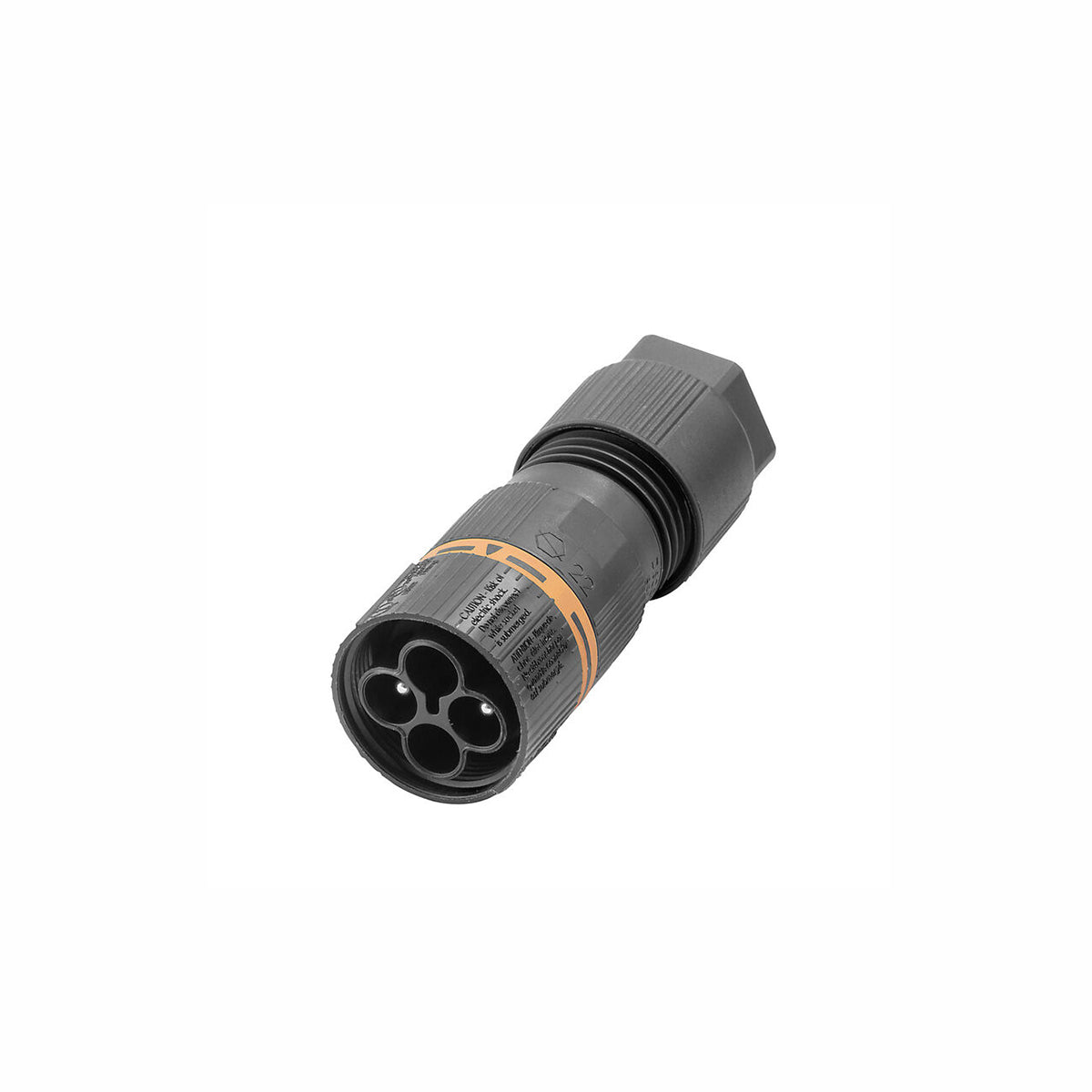

The Weidmüller 2903190000 (RC M P2 SP) is a 2-pole inline cable connector male plug with screw terminal connection, rated at 17.5A and 500V with IP68 ingress protection. Designed for direct cable-to-cable connections in outdoor, wet area, and industrial environments, the inline configuration allows fast and secure field assembly. The M20 screw terminal connection accommodates conductor cross-sections from 0.5 to 4 mm² and provides a reliable, vibration-resistant termination. Features reverse polarity protection and a housing manufactured from PA 66. Pairs with the Weidmüller 2903200000 female socket to form a complete inline connector set. Protective cap (2820090000) available separately to maintain IP68 rating when disconnected.
| Article Number | 2903190000 |
| Weidmüller Type | connector |
| Configuration | Inline — Male Plug |
| Number of Poles | 2 |
| Connection Type | Screw connection |
| Rated Current | 17.5 A |
| Rated Voltage | 500 V |
| IP Rating | IP68 |
| Connection Thread | M20 |
| Cable Diameter | 7–13 mm |
| Conductor Cross-Section | 0.5–4 mm² |
| Housing Material | PA 66 |
| Operating Temperature | -40 °C to +60 °C |
| Reverse Polarity Protection | Yes |
| Approvals | cULus (E307231) · RoHS |
TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
