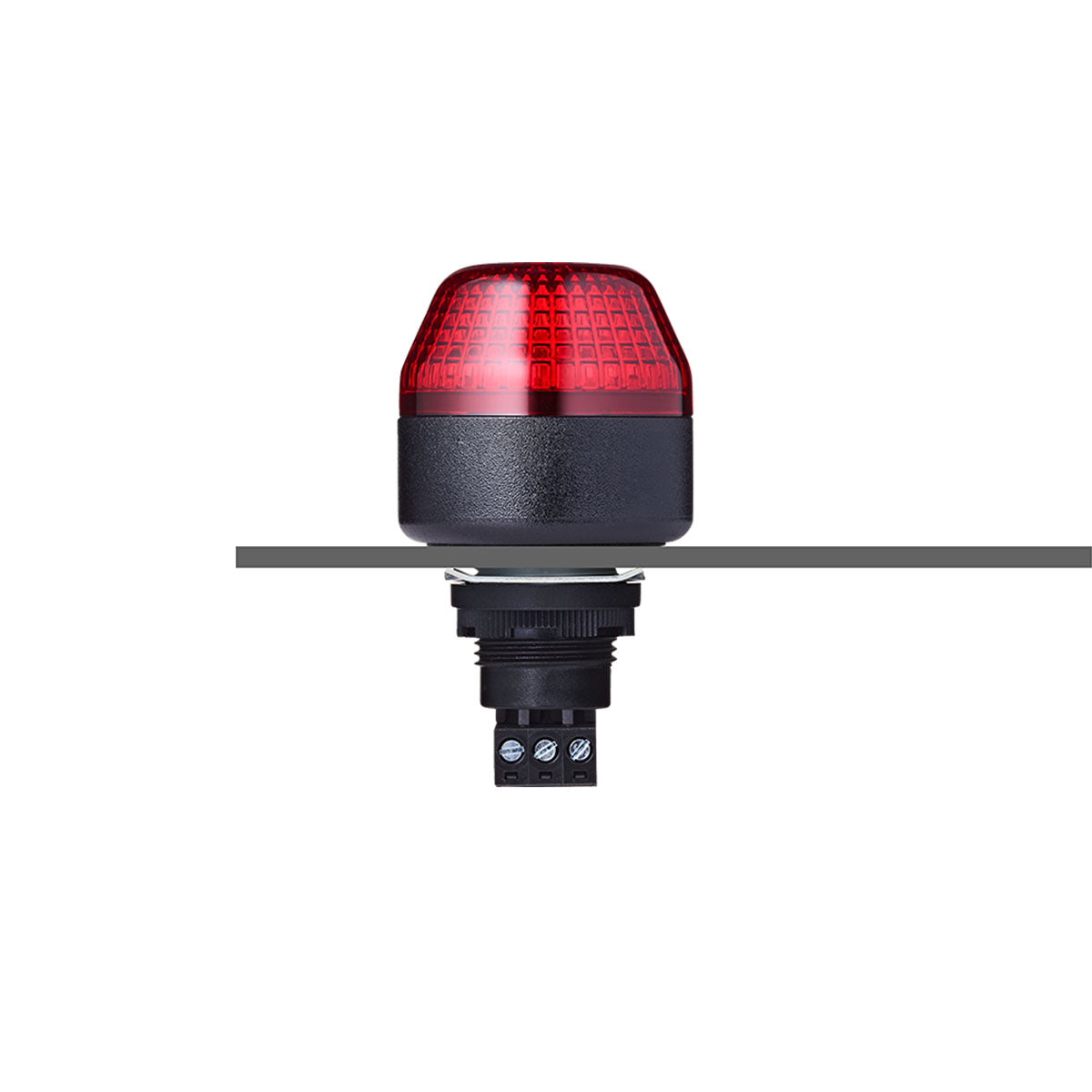

IBM Series M22 Ø45mm Panel Mount Beacon, Steady/Flashing Light, Red, 230/240VAC

SKU
$120.35 ex. GST $132.39 inc. GST
In stock
5 in stock across 2 warehouses
  • Type IBM Series
  • Material Polycarbonate
  • Colour Red
  • IP Rating IP65
  • IK Rating IK07
  • Weight (kg) 0.055
  • Operating Temp −25°C to +60°C
  • Country of Origin DE
  • Standards
    • EN 61000-6-2:2005
  • Certifications
    • CE
    • UL
  • Voltage 230/240V

Standards & certifications

IP65Dust-tight · water jets IK07Impact rated CEEU conformity ULUS safety listed IEC/EN 61000-6-2:2005 Tested standards

IBM M22 panel mount LED steady/flashing beacon

  • Ø 45 mm panel-mount LED steady/flashing beacon
  • Good signalling effect
  • High degree of protection IP 65
  • User-friendly connection technology
  • Prewired model versions with IP 67 on request
  • Modern LED technology and electronics
  • Steady/flashing light, can be switched externally
  • For industrial and general applications
  • Panel size Ø 22.5 mm/M22
  • Adapter available for M30.5 mm panel size
