Home » Auer Signal » IBL Series M22 Ø65mm Panel Mount Beacon, Steady/Flashing Light, Green, 24VAC/DC

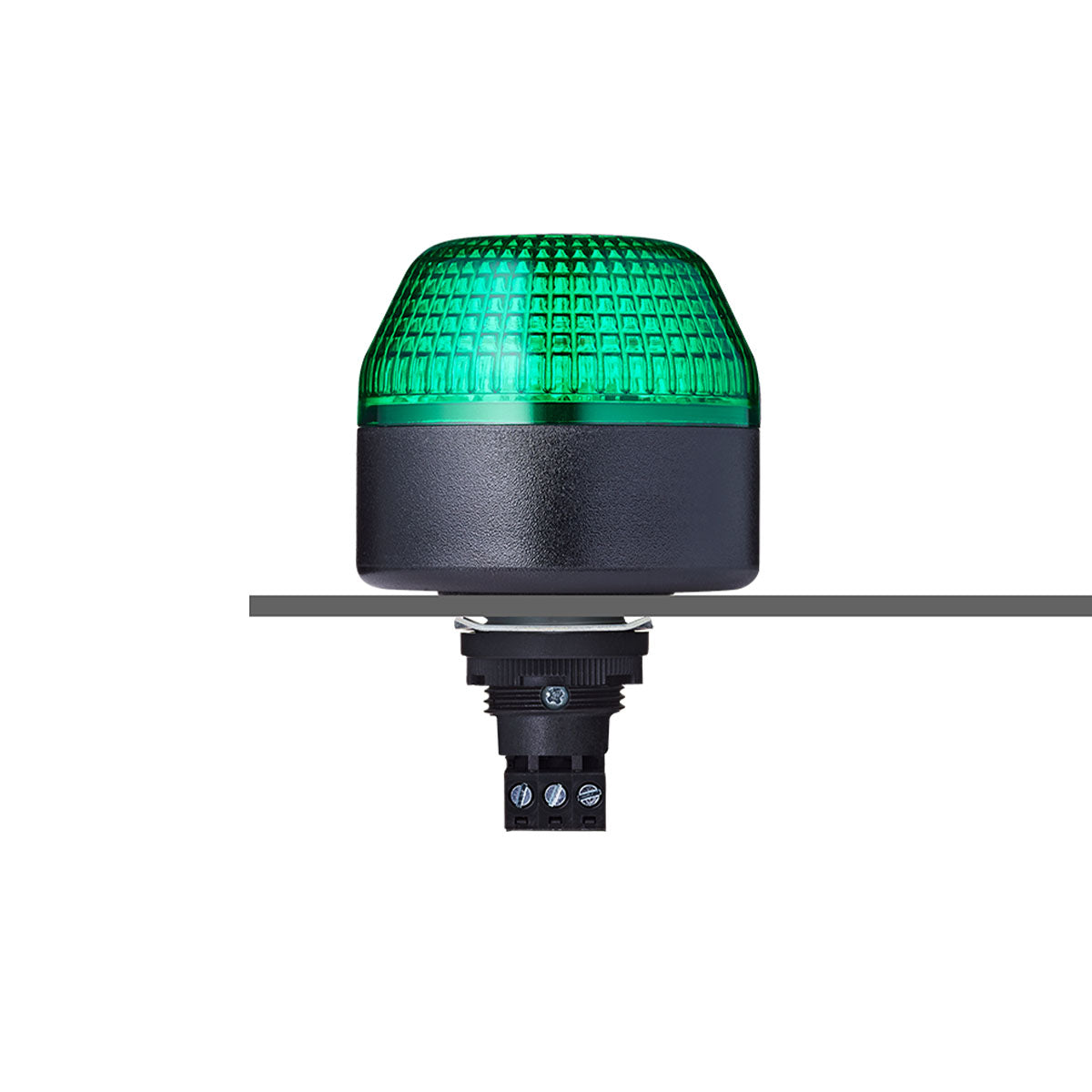

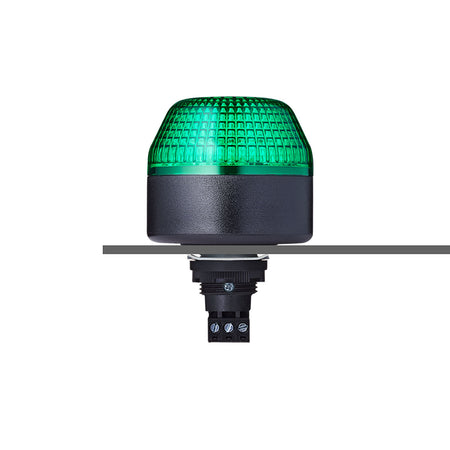

IBL Series M22 Ø65mm Panel Mount Beacon, Steady/Flashing Light, Green, 24VAC/DC — Auer Signal

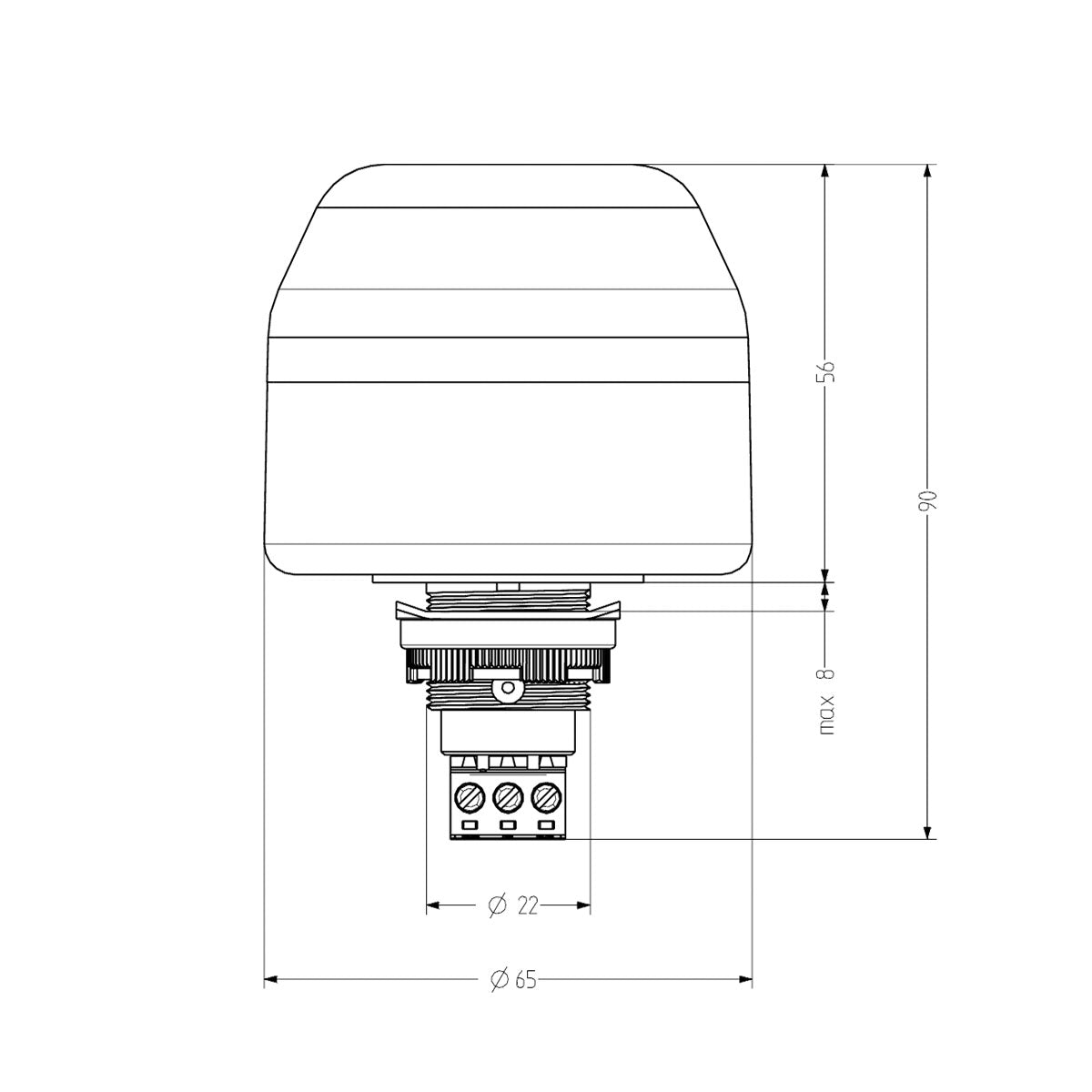

AU-802506405 - image 2
IBL Series M22 Ø65mm Panel Mount Beacon, Steady/Flashing Light, Green, 24VAC/DC — Auer Signal
AU-802506405 - image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Auer Signal

IBL Series M22 Ø65mm Panel Mount Beacon, Steady/Flashing Light, Green, 24VAC/DC

SKU
$134.96 ex. GST $148.46 inc. GST
In stock
3 in stock across 2 warehouses
  • Type IBL Series
  • Material Polycarbonate
  • Colour Green
  • IP Rating IP65
  • IK Rating IK07
  • Weight (kg) 0.075
  • Operating Temp −25°C to +60°C
  • Country of Origin DE
  • Standards
    • EN 61000-3-2:2006
  • Certifications
    • CE
    • UL
  • Voltage 24V

Standards & certifications

IP65Dust-tight · water jets IK07Impact rated CEEU conformity ULUS safety listed IEC/EN 61000-3-2:2006 Tested standards

IBL M22 panel mount LED steady/flashing beacon

  • Ø 65 mm panel-mount LED steady/flashing beacon
  • Good signalling effect
  • High degree of protection IP 65
  • User-friendly connection technology
  • Prewired model versions with IP 67 on request
  • Modern LED technology and electronics
  • Steady/flashing light, can be switched externally
  • For industrial and general applications
  • Panel size Ø 22.5 mm/M22
  • Adapter available for M30.5 mm panel size

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
