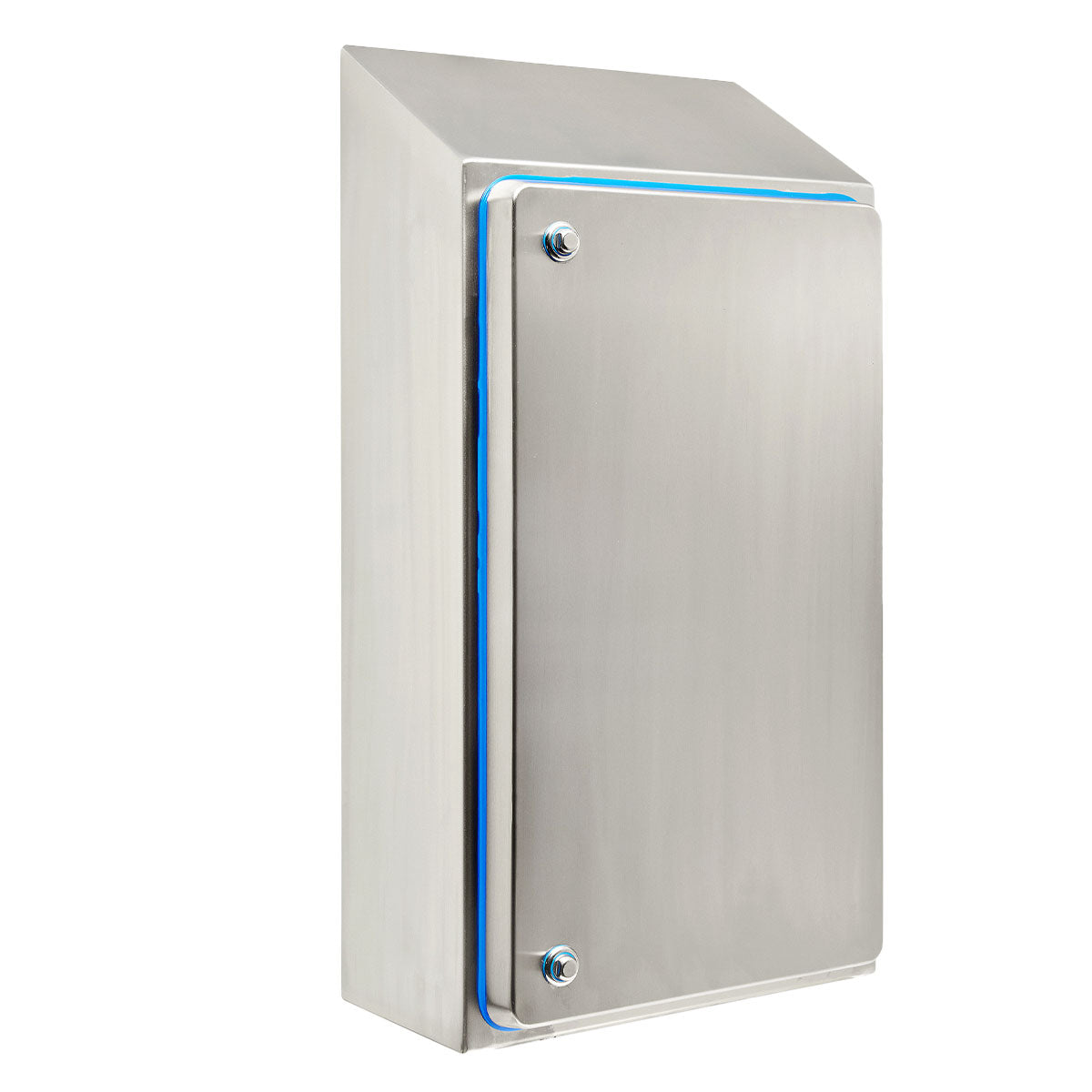

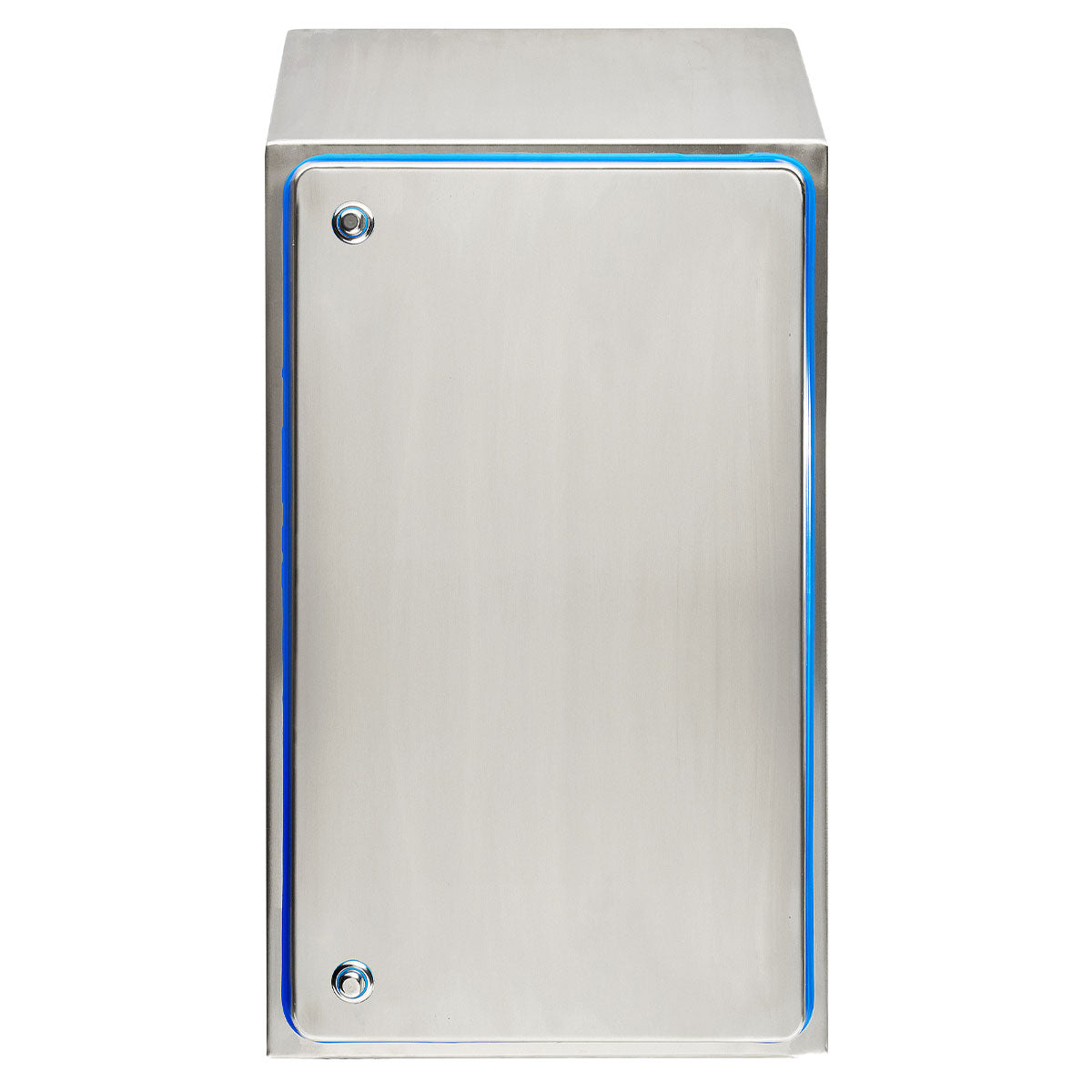

Hygienic Electrical Enclosure 600H x 380W x 210D IP69K
IP69K hygienic electrical enclosures are designed to prevent contamination and are suitable for the food & beverage, pharmaceutical and other industries that require high hygienic standards.
Features & Specifications
Protection: Complies with IP66 IK07, IP69K.
Standard: DGUV EN1672-2, EN62208, EN/AS60529, ISO20653, UL508A, EHEDG, RoHS
Material:
– Enclosure Body: 1.5mm Grade 304 Stainless Steel
– Enclosure Door: 1.5mm Grade 304 Stainless Steel
– Enclosure Seal: Silicone FDA Compliant
Enclosure Body:
The robust monoblock body with 30° sloping roof is fabricated using 1.5mm Grade 304 Stainless Steel. It is designed to be completely smooth and without crevices and without concave angles to facilitate cleaning and avoid deposits. The body is designed to promote self draining for ease of hygienic cleaning.
Enclosure Door:
The door is fabricated using 1.5mm Grade 304 Stainless Steel and includes specially cast internal hinges. The door is designed for a 115° opening with hinges on the right hand side.
Enclosure Seal:
Blue silicone seal, FDA compliant for food production areas.
Enclosure Lock:
IP69K Stainless Steel Hygiene lock with seal. Dirt resistant and easy to clean.
Device Mounting Plate:
Fabricated using galvanised steel sheet. Supplied fitted.
Note: Please choose product carefully. Product selection is the responsibility of the 'Purchaser'. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
