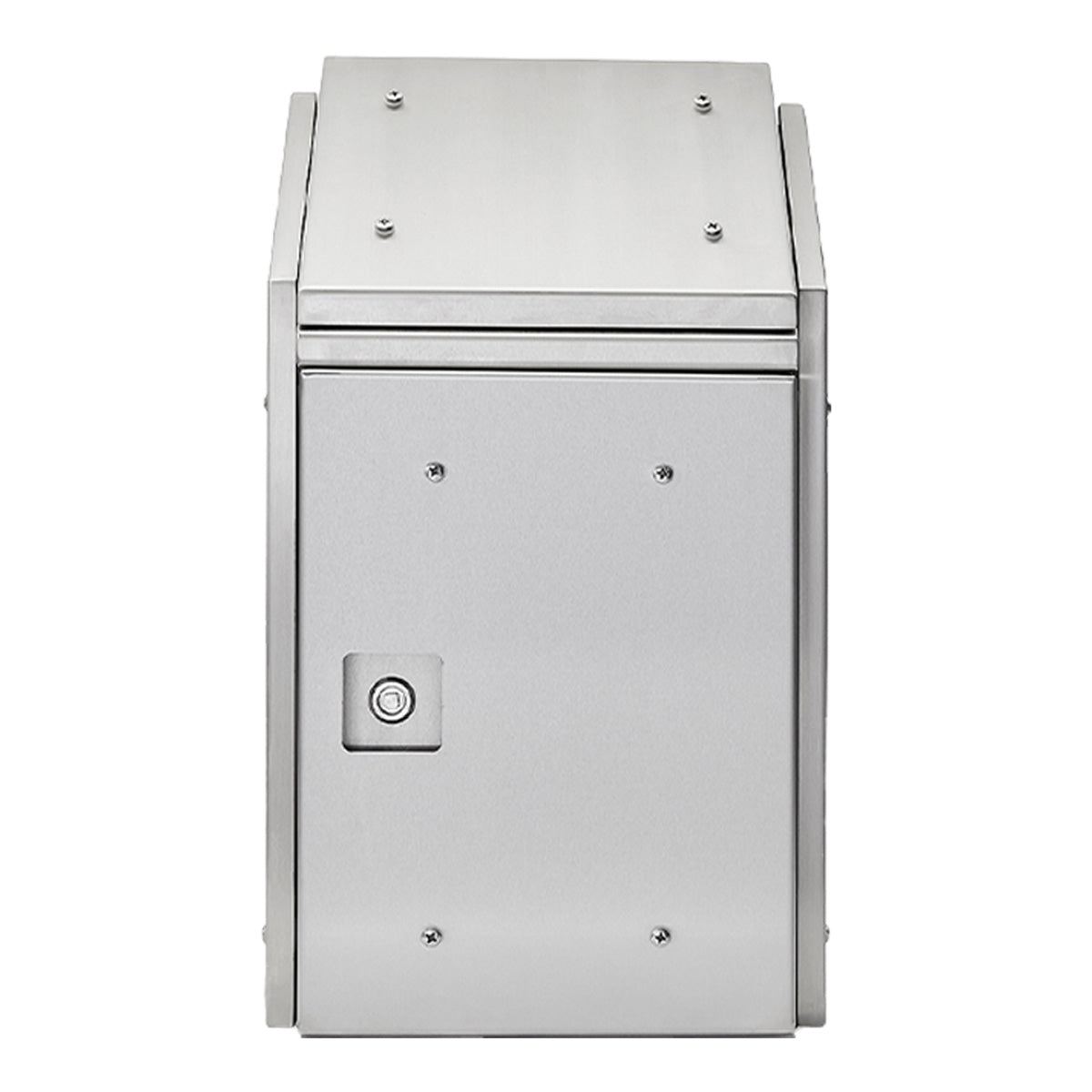

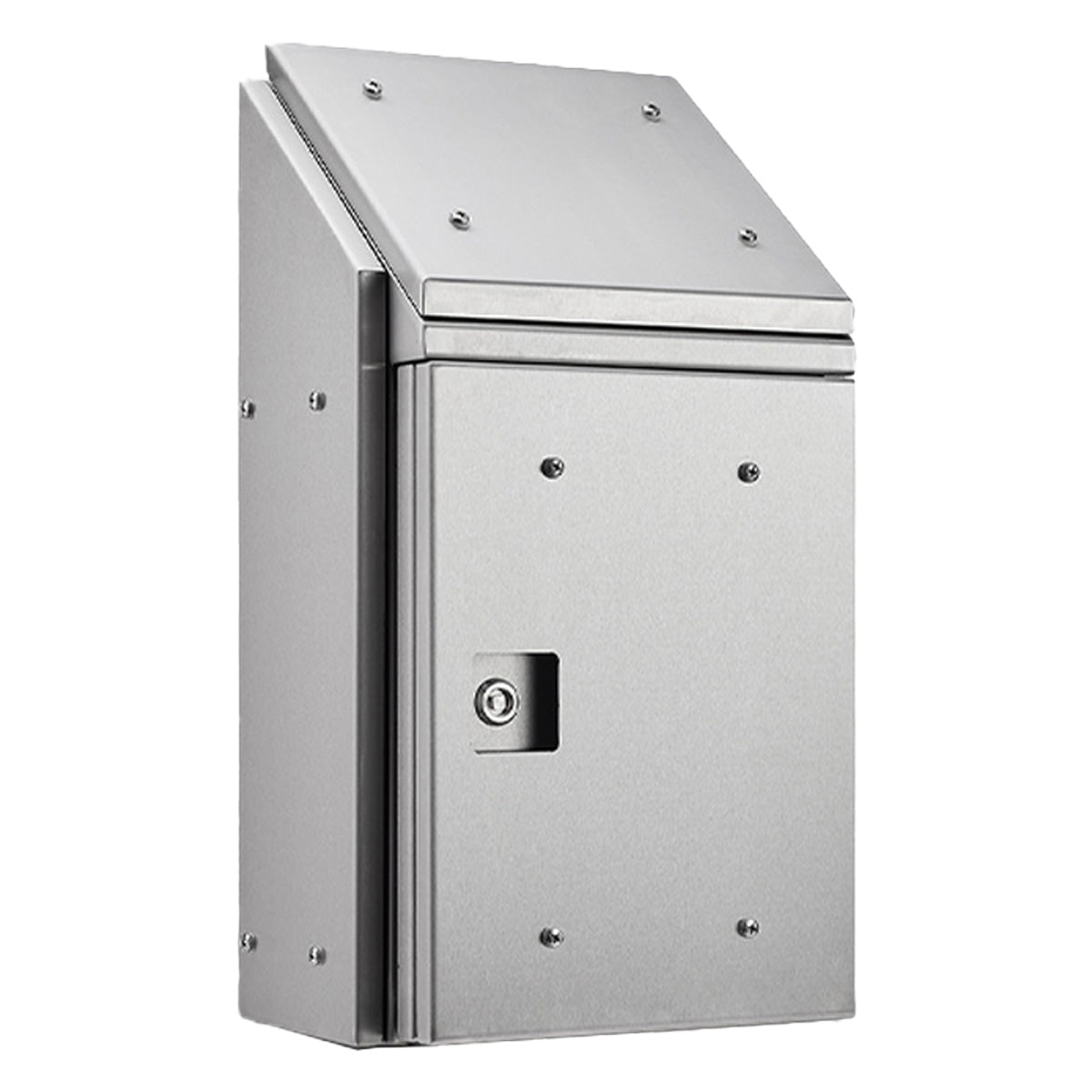

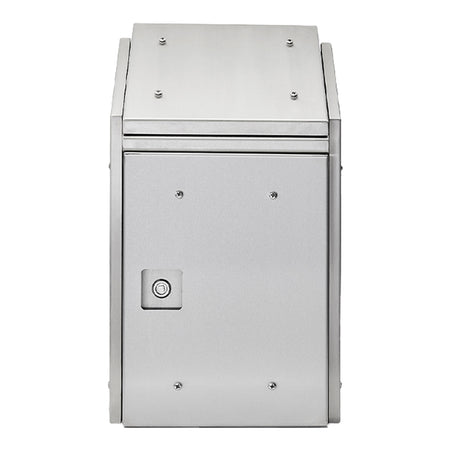

316 Stainless Steel Sloping Roof Electrical Enclosure 400H x 300W x 200D IP66, Heavy Duty
IP Enclosures Heavy Duty Stainless Steel Sloping Roof Electrical Enclosures are designed to house a variety of electrical switch and control equipment while preventing build-up of dust, debris and waste material in extreme environments.
Features & Specifications
Protection: IP66 IK10, NEMA 4 (Independent accredited test laboratory).
Standard: IEC 62208, IEC/EN/AS60529, (UL508A Optional), RoHS
Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’.
Material:
Body: 2.0 316 Stainless Steel
Door: 2.0 316 Stainless Steel
Device Mounting Plate: Galvanised steel sheet
Seal: Polyurethane
Enclosure Body:
The monoblock body with sloping roof is fabricated using 2mm 316 Stainless Steel sheet. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounting. The roof consists of a 38° sloped roof design that protrudes past pushbuttons for the mining industry. Integral device plate mounts and M6 earth stud is provided.

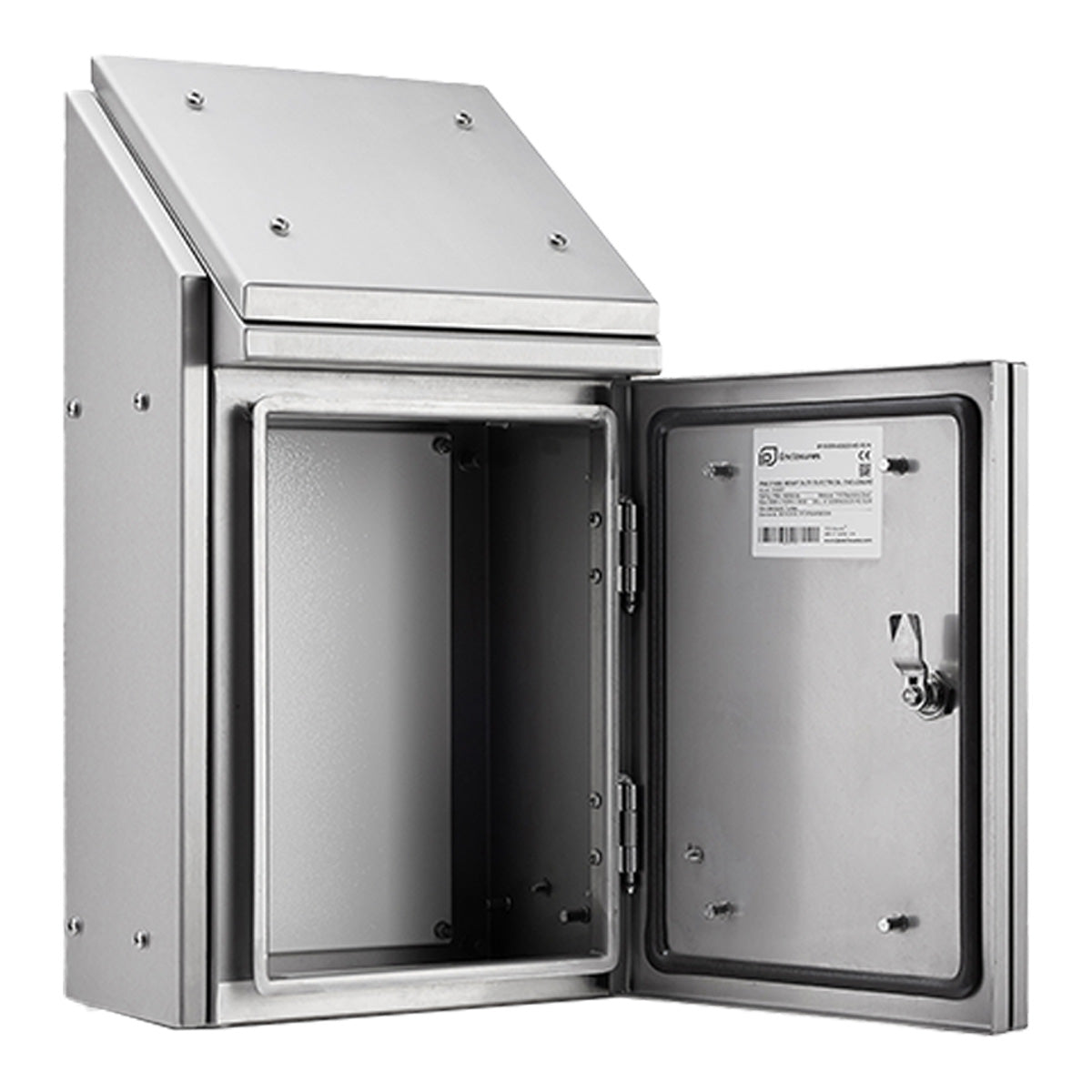

Enclosure Door:
The surface mounted door is fabricated using 2mm 316 Stainless Steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal.
Enclosure Seal:
A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).
Enclosure Lock:
316 stainless steel 8mm square lock.
Device Mounting Plate:
The device mounting plate is galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.
