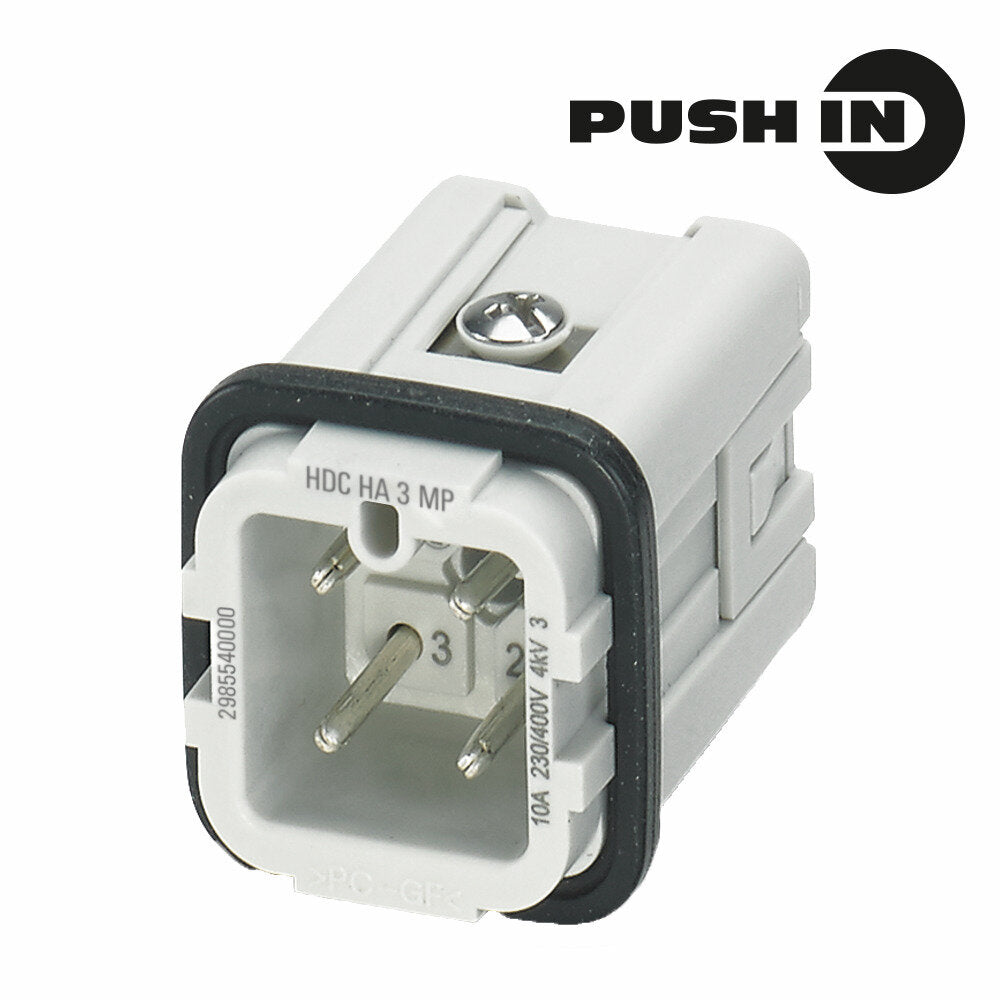

Heavy Duty Connector Insert, Male, 3 Pole + PE, Push-In, 10A 400V, Size 1 - HDC HA 3 MP

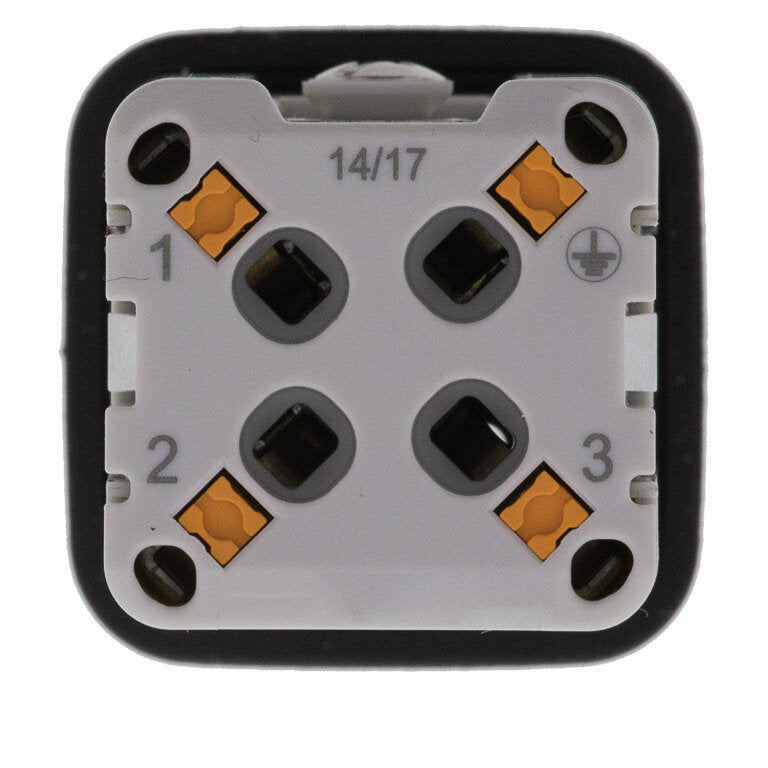

Weidmüller RockStar® HDC HA 3-pole male insert with PE contact, rated 10 A / 400 V (IEC 61984) for 0.14–1.5 mm² wires. PUSH IN terminals with actuator: press the actuator and insert the wire, no tools needed. Fit it in a size 1 hood or housing and mate it with the matching female HDC HA 3 insert to make an IP65 pluggable power and signal connection for machines, control panels and field equipment.

Building a complete connector? Use the HDC Connector Kit Builder to pick the matching inserts, housings and gland, and add the whole kit to your cart in one step.

Parts needed for a complete connector

• Mating insert: Heavy Duty Connector Insert, Female, 3 Pole + PE, Push-In, 10A 400V, Size 1 (2985550000)
• Hood (cable side): Heavy Duty Connector Hood, Size 1, Top Entry M20, IP65 (1788820000)
• Housing (fixed side): Heavy Duty Connector Bulkhead Housing, Size 1, IP65 (1497600000)
• Cable gland: Brass Cable Gland M20, 6–12 mm Cable, IP68 (1772220000)

Specifications
