Heavy Duty Connector Bulkhead Housing with Cover, Size 2, IP65 - HDC 10A ADLU

SKU
$21.55 ex. GST $23.71 inc. GST

Online Clearance Pricing only. Non-cancellable and non-returnable.

In stock
8 in stock across 2 warehouses
  • Type Bulkhead Housing
  • Series HDC
  • Material Aluminium
  • IP Rating IP65
  • Operating Temp -40 °C to 125 °C
  • Size Size 2

Standards & certifications

IP65Dust-tight · water jets
Product Datasheet PDF

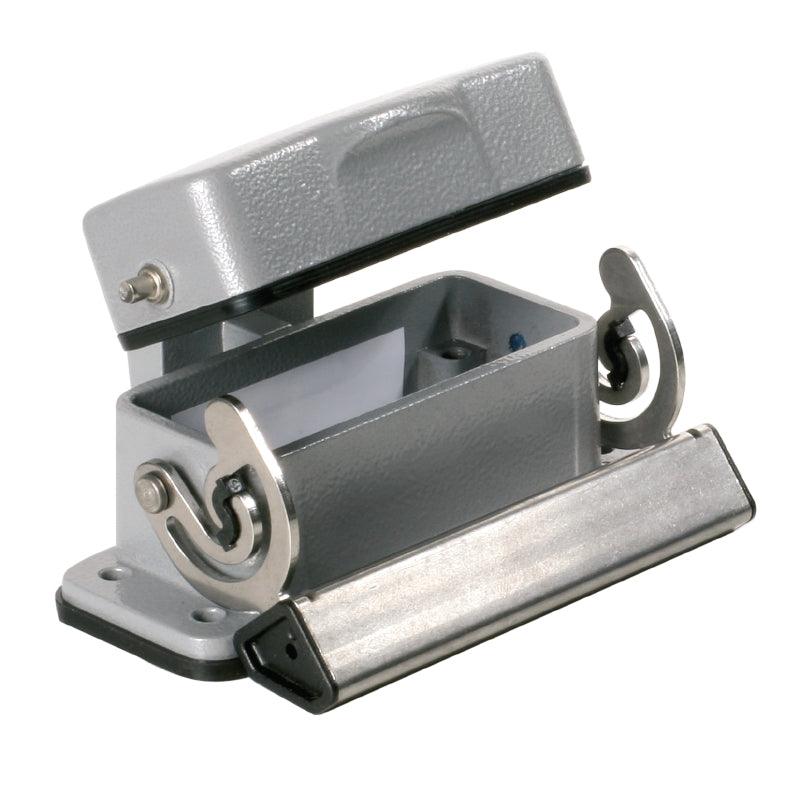

Weidmüller RockStar® HDC size 2 bulkhead housing for mounting through a panel or cabinet wall. Its hinged cover seals the contacts when the hood is unplugged, and the locking lever holds the hood closed for IP65 protection. Takes HDC size 2 inserts. Die-cast aluminium, powder coated. Clearance line, available while stock lasts.

Specifications

Weidmüller type HDC 10A ADLU
Part Bulkhead housing (panel mount)
Installation size Size 2
Locking Single locking lever on the housing; hood has locking pegs
Cover Hinged cover included
Protection IP65 when mated
Material Die-cast aluminium, powder coated RAL 7035
Seal NBR
Temperature range -40 °C to 125 °C
Dimensions (H × W × L) 26 mm × 76 mm × 63 mm
Mounting hole pitch 70 mm × 18 mm
Weight 139 g
Approvals cURus (E92202) · RoHS
