Heavy Duty Connector Bulkhead Housing with Cover, Size 6, IP65 - HDC 16B ADLU
Regular price
$72.46
ex. GST
$79.71
inc. GST
Restocking
- Type
- Series
- Material
- IP Rating
- Operating Temp
- Size
Standards & certifications
IP65Dust-tight · water jets

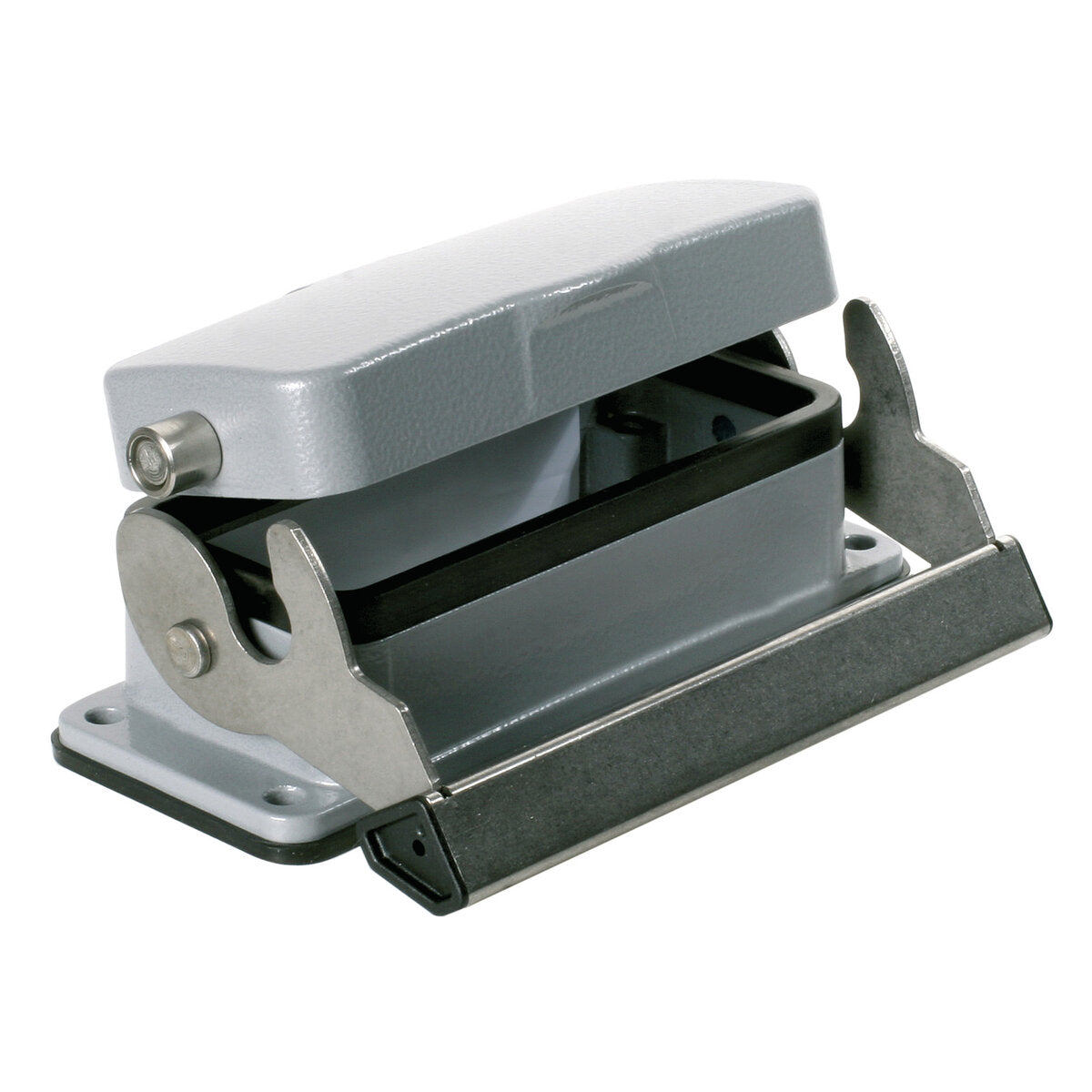

Weidmüller RockStar® HDC size 6 bulkhead housing for mounting through a panel or cabinet wall. Its hinged cover seals the contacts when the hood is unplugged, and the locking lever holds the hood closed for IP65 protection. Takes HDC size 6 inserts. Die-cast aluminium, powder coated.
Building a complete connector? Use the HDC Connector Kit Builder to pick the matching inserts, housings and gland, and add the whole kit to your cart in one step.
Parts needed for a complete connector
- Inserts: Heavy Duty Connector Insert, Male, 16 Pole + PE, Screw, 16A 500V, Size 6 (1207500000); Heavy Duty Connector Insert, Male, 16 Pole + PE, Push-In, 16A 500V, Size 6 (1873570000); Heavy Duty Connector Insert, Female, 16 Pole + PE, Screw, 16A 500V, Size 6 (1207700000); Heavy Duty Connector Insert, Female, 16 Pole + PE, Push-In, 16A 500V, Size 6 (1873560000)
- Hood (cable side): Heavy Duty Connector Hood, Size 6, Side Entry M25, IP65 (1788200000); Heavy Duty Connector Hood, Size 6, Top Entry M25, IP65 (1788230000)
- Cable gland: Brass Cable Gland M25, 10–14 mm Cable, IP68 (1772230000)
Specifications
| Weidmüller type | HDC 16B ADLU |
|---|---|
| Part | Bulkhead housing (panel mount) |
| Installation size | Size 6 |
| Locking | Single locking lever on the housing; hood has locking pegs |
| Cover | Hinged cover included |
| Protection | IP65 when mated |
| Material | Die-cast aluminium, powder coated RAL 7035 |
| Seal | NBR |
| Temperature range | -40 °C to 125 °C |

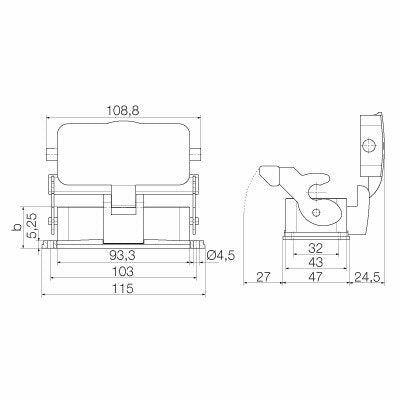

| Dimensions (H × W × L) | 47 mm × 98.5 mm × 93.3 mm |

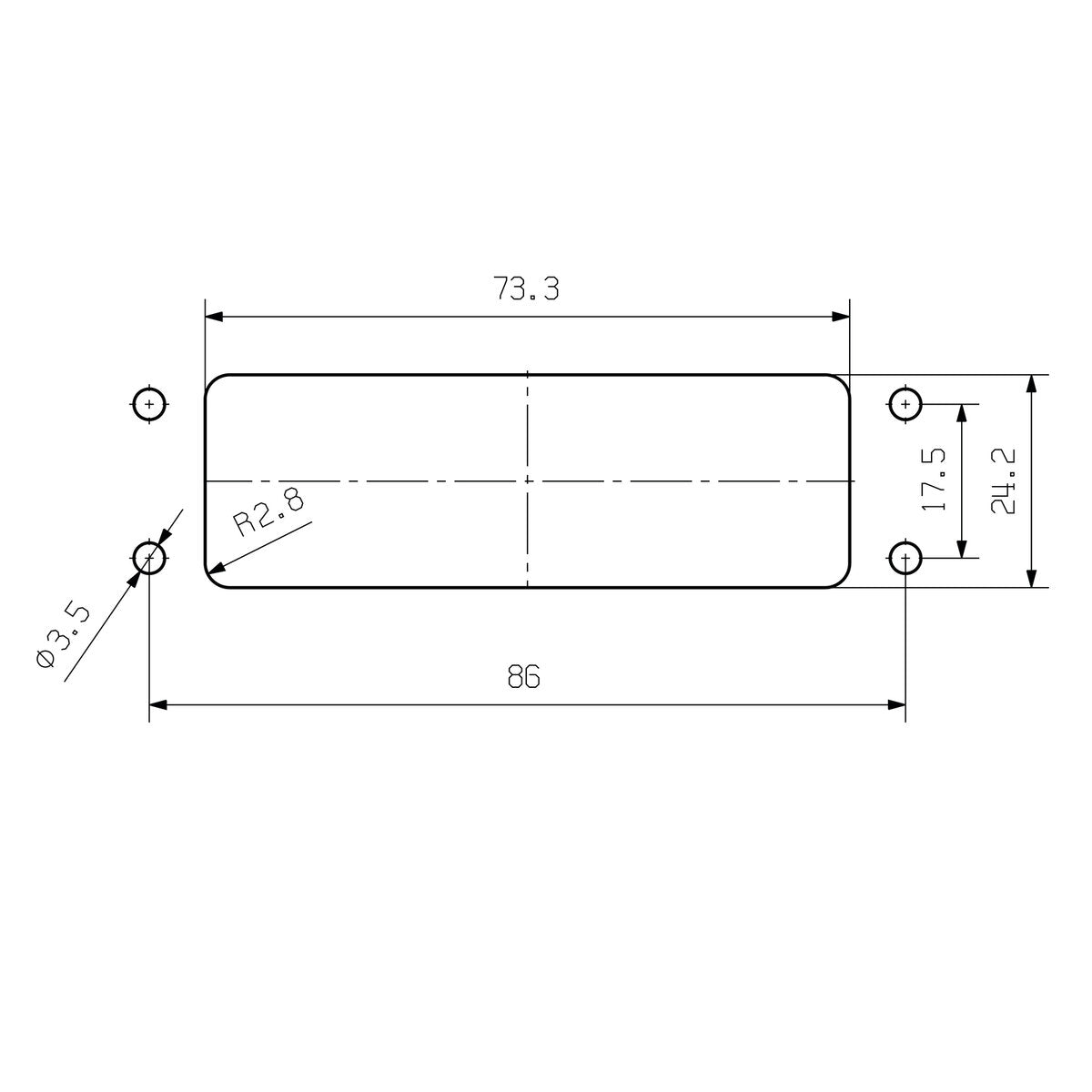

| Mounting hole pitch | 103 mm × 32 mm |
| Weight | 245 g |
| Approvals | cURus (E92202) · RoHS |
