Heavy Duty Connector Hood, Size 4, Side Entry M32, IP65 - HDC 24D TSBU 1M32G

SKU
$27.96 ex. GST $30.76 inc. GST

Online Clearance Pricing only. Non-cancellable and non-returnable.

In stock
12 in stock across 2 warehouses
  • Type Hood
  • Series HDC
  • Material Aluminium
  • Colour RAL7035 Grey
  • Finish Powder Coat
  • IP Rating IP65
  • Weight (kg) 0.183
  • Operating Temp -40 °C to 125 °C
  • Certifications
    • UL
    • RoHS
  • Size Size 4

Standards & certifications

IP65Dust-tight · water jets ULUS safety listed RoHSHazard-free
Product Datasheet PDF

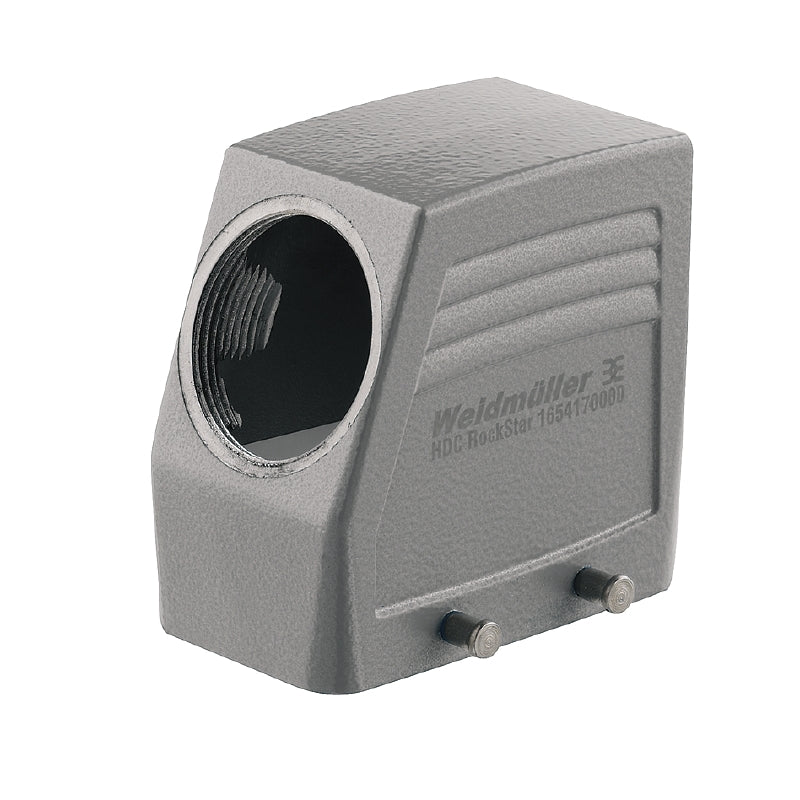

Weidmüller HDC size 4 hood (plug housing) with side M32 cable entry. This housing uses side locking, so it suits existing HDC installations with matching side-locking housings. Clearance line, available while stock lasts.

Construction

Overall dimensions 72 mm H × 58 mm W × 73 mm L. Locks with the side locking clamp on the mating housing. Sealing is provided by the mating housing. Cable gland not included.
