Heavy Duty Connector Hood, Size 4, Top Entry M25, IP65 - HDC 10B TOLU 1M25G
Regular price
$33.70
ex. GST
$37.07
inc. GST
Restocking
- Type
- Series
- Material
- IP Rating
- Operating Temp
- Size
Standards & certifications
IP65Dust-tight · water jets

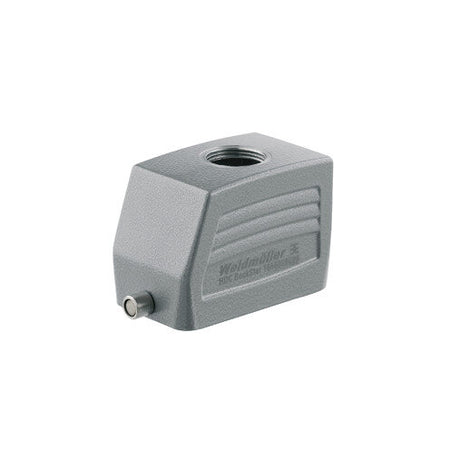

Weidmüller RockStar® HDC size 4 hood (plug housing) with top cable entry, M25 thread. It holds the cable-side insert and locks onto a size 4 bulkhead or surface mount housing, giving IP65 protection when mated. Die-cast aluminium, powder coated. Order the M25 cable gland separately.
Building a complete connector? Use the HDC Connector Kit Builder to pick the matching inserts, housings and gland, and add the whole kit to your cart in one step.
Parts needed for a complete connector
- Inserts: Heavy Duty Connector Insert, Male, 10 Pole + PE, Screw, 16A 500V, Size 4 (1203900000); Heavy Duty Connector Insert, Male, 10 Pole + PE, Push-In, 16A 500V, Size 4 (1873550000); Heavy Duty Connector Insert, Female, 10 Pole + PE, Screw, 16A 500V, Size 4 (1204100000); Heavy Duty Connector Insert, Female, 10 Pole + PE, Push-In, 16A 500V, Size 4 (1873540000)
- Housing (fixed side): Heavy Duty Connector Bulkhead Housing with Cover, Size 4, IP65 (1206500000); Heavy Duty Connector Surface Mount Housing with Cover, Size 4, M25 Entry, IP65 (1903410000)
- Cable gland: Brass Cable Gland M25, 10–14 mm Cable, IP68 (1772230000)
Specifications
| Weidmüller type | HDC 10B TOLU 1M25G |
|---|---|
| Part | Hood (plug housing, cable side) |
| Installation size | Size 4 |
| Cable entry | Top, M25 thread (cable gland not included) |
| Locking | Single locking lever on the housing; hood has locking pegs |
| Cover | n/a |
| Protection | IP65 when mated |
| Material | Die-cast aluminium, powder coated RAL 7035 |
| Seal | Seal in mating housing |
| Temperature range | -40 °C to 125 °C |

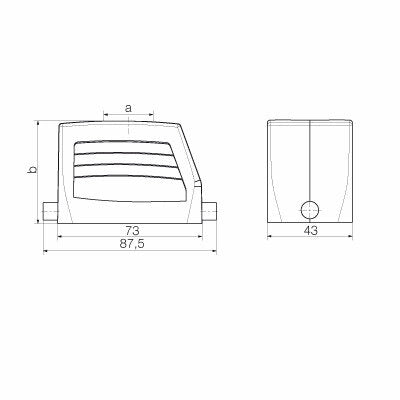

| Dimensions (H × W × L) | 52 mm × 43 mm × 73 mm |
| Weight | 141 g |
| Approvals | cURus (E92202) · RoHS |
TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
