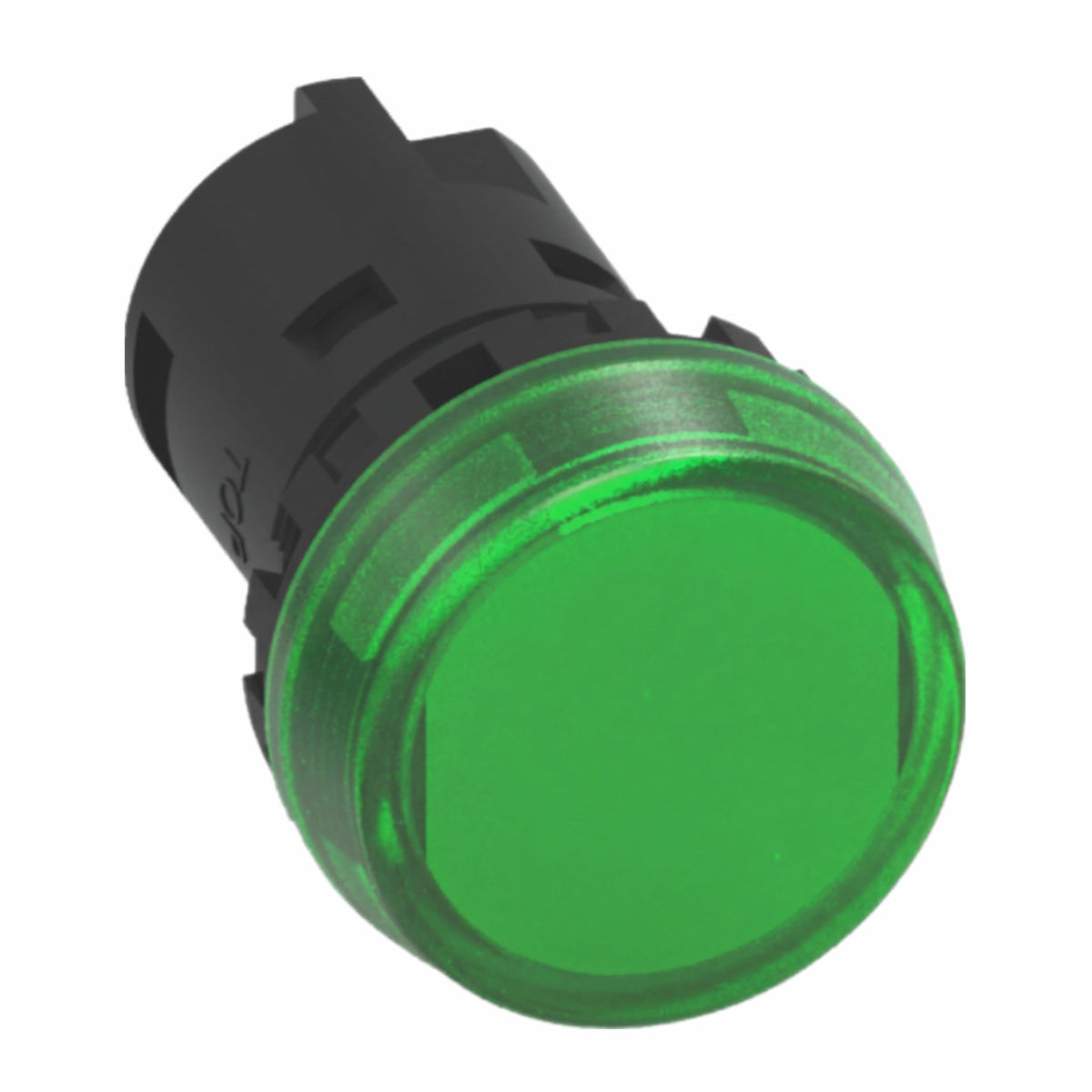

Green LED Pilot Light 22mm 12V AC/DC IP65

Green LED Pilot Light 12V AC/DC, 22mm Flat

The LA1AI00G012 is a flat-lens green LED pilot light operating at 12V AC/DC, mounting into a standard 22mm panel cut-out. Solid-state LED illumination draws minimal current and removes the lamp-replacement maintenance that filament indicators carry.

Features and Specifications

Protection: IP65. Operating range -20°C to +55°C.

Standards (& Conformities): IEC 60947-1, IEC 60947-5-1, CE, RoHS.

Mounting:

Panel cut-out: Ø22.3mm ±0.2 (M22×1)
Panel thickness: 0.8–6 mm

Materials:

PC lens, PA66 housing

Manufacturer: Telergón, S.A.U., Zaragoza, Spain — European-engineered, CE marked to the Low Voltage (2014/35/EU) and RoHS (2011/65/EU) Directives.
