Weidmuller

FrontCom Micro RJ45 module, TIA-568A - IE-FCM-RJ45-FJ-A

SKU
$34 ex. GST $37.40 inc. GST
In stock
9 in stock across 3 warehouses
  • IP Rating IP20

Standards & certifications

IP20Ingress protection

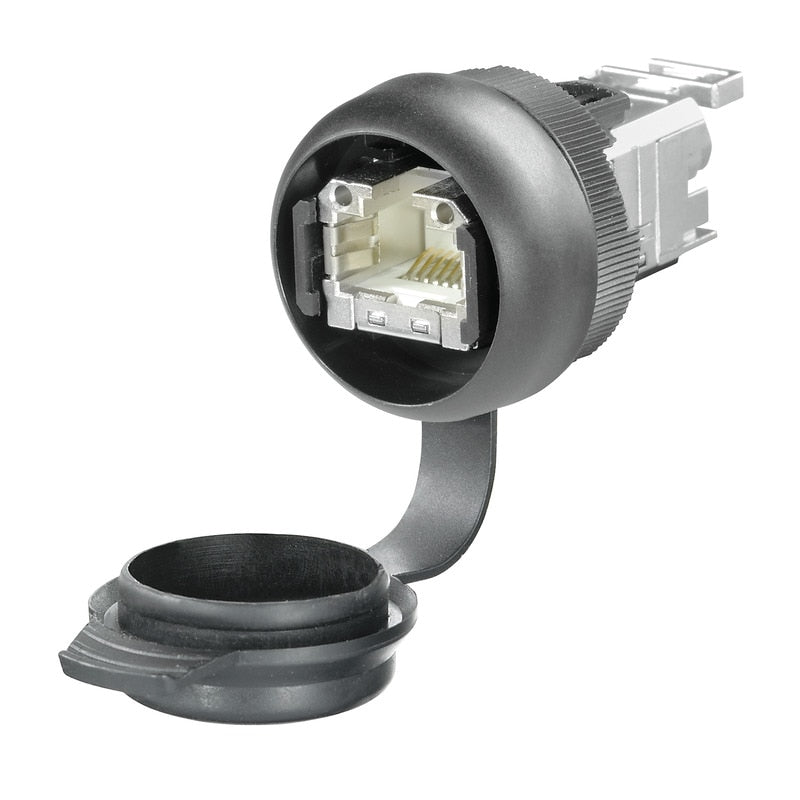

The Weidmüller IE-FCM-RJ45-FJ-A is a FrontCom Micro RJ45 insert for cabinet and distribution box walls, terminated on the inside by IDC onto installation cable and presenting a shielded RJ45 socket on the outside. It is wired to the TIA-568A colour scheme, so choose this version where the rest of the structured cabling follows TIA-568A.

  • Termination: IDC
  • Wiring: TIA-568A
  • Category: Cat.6A / Class EA (ISO/IEC 11801:2010)
  • Conductors: AWG 24-22 solid, AWG 26-22 flexible
  • Protection: IP65 in the closed state
  • PoE: PoE/PoE+ to IEEE 802.3bt
  • Shielding: 360° shield contact
  • Operating temperature: -40 °C to 70 °C
