Filter Vent 325 x 325, UV Rated, IP55 High Efficiency (G4)
Regular price
$207.07
ex. GST
$227.78
inc. GST
Restocking
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
0 in stock
Updated
4 minutes ago
Shipping & pickup →- Type
- Material
- IP Rating
Standards & certifications
IP55Dust-protected · water jets

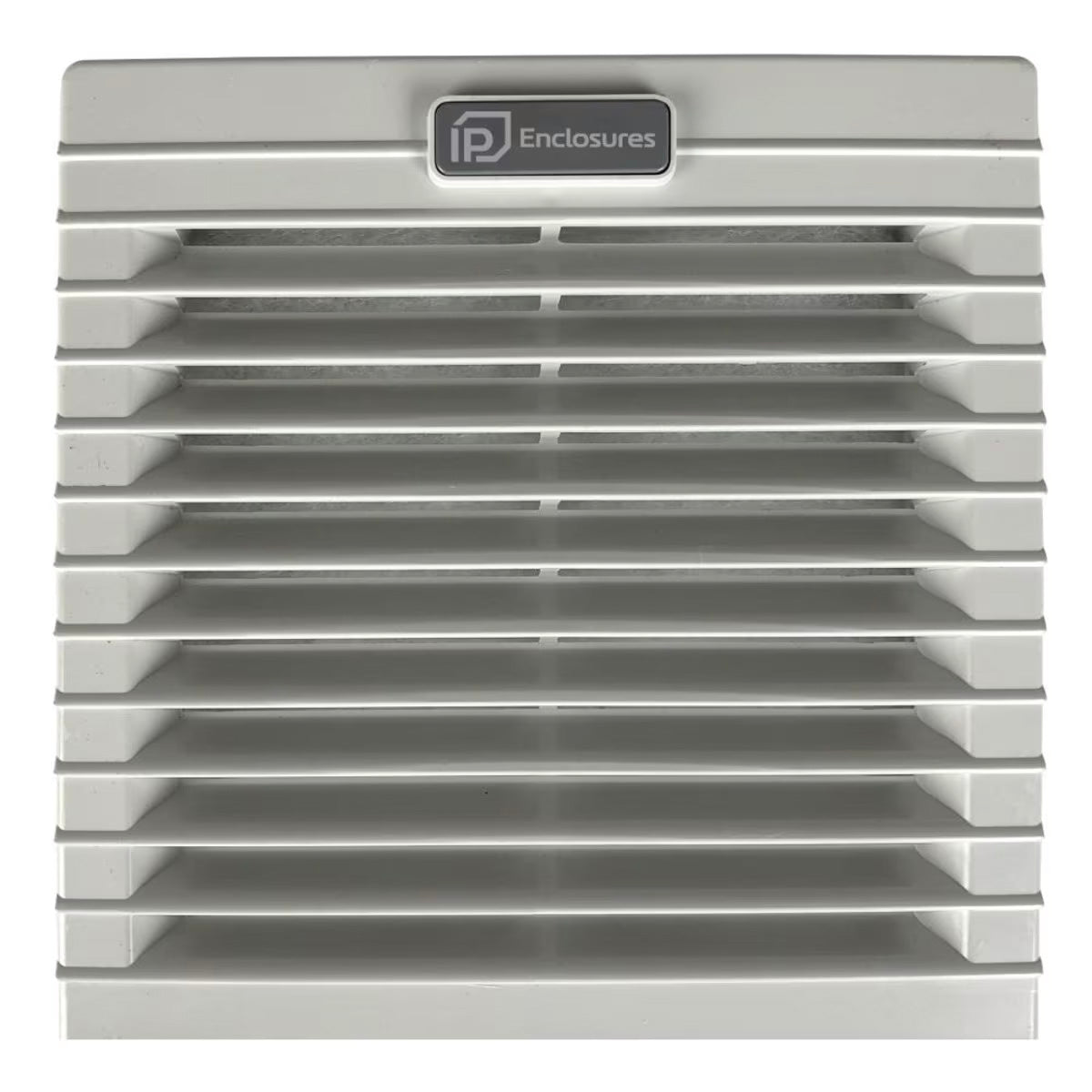

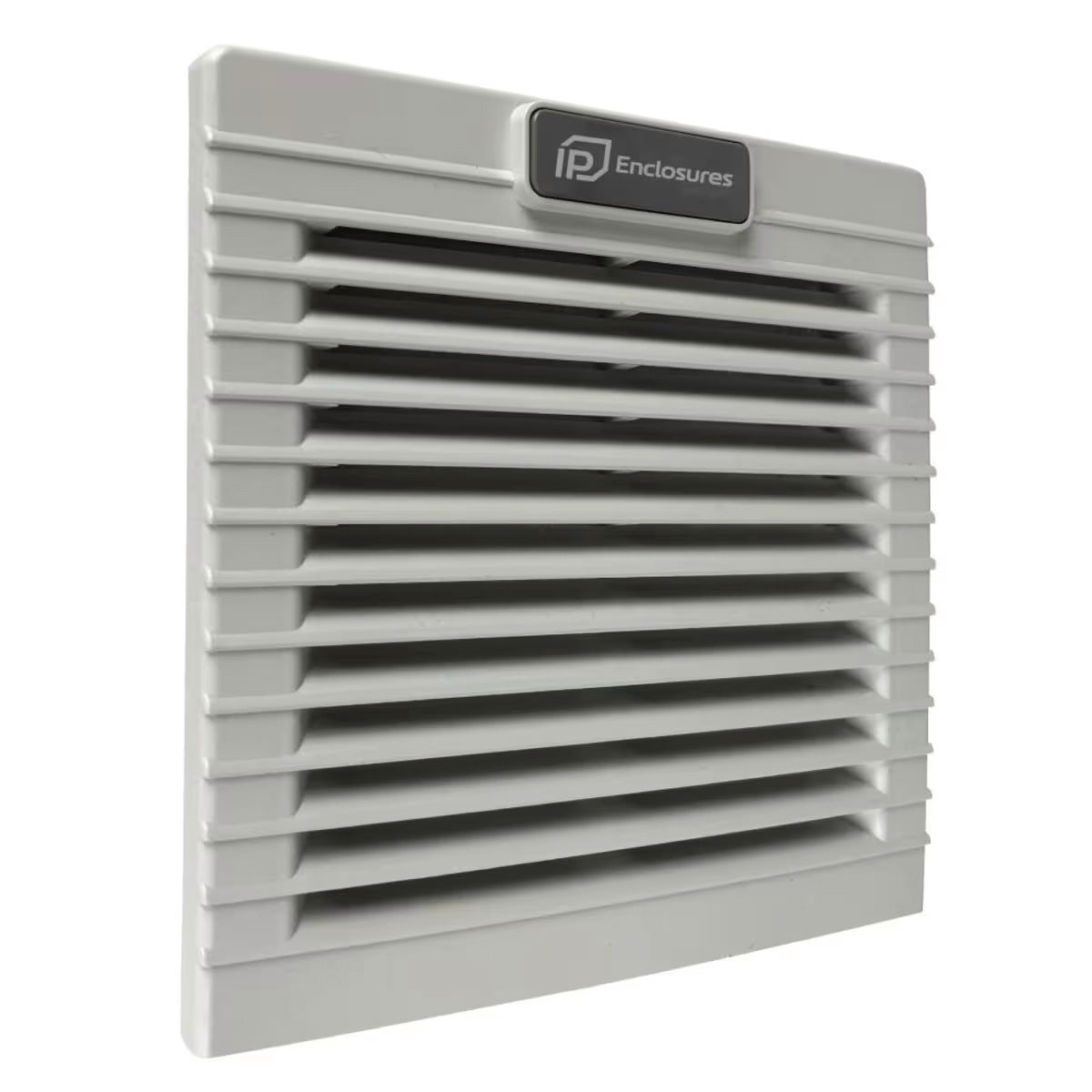

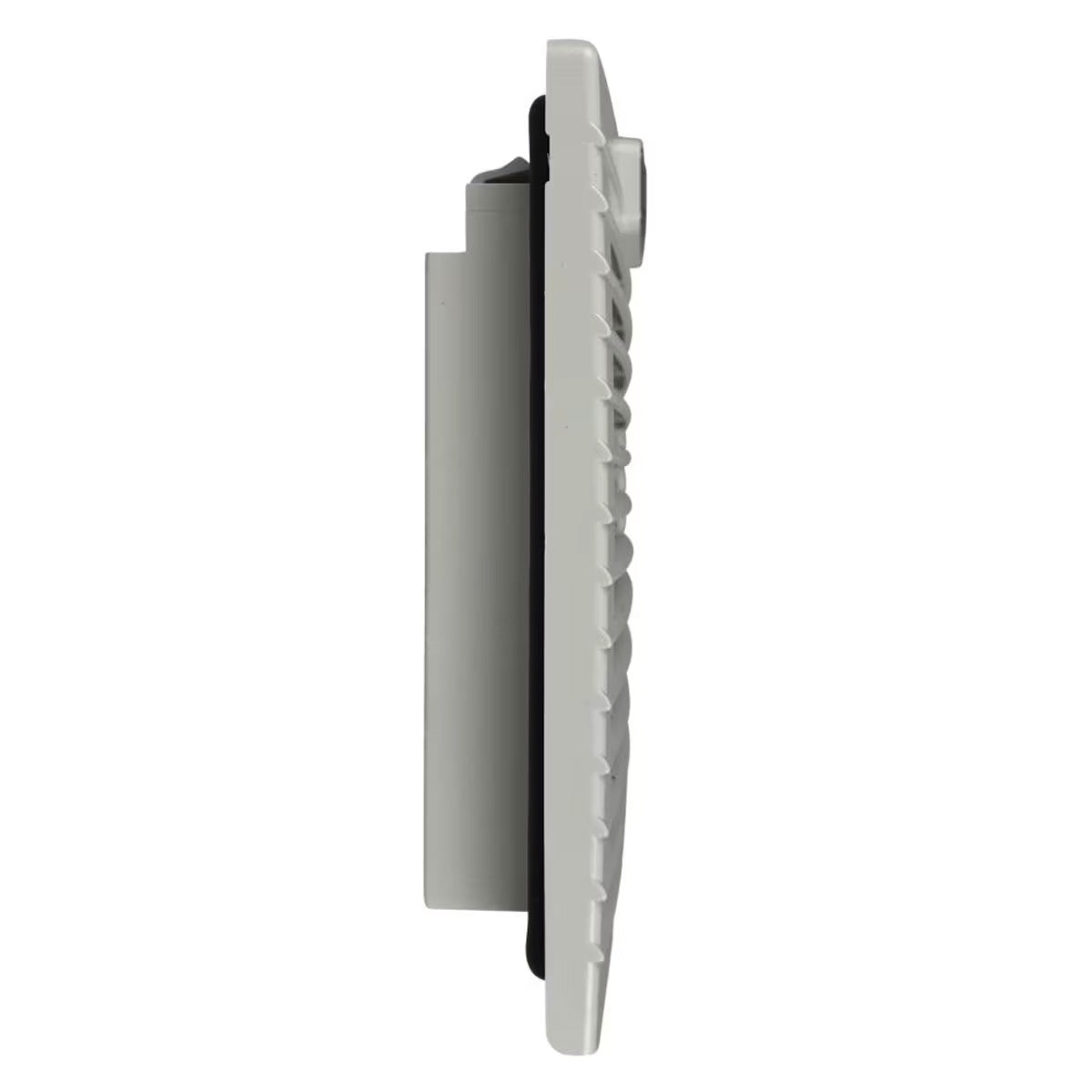

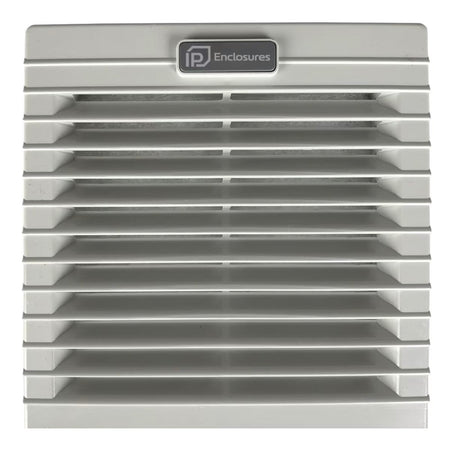

Filter Vent 325 x 325, UV Rated, IP55 High Efficiency (G4)
High quality Italian vent filter grille for electrical enclosures. Designed for easy front access maintenance for fast filter mat cleaning and replacement.
G4 Filter Mat included.
| Features | Unit | IP-V5000-UV |
|---|---|---|
| Air flow rate (free blow) | m³/h | – |
| Flow rate with exit filter | m³/h | – |
| Power supply | V/Hz | – |
| Dimensions HxLxP | mm | 325x325x42 |
| Power consumption | W | – |
| Current consumption | A | – |
| Overcurrent consumption | – | – |
| Electric connection | – | – |
| Duty cycle | – | – |
| Operating temperature | °C | – 10 / +70 (+14 / +158) |
| Protection degree/class | – | IP55 |
| Noise level | dB(A) | – |
| Flow direction | – | – |
| Bearing | – | – |
| Filter mat (Eurovent) | – | G4 |
| Service life (at 40°C) | hr | – |
| Material | – | Polycarbonate Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | – | foam seal gasket |
| Weight (with packaging) | kg | 0.90 (1.04) |
| Package dimensions | mm | 340x340x50 |
| Montaggio | – | fast clip-on |
| Cut-Out dimensions | mm | 291×291 |
| Conformity/Approvals | – | CE |
TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
