Home » Enclosures» Cooling & Heating» Filter Vent 325 x 325
Filter Vent 325 x 325 — IP Enclosures

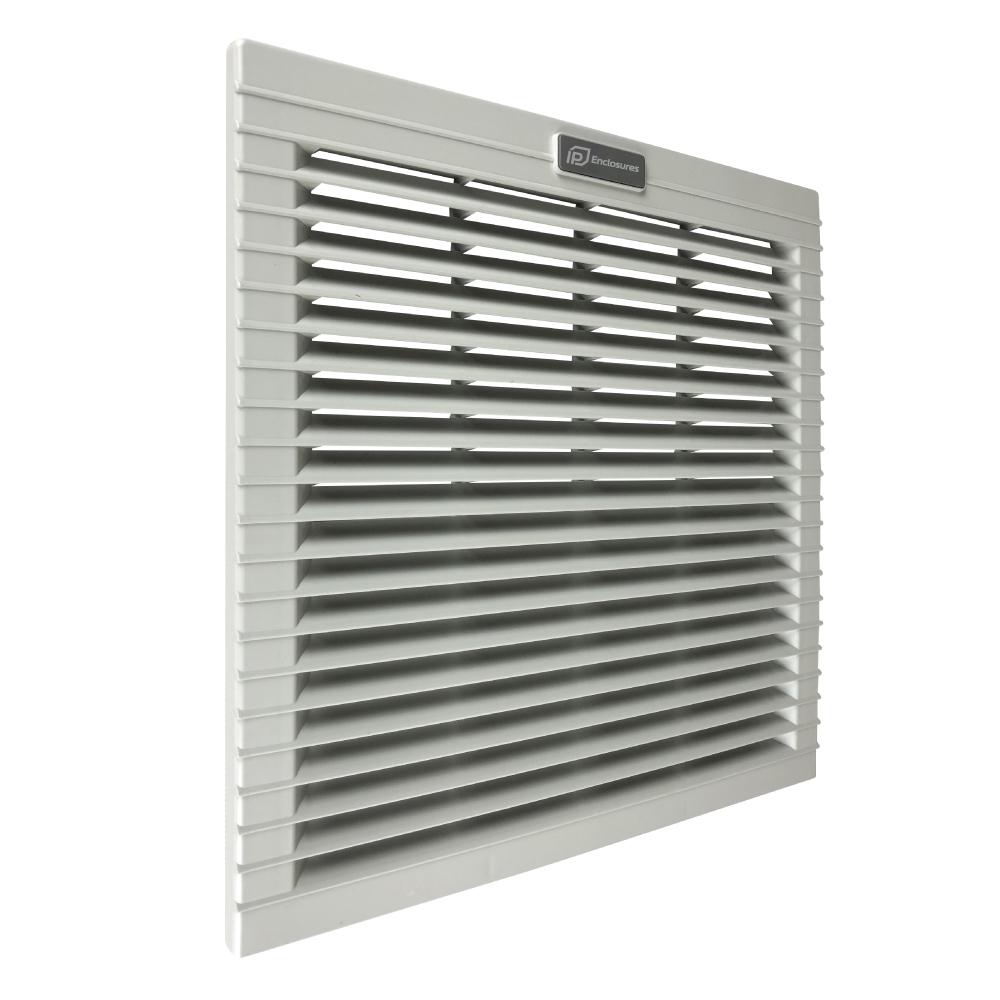

IP-V5000 - image 2
IP-V5000 - image 3
Filter Vent 325 x 325 — IP Enclosures
IP-V5000 - image 2
IP-V5000 - image 3

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Filter Vent 325 x 325

SKU
$81.26 ex. GST $89.39 inc. GST
Restocking
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
0 in stock
VIC WarehouseEpping, VIC 3076
0 in stock
Updated 4 minutes ago
Shipping & pickup →
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 325
  • Width (mm) 325
  • Colour Grey
  • IP Rating IP54

Standards & certifications

IP54Dust-protected · splashing
Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG

Filter Vent 325 x 325

High quality Italian vent filter grille for electrical enclosures. Designed for easy front access maintenance for fast filter mat cleaning and replacement.

G3 Filter Mat Included.

Features Unit IP-V5000
Air flow rate (free blow) m³/h –
Flow rate with exit filter m³/h –
Power supply V/Hz –
Dimensions HxLxP mm 325x325x42
Power consumption W –
Current consumption A –
Overcurrent consumption – –
Electric connection – –
Duty cycle – –
Operating temperature °C – 10 / +70 (+14 / +158)
Protection degree/class – IP54
Noise level dB(A) –
Flow direction – –
Bearing – –
Filter mat (Eurovent) – G3
Service life (at 40°C) hr –
Material – ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket – foam seal gasket
Weight (with packaging) kg 0.90 (1.04)
Package dimensions mm 340x340x50
Montaggio – fast clip-on
Cut-Out dimensions mm 291×291
Conformity/Approvals – CE

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
