Filter Vent 250 x 250, UV Rated, IP55 High Efficiency (G4)
Regular price
$203.41
ex. GST
$223.75
inc. GST
In stock
26 in stock
across 3
warehouses
Stock on hand
NSW WarehouseAuburn, NSW 2144
1 in stock
QLD WarehouseBells Creek, QLD 4551
24 in stock
VIC WarehouseEpping, VIC 3076
1 in stock
Updated
just now
Shipping & pickup →
Free Shipping
Ask an expert!
- IP Rating
Standards & certifications
IP55Dust-protected · water jets

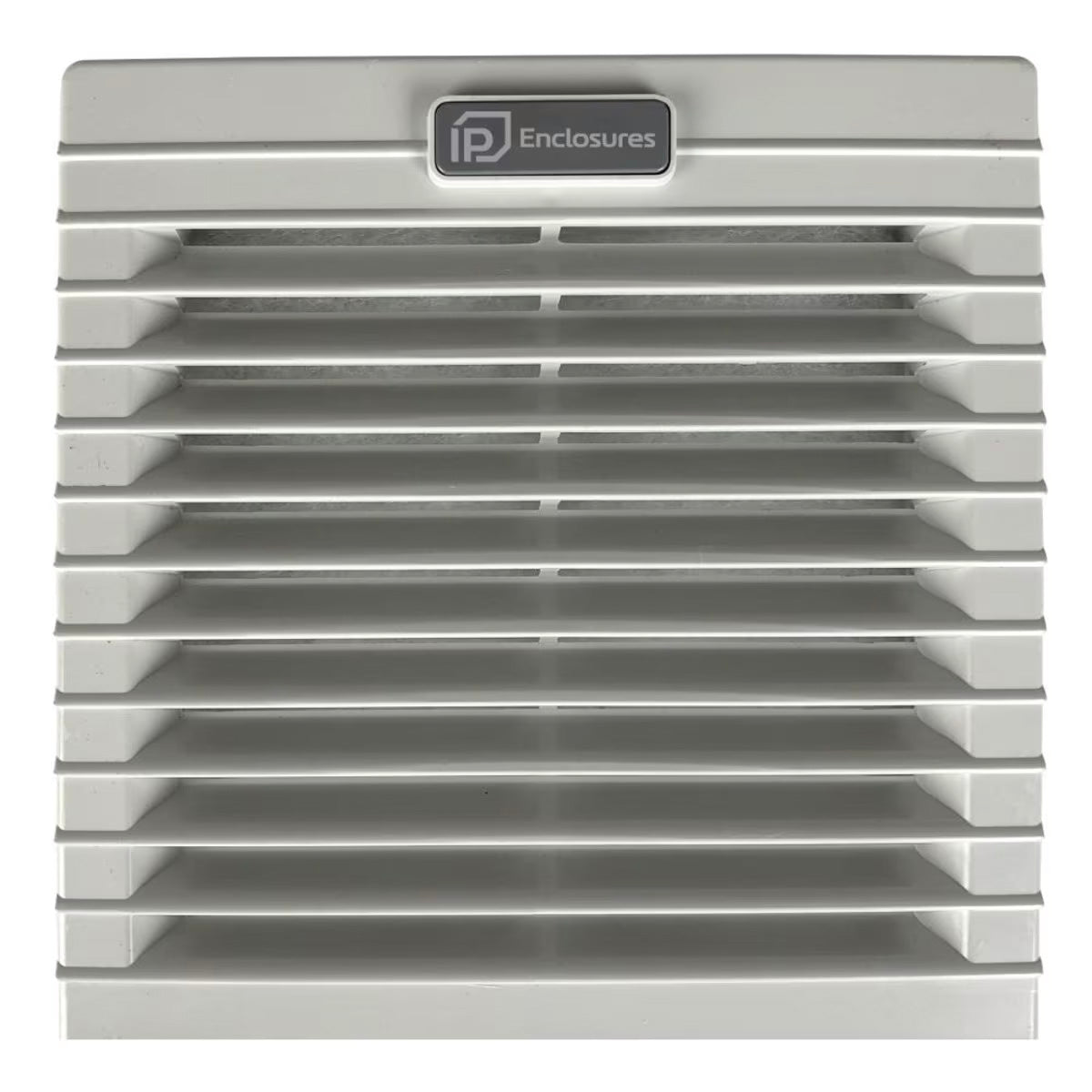

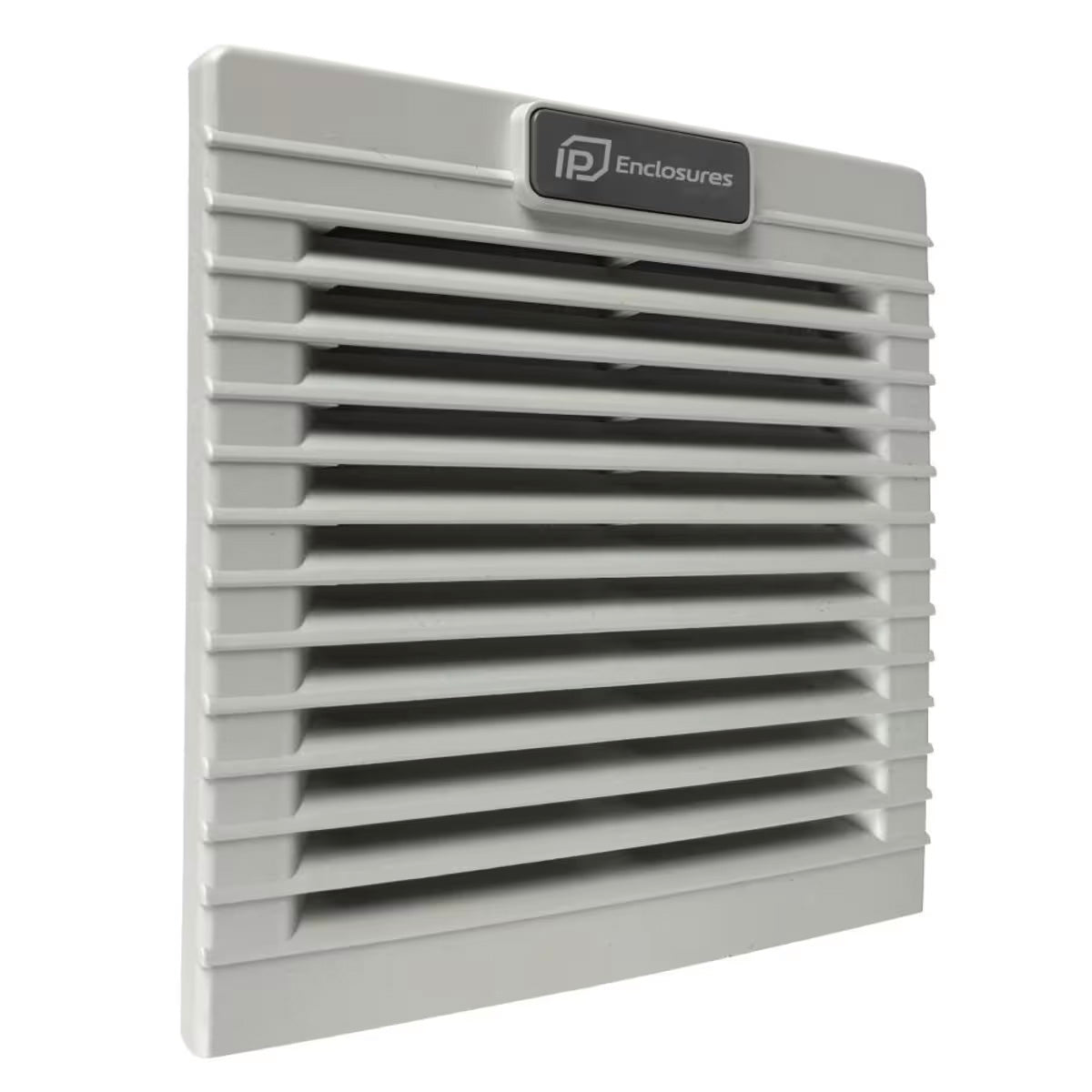

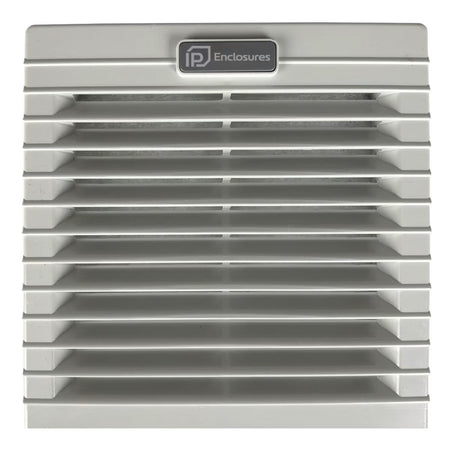

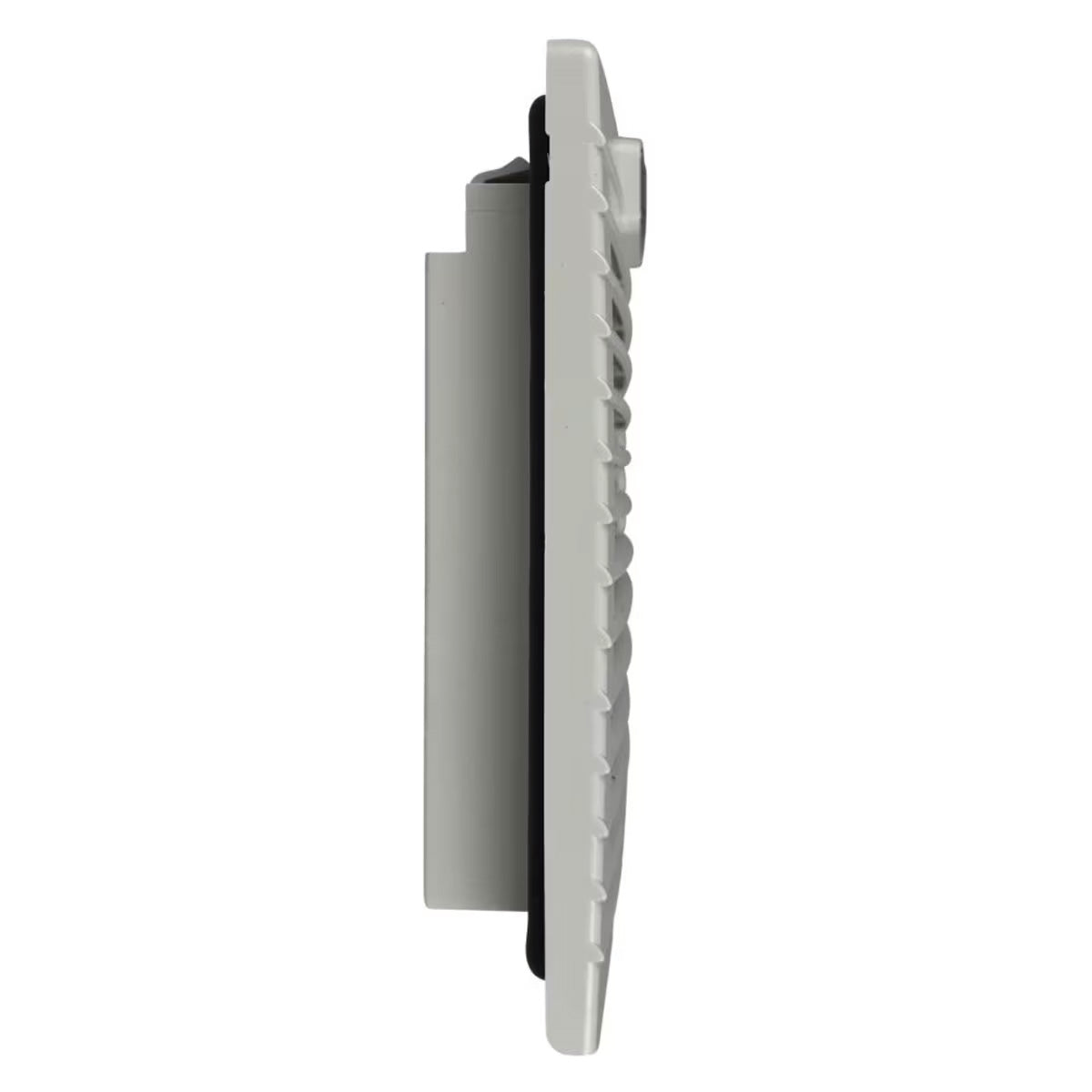

Filter Vent 250 x 250, UV Rated, IP55 High Efficiency (G4)
High quality Italian vent filter grille for electrical enclosures. Designed for easy front access maintenance for fast filter mat cleaning and replacement.
G4 Filter Mat included.
| Features | Unit | IP-V4000-UV |
|---|---|---|
| Air flow rate (free blow) | m³/h | - |
| Flow rate with exit filter | m³/h | - |
| Power supply | V/Hz | - |
| Dimensions HxLxP | mm | 250x250x38 |
| Power consumption | W | - |
| Current consumption | A | - |
| Overcurrent consumption | - | - |
| Electric connection | - | - |
| Duty cycle | - | - |
| Operating temperature | °C | - 10 / +70 (+14 / +158) |
| Protection degree/class | - | IP55 |
| Noise level | dB(A) | - |
| Flow direction | - | - |
| Bearing | - | - |
| Filter mat (Eurovent) | - | G4 |
| Service life (at 40°C) | hr | - |
| Material | - | Polycarbonate Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | - | foam seal gasket |
| Weight (with packaging) | kg | 0.52(0.62) |
| Package dimensions | mm | 270x270x45 |
| Montaggio | - | fast clip-on |
| Cut-Out dimensions | mm | 224x224 |
| Conformity/Approvals | - | CE |
Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.
TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
