Filter Vent 250 x 250 — IP Enclosures
IP-V4000 - image 2
IP-V4000 - image 3
Filter Vent 250 x 250 — IP Enclosures
IP-V4000 - image 2
IP-V4000 - image 3

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Filter Vent 250 x 250

SKU
$58.95 ex. GST $64.85 inc. GST
In stock
106 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 250
  • Width (mm) 250
  • Colour Grey
  • IP Rating IP54

Standards & certifications

IP54Dust-protected · splashing
Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG

Filter Vent 250 x 250

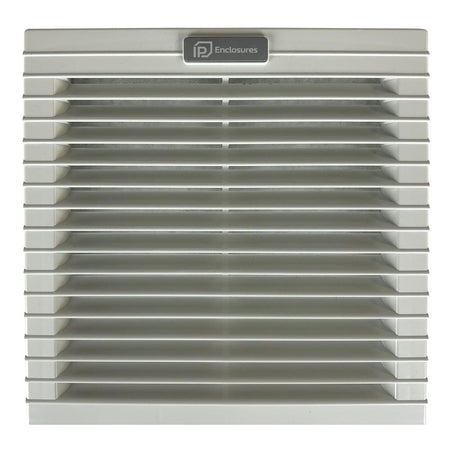

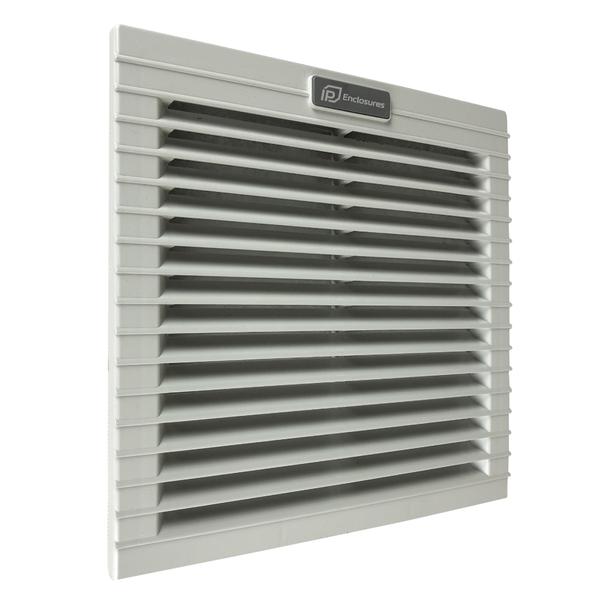

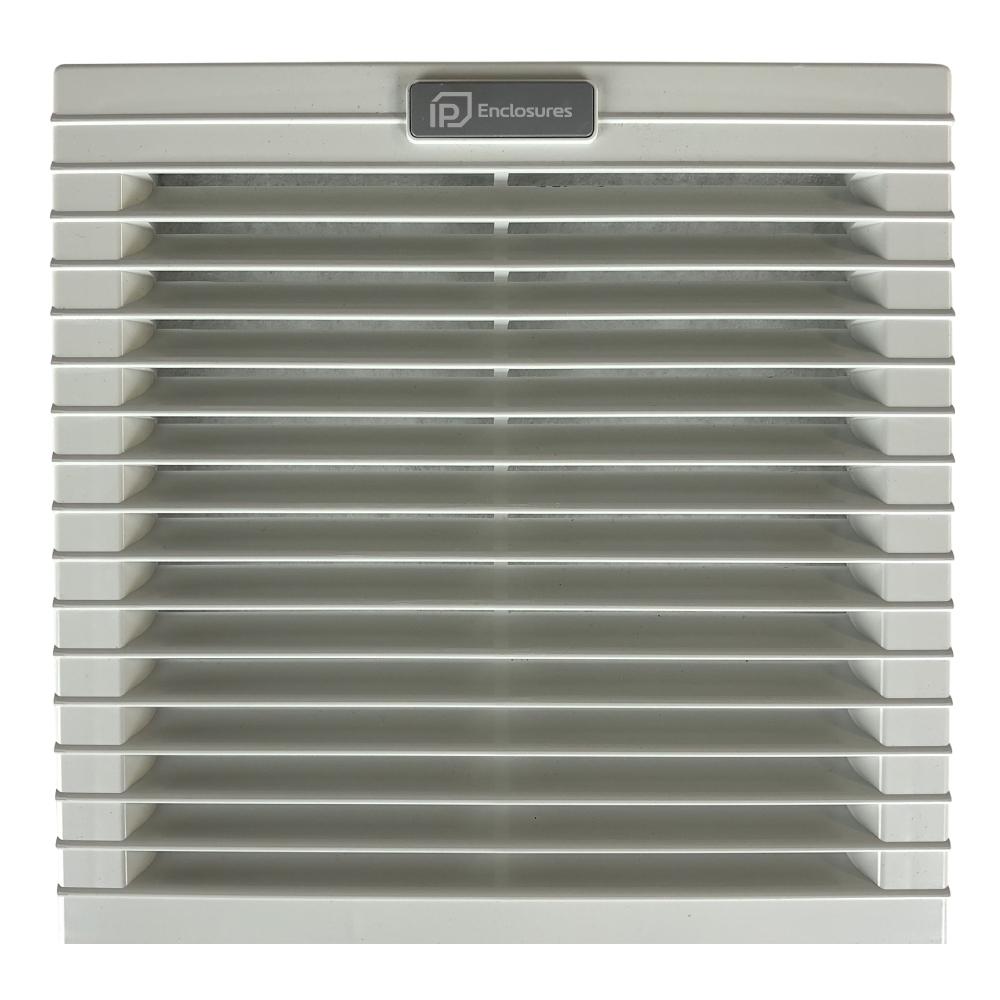

High quality Italian vent filter grille for electrical enclosures. Designed for easy front access maintenance for fast filter mat cleaning and replacement.

G3 Filter Mat Included.

Features Unit IP-V4000
Air flow rate (free blow) m³/h -
Flow rate with exit filter m³/h -
Power supply V/Hz -
Dimensions HxLxP mm 250x250x38
Power consumption W -
Current consumption A -
Overcurrent consumption - -
Electric connection - -
Duty cycle - -
Operating temperature °C - 10 / +70 (+14 / +158)
Protection degree/class - IP54
Noise level dB(A) -
Flow direction - -
Bearing - -
Filter mat (Eurovent) - G3
Service life (at 40°C) hr -
Material - ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket - foam seal gasket
Weight (with packaging) kg 0.52(0.62)
Package dimensions mm 270x270x45
Montaggio - fast clip-on
Cut-Out dimensions mm 224x224
Conformity/Approvals - CE



Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
