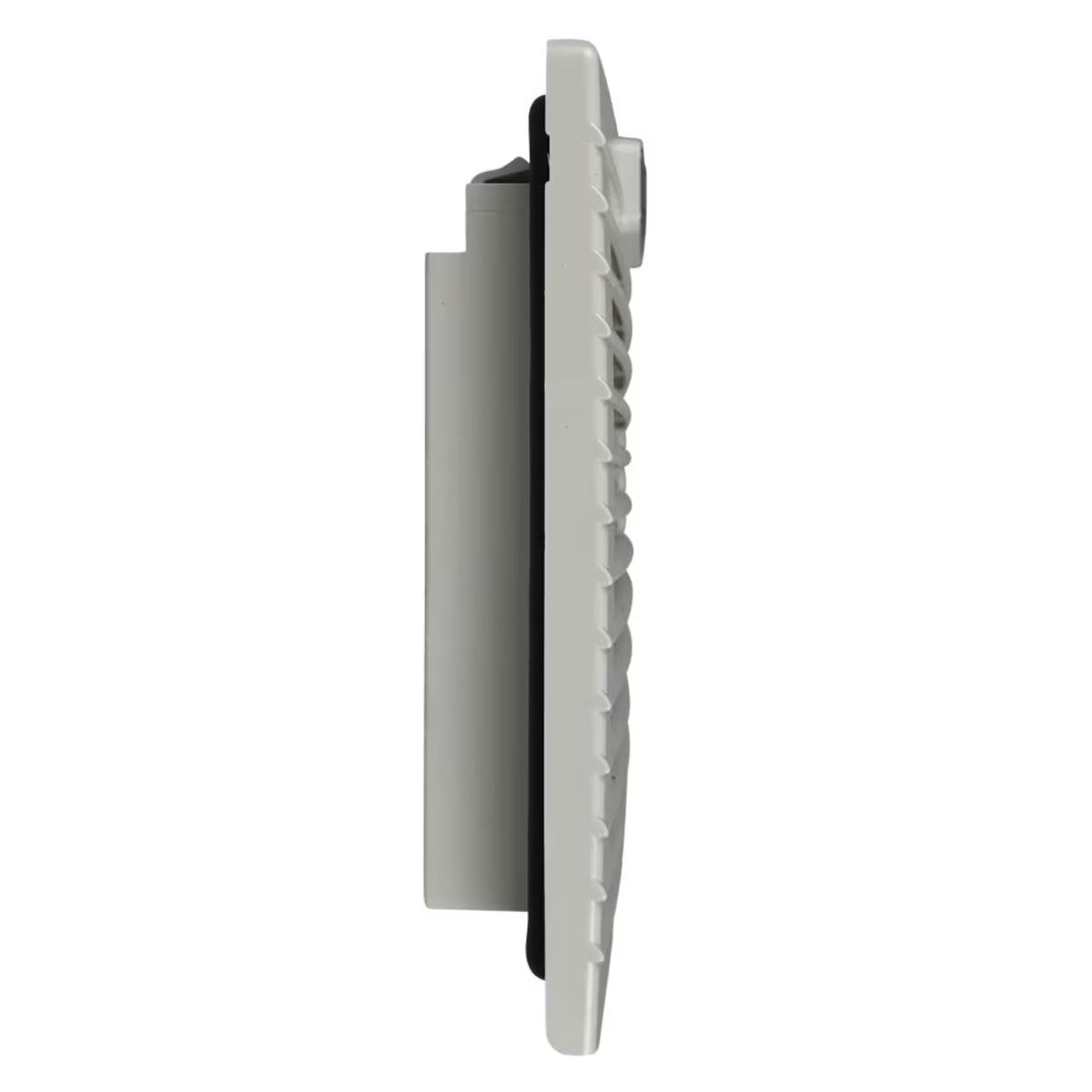

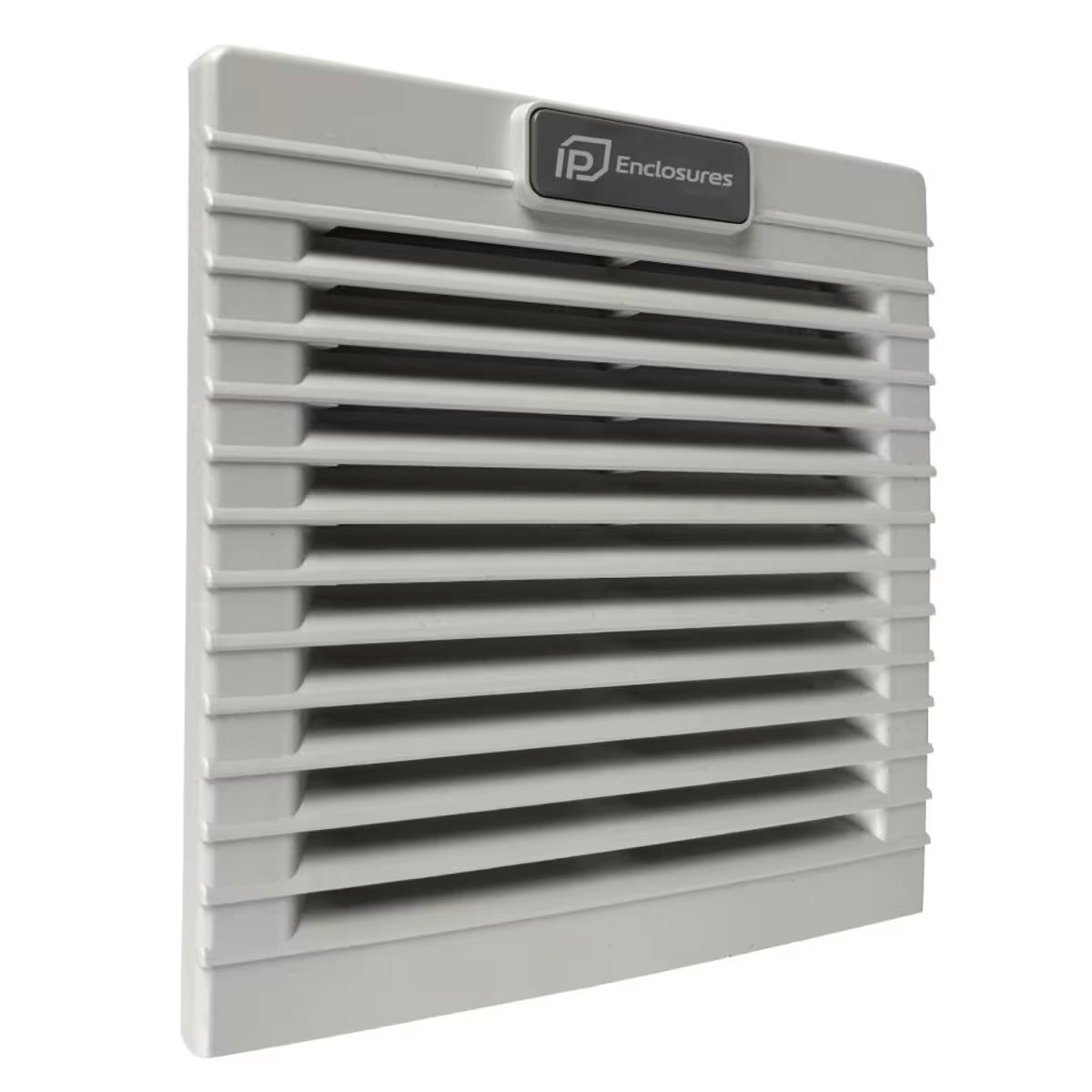

Filter Vent 204 x 204, UV Rated, IP55 High Efficiency (G4)
High quality Italian vent filter grille for electrical enclosures. Designed for easy front access maintenance for fast filter mat cleaning and replacement.
G4 Filter Mat included.
| Features | Unit | IP-V3000-UV |
|---|---|---|
| Air flow rate (free blow) | m³/h | – |
| Flow rate with exit filter | m³/h | – |
| Power supply | V/Hz | – |
| Dimensions HxLxP | mm | 204x204x37 |
| Power consumption | W | – |
| Current consumption | A | – |
| Overcurrent consumption | – | – |
| Electric connection | – | – |
| Duty cycle | – | – |
| Operating temperature | °C | – 10 / +70 (+14 / +158) |
| Protection degree/class | – | IP55 |
| Noise level | dB(A) | – |
| Flow direction | – | – |
| Bearing | – | – |
| Filter mat (Eurovent) | – | G4 |
| Service life (at 40°C) | hr | – |
| Material | – | Polycarbonate Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | – | foam seal gasket |
| Weight (with packaging) | kg | 0.32(0.42) |
| Package dimensions | mm | 220x220x43 |
| Montaggio | – | fast clip-on |
| Cut-Out dimensions | mm | 177x177 |
| Conformity/Approvals | – | CE |
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
