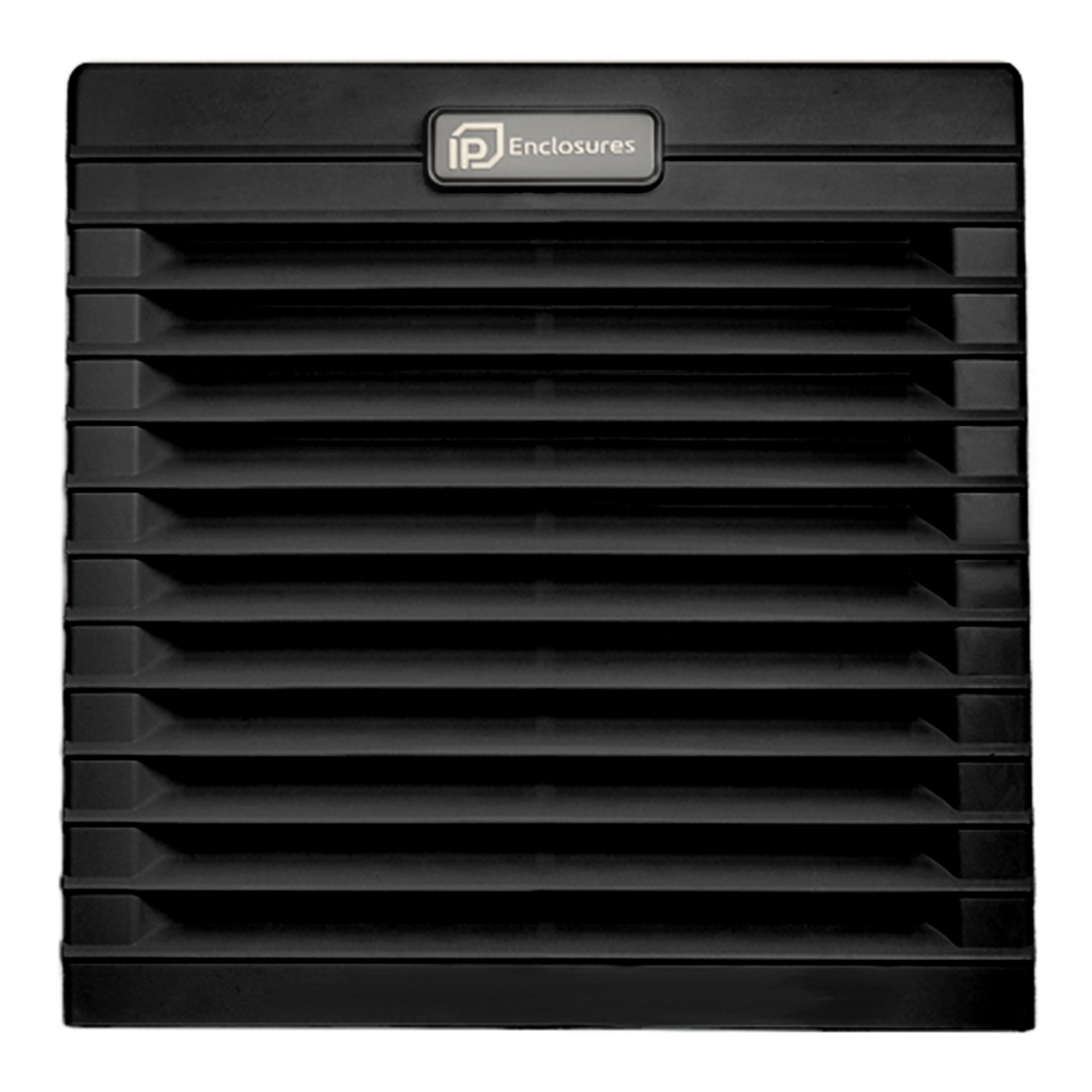

Black Filter Vent 150 x 150

Specifications

• Type Vent
• Height (mm) 150
• Width (mm) 150
• Material ABS
• Colour Black
• IP Rating IP54

Standards & Conformities

Standards & certifications

IP54Dust-protected · splashing

Documents

Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG

Full Description

Filter Vent 150 x 150

High quality Italian vent filter grille for electrical enclosures. Designed for easy front access maintenance for fast filter mat cleaning and replacement.

G3 Filter Mat Included.

Features Unit IP-V2000-BLK Air flow rate (free blow) m³/h – Flow rate with exit filter m³/h – Power supply V/Hz – Dimensions HxLxP mm 150x150x37 Power consumption W – Current consumption A – Overcurrent consumption – – Electric connection – – Duty cycle – – Operating temperature °C – 10 / +70 (+14 / +158) Protection degree/class – IP54 Noise level dB(A) – Flow direction – – Bearing – – Filter mat (Eurovent) – G3 Service life (at 40°C) hr – Material – ABS UL94V-0 Color RAL9005 Wall thickness mm 1.2-2.4 Gasket – foam seal gasket Weight (with packaging) kg 0.18 (0.23) Package dimensions mm 165x165x45 Montaggio – fast clip-on Cut-Out dimensions mm 124×124 Conformity/Approvals – CE
