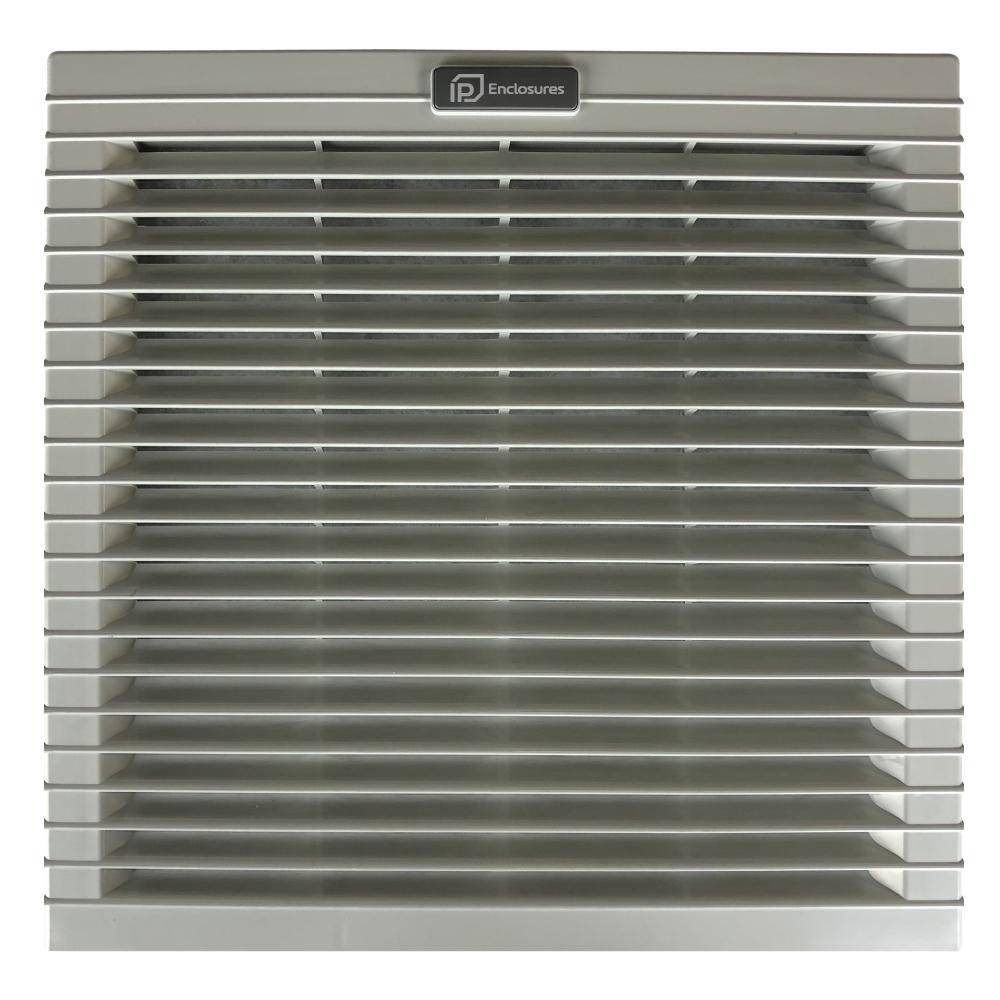

Filter Fan 325 x 325 550m3/hr 230V

Specifications

• Height (mm) 325
• Width (mm) 325
• Material ABS
• Colour Grey
• IP Rating IP54
• Voltage 230V
• Size 550m3/h

Standards & Conformities

Standards & certifications

IP54Dust-protected · splashing

Documents

Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG

Full Description

Filter Fan 325 x 325 550m3/hr 230V

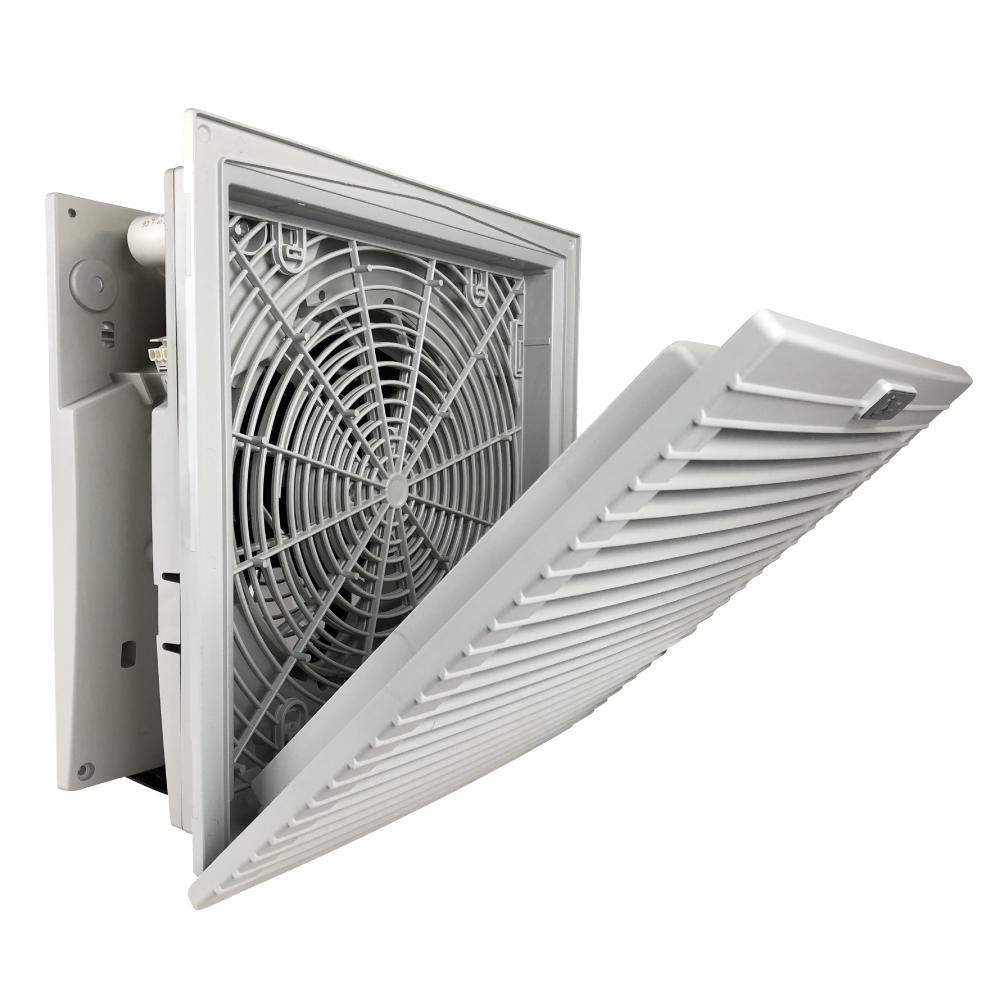

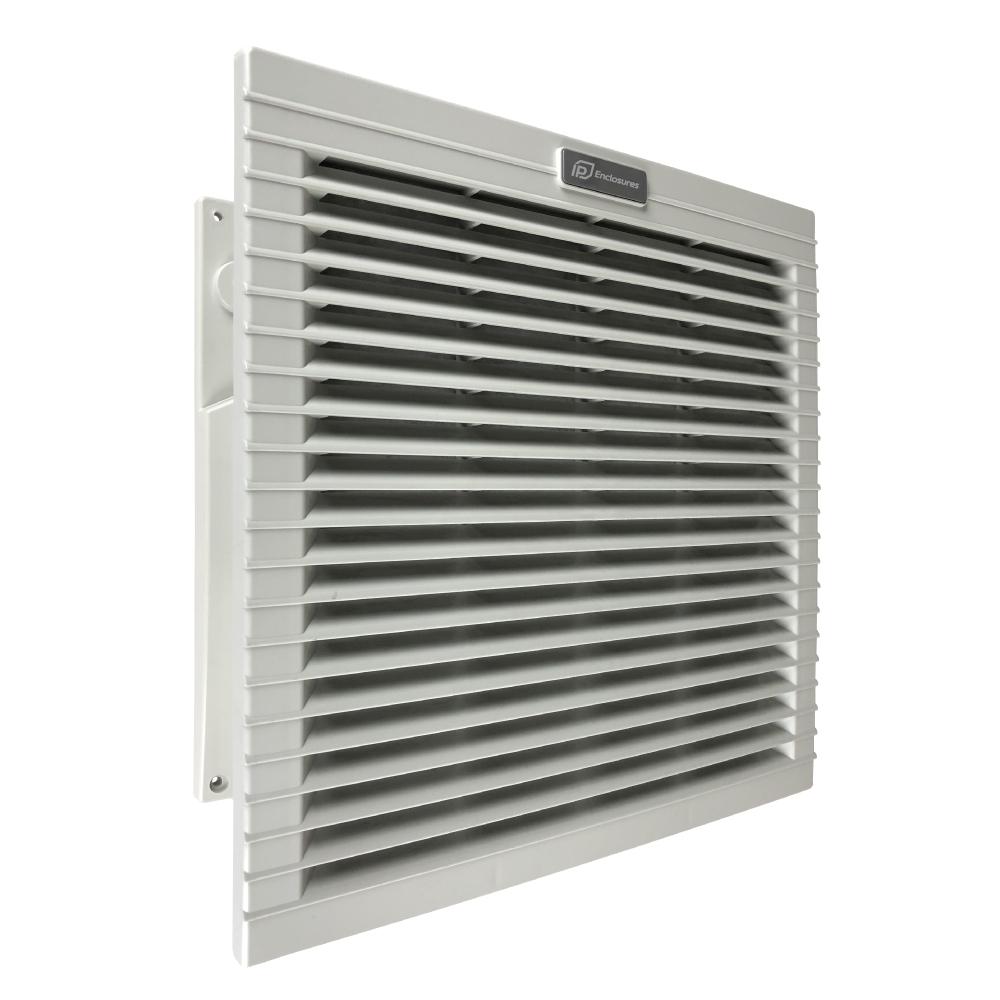

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

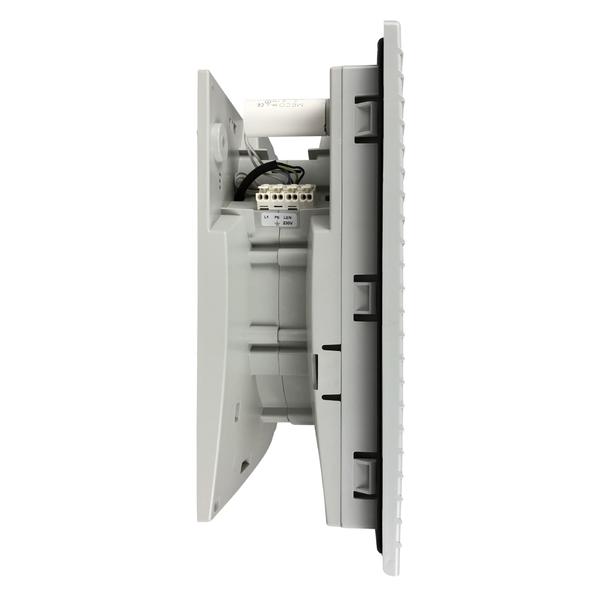

Features Unit IP-V5400 Air flow rate (free blow) m³/h 550 (620) Flow rate with exit filter m³/h 405 (450) Power supply V/Hz 230 / 50-60 Dimensions HxWxD mm 325x325x140 Power consumption W 70 (90) Current consumption A 0.40 (0.38) Overcurrent consumption – thermal Electric connection – 3-poles spring terminals Duty cycle – 100% Operating temperature °C (°F) – 10 / +70 (+14 / +158) Protection degree/class – IP54/Class I Noise level dB(A) 65 (68) Flow direction – reversible: default factory setting outside-in Bearing – ball Filter mat (Eurovent) – G3 Service life (at 40°C) hr 50 000 Material – ABS UL94V-0 Color RAL7035 Wall thickness mm 1.2-2.4 Gasket – foam seal gasket Weight (with packaging) kg 3.00 (3.25) Package dimensions mm 340x340x180 Mounting – fast clip-on Cut-Out dimensions mm 291×291 Conformity/Approvals – CE

Warranty

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
