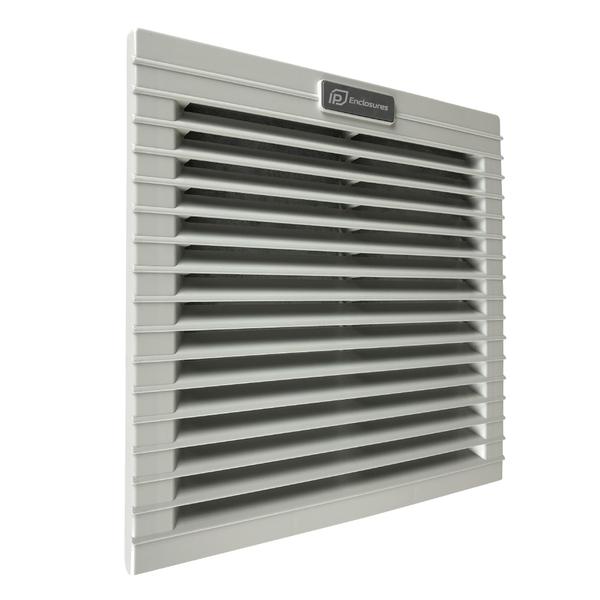

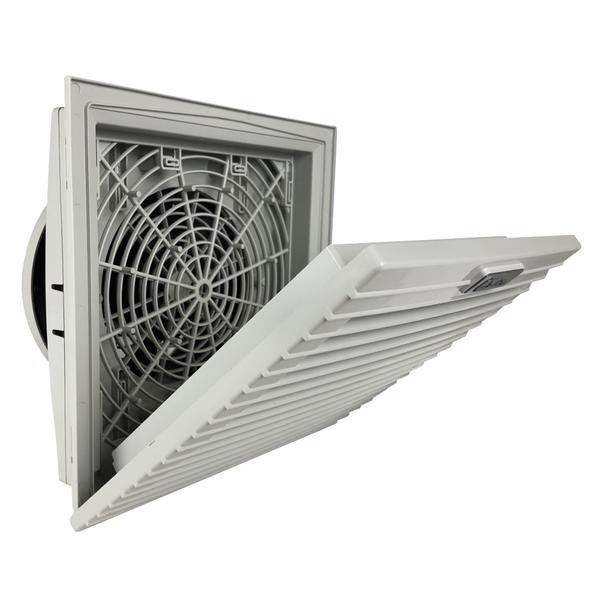

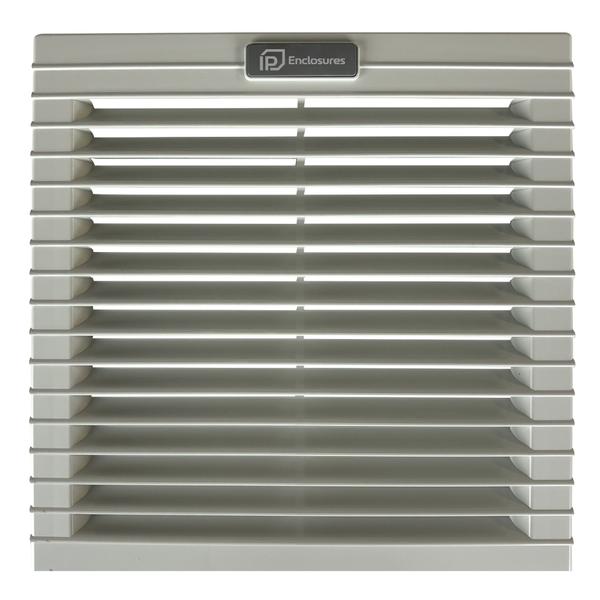

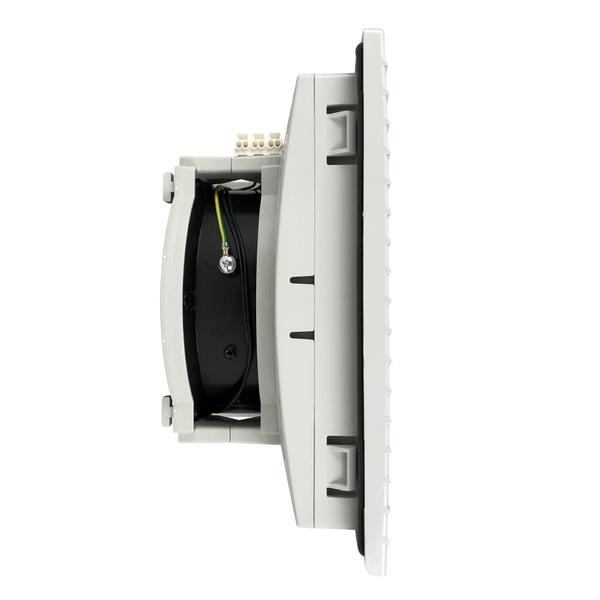

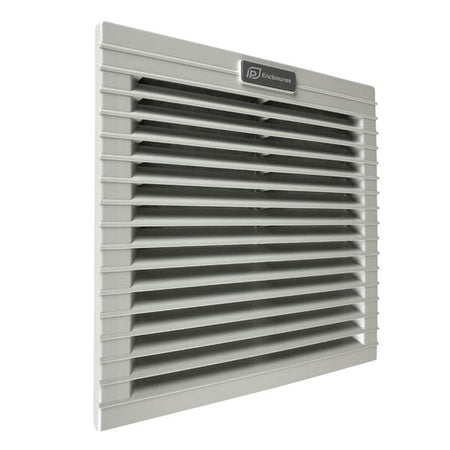

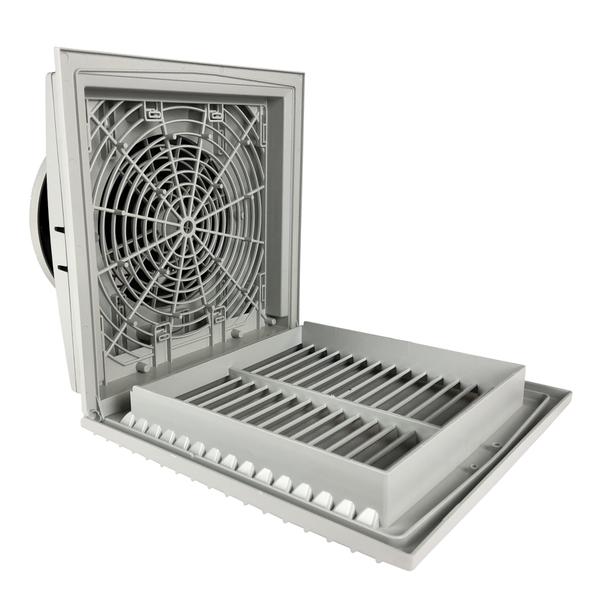

Filter Fan 250 x 250 255m3/hr 24VDC

Specifications

• Type Fan
• Height (mm) 250
• Width (mm) 250
• Material ABS
• Colour Grey
• IP Rating IP54
• Voltage 24V
• Size 255m3/h

Standards & Conformities

Standards & certifications

IP54Dust-protected · splashing

Documents

Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG

Full Description

Filter Fan 250 x 250 255m3/hr 24VDC

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

Features Unit IP-V4324 Air flow rate (free blow) m³/h 255 Flow rate with exit filter m³/h 202 Power supply V/Hz DC24 Dimensions HxWxD mm 250x250x128 Power consumption W 33 Current consumption A 0.68 Overcurrent consumption – thermal Electric connection – 2-poles spring terminals Duty cycle – 100% Operating temperature °C(°F) – 10 / +70 (+14 / +158) Protection degree/class – IP54/Class I Noise level dB(A) 61 Flow direction – reversible: default factory setting outside-in Bearing – ball Filter mat (Eurovent) – G3 Service life (at 40°C) hr 50 000 Material – ABS UL94V-0 Color RAL7035 Wall thickness mm 1.2-2.4 Gasket – foam seal gasket Weight (with packaging) kg 1.73 Package dimensions mm 270x270x165 Mounting – fast clip-on Cut-Out dimensions mm 224×224 Conformity/Approvals – CE

Warranty

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
