FIBOX ARCA TRANSPARENT ELECTRICAL ENCLOSURE 600H x 400W x 210D IP65 WITH SWINGHANDLE

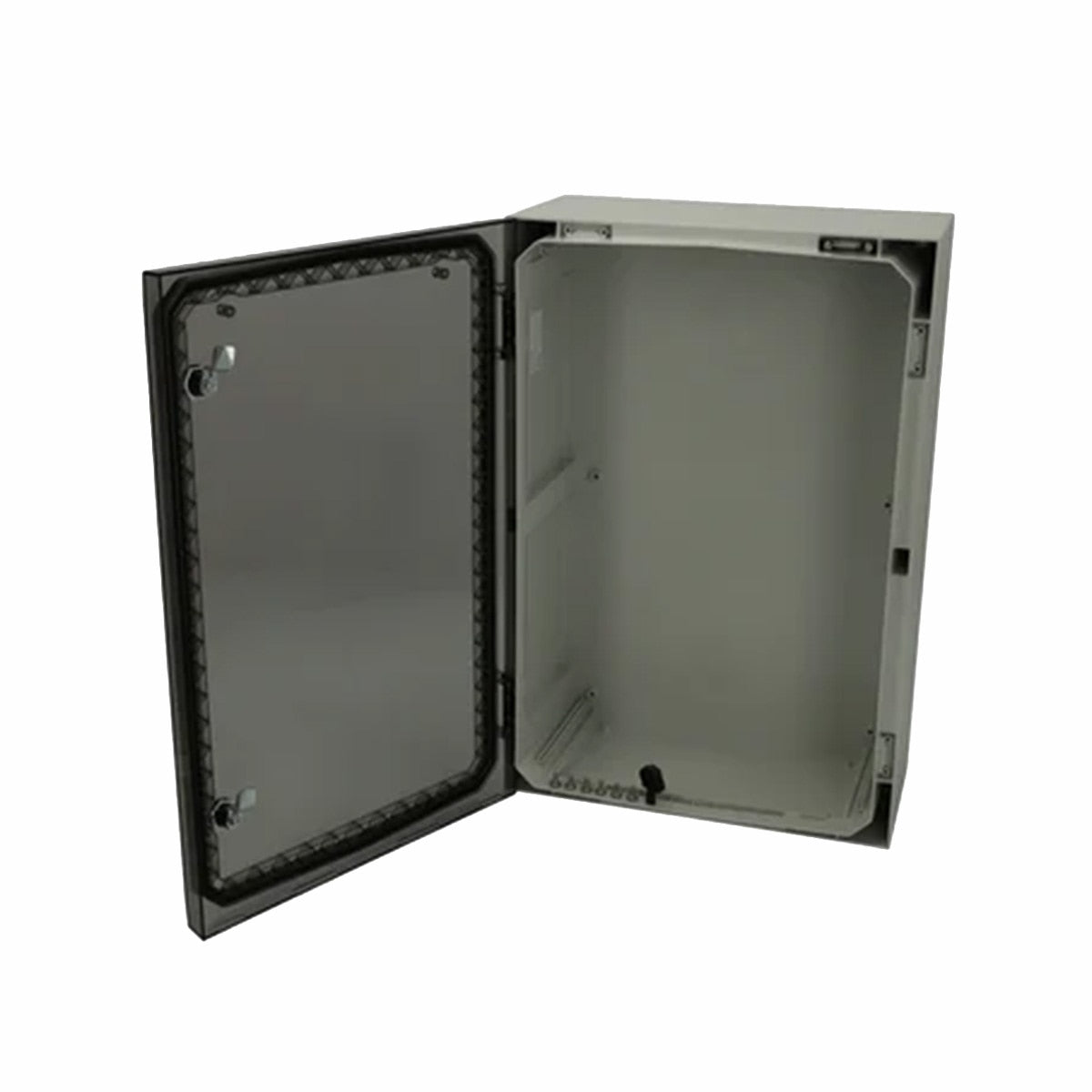

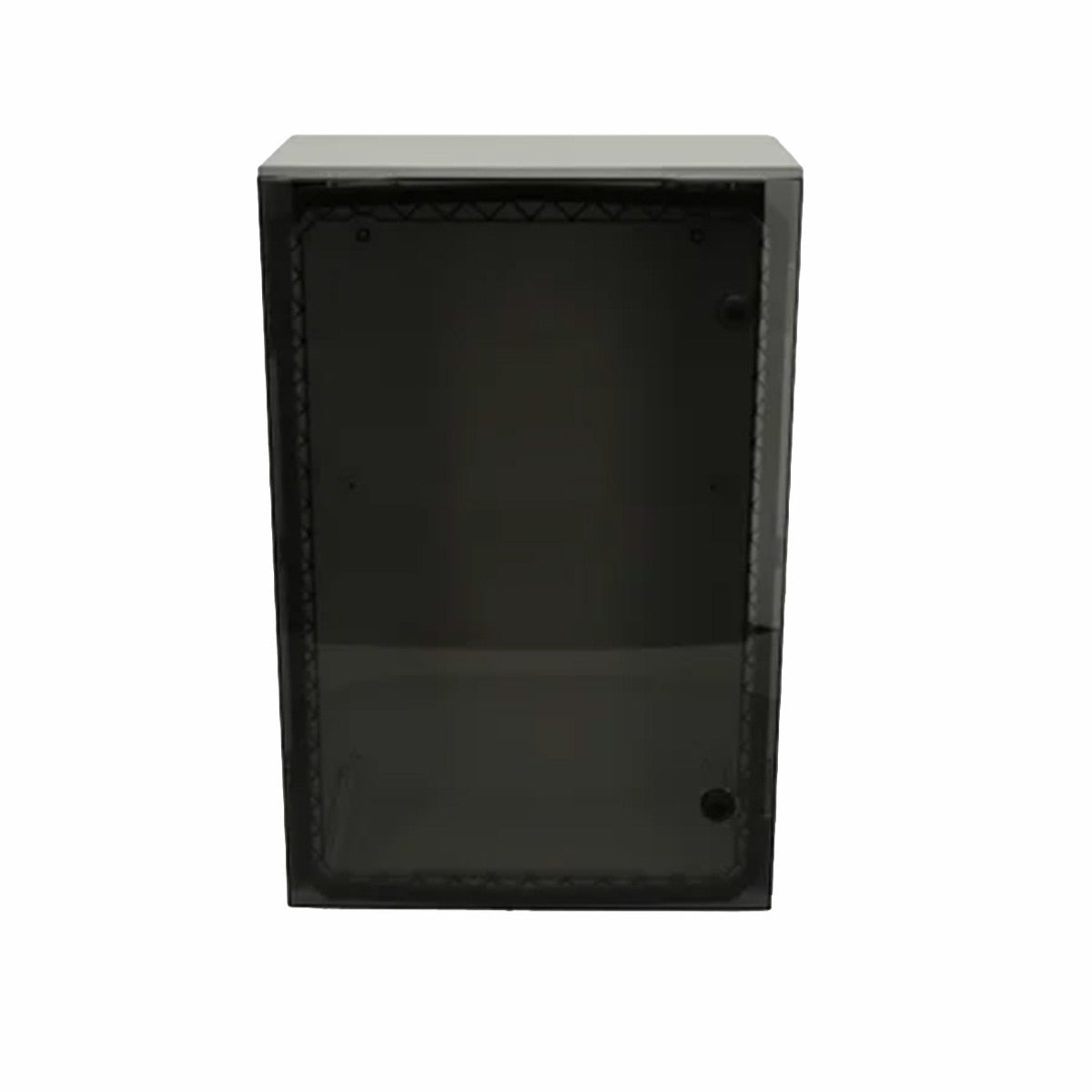

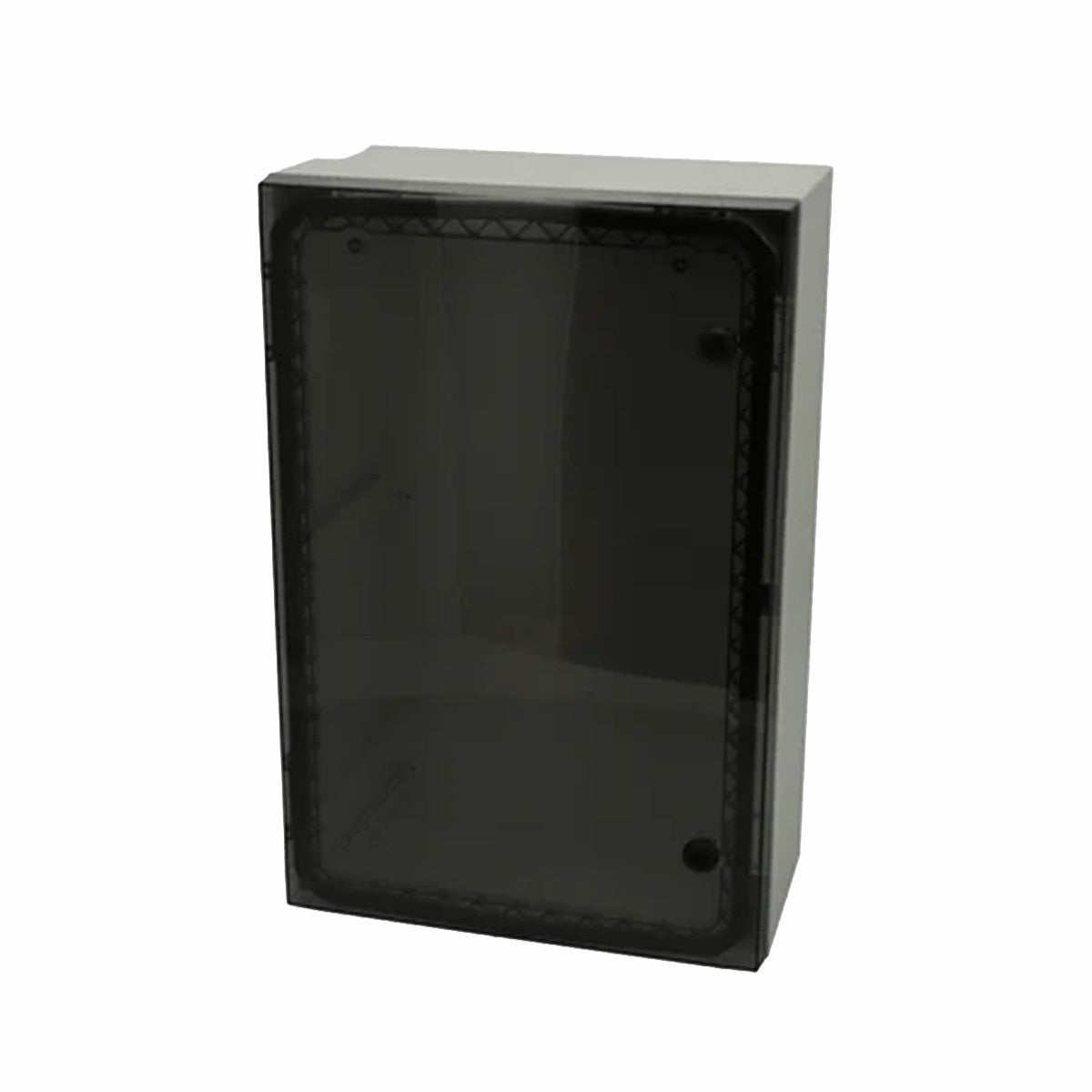

The Fibox ARCA 604021ST (Part No. 8121092N) is a robust polycarbonate electrical cabinet designed for demanding environments. This totally insulated unit features a transparent cover with a swinghandle locking mechanism, hinges on the long side, and no mounting plate. With an ingress protection rating of IP65 and impact resistance of IK09, it offers excellent durability. The enclosure is halogen free, UV resistant to UL 746C standards, and meets flammability rating UL 94 5VA. It is verified through a third party EPD registration, ensuring environmentally conscious manufacturing.
Technical Specifications
| Dimensions (H x W x D) | 600 x 400 x 210 mm (23.62 x 15.75 x 8.27 inch) |
| Material & Colors | Polycarbonate body (RAL 7035), Smoked grey cover, Polyurethane gasket |
| Operating Temperatures | Minus 40 to 80 °C (Minus 40 to 175 °F) |
| Key Ratings | IP65, IK09, Totally Insulated, Halogen Free, UL Type 1, 4, 4X, 12, 13, Glow Wire 960°C |
| Standards | EN 62208:2011, IEC 62208:2011, EN 61439-1:2011, IEC 61439-1:2011, EN 61439-4:2013, IEC 61439-4:2012 |
| Environmental Data | A1-A3 GWP 31.772 kgCO2e (Standard EN15804:2012 + A2:2019), EPD HUB-4865 Verified |
| Packaging | 1 Piece (ETIM: EC000261) |
| Identifiers | EAN 6418074319043, SSTL 3425157, Denmark 8212056365, Sweden 2507073, Norway 2504669 |
