FIBOX ARCA Transparent Electrical Enclosure 500H x 500W x 210D IP66
FIBOX ARCA Transparent Electrical Enclosure 500H x 500W x 210D IP66

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

FIBOX

FIBOX ARCA Transparent Electrical Enclosure 500H x 500W x 210D IP66

SKU
Restocking
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
0 in stock
VIC WarehouseEpping, VIC 3076
0 in stock
Updated 1 minute ago
Shipping & pickup →
$360.66 ex. GST $396.73 inc. GST
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 500
  • Width (mm) 500
  • Depth (mm) 210
  • Material Polycarbonate
  • Colour / Finish Grey
  • IP Rating IP66
  • Door Type Transparent Door
  • Seal Type Polyurethane FIP
  • Lock Type 3mm Double Bit
  • Operating Temperature −40°C to +80°C
  • Standards
    • IEC 62208
    • IEC/EN/AS60529
    • IEC/EN 61439
  • Certifications
    • IP66
    • IK09
    • NEMA 1, 4, 4X, 12, 13


    FIBOX ARCA TRANSPARENT ELECTRICAL ENCLOSURE 500H x 500W x 210D IP66

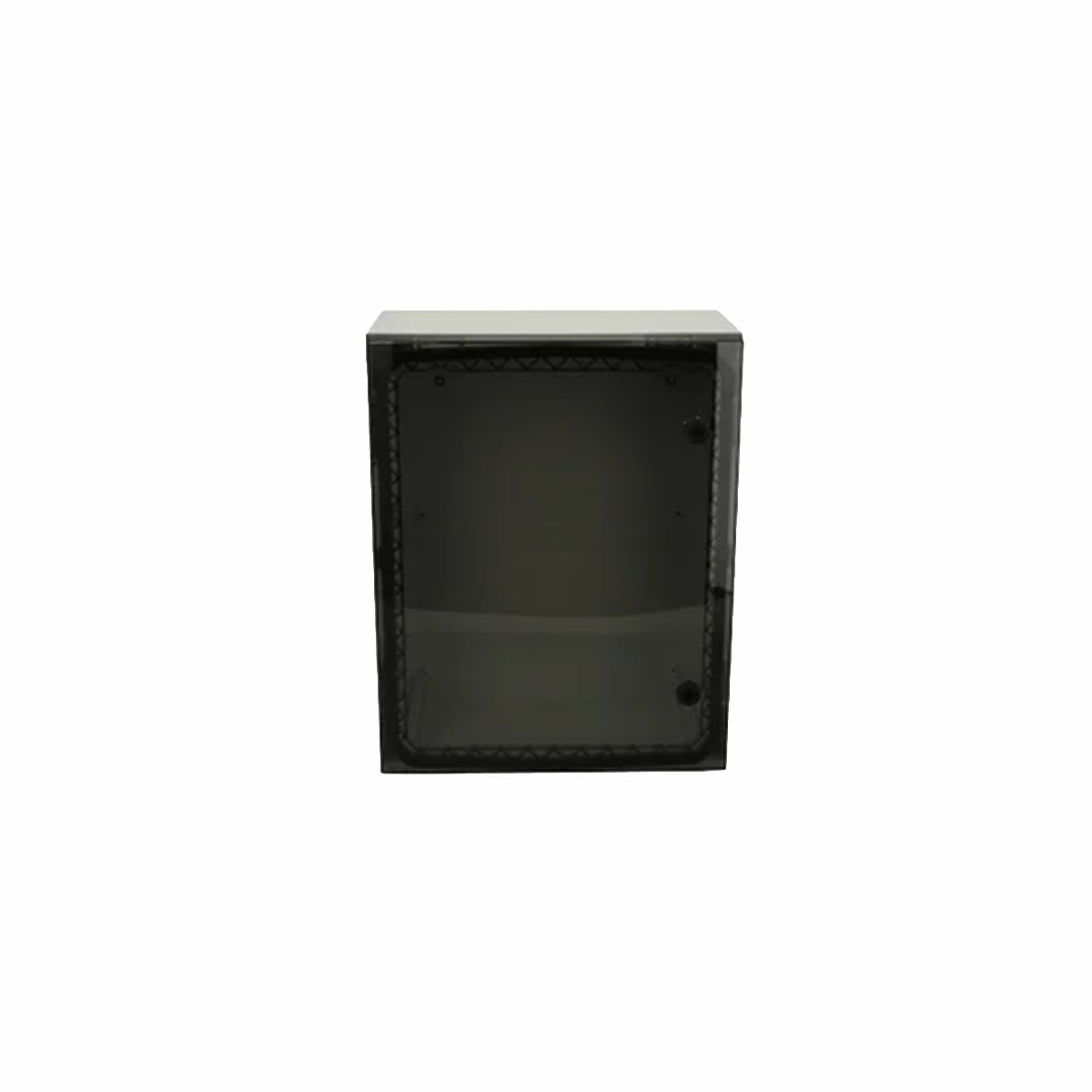

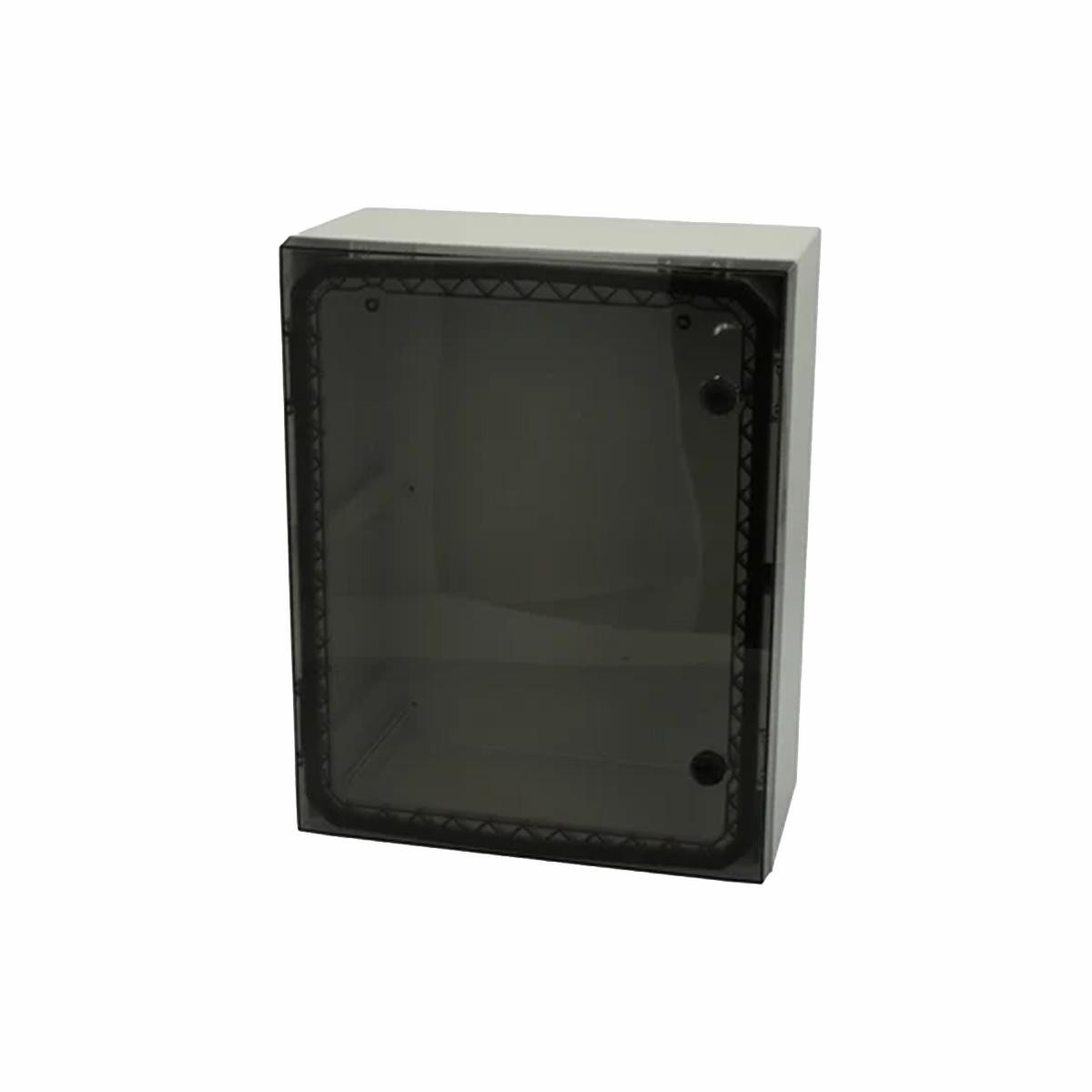

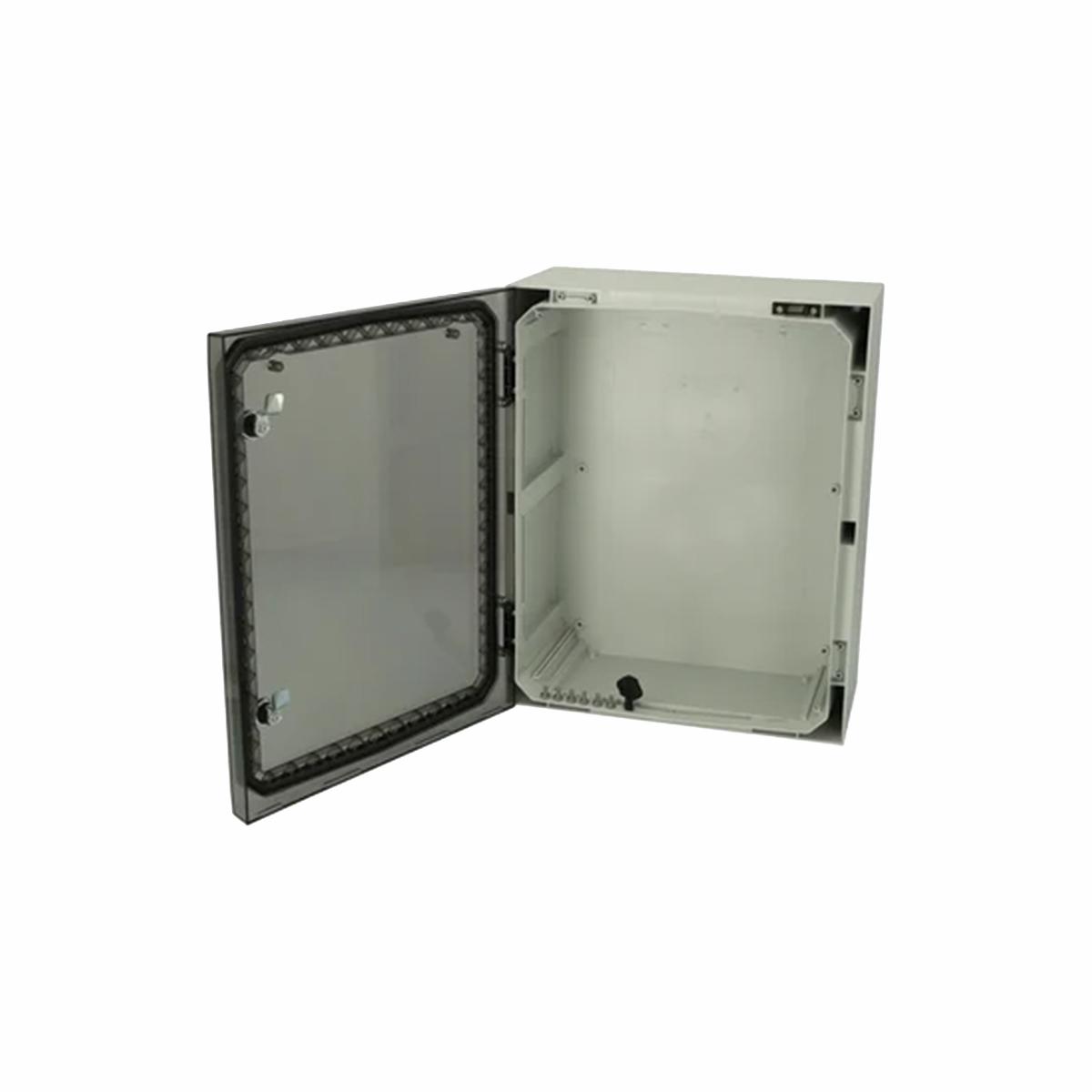

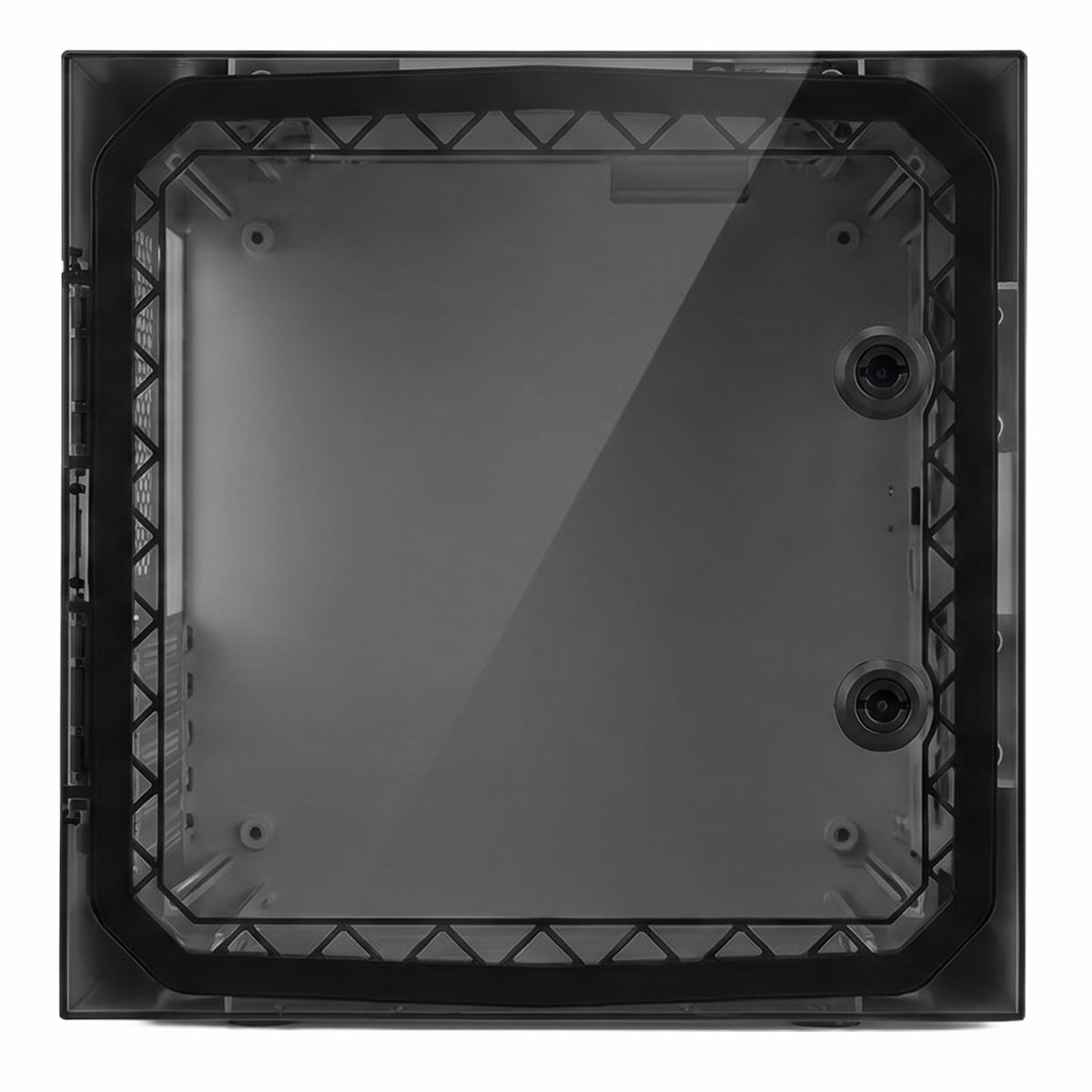

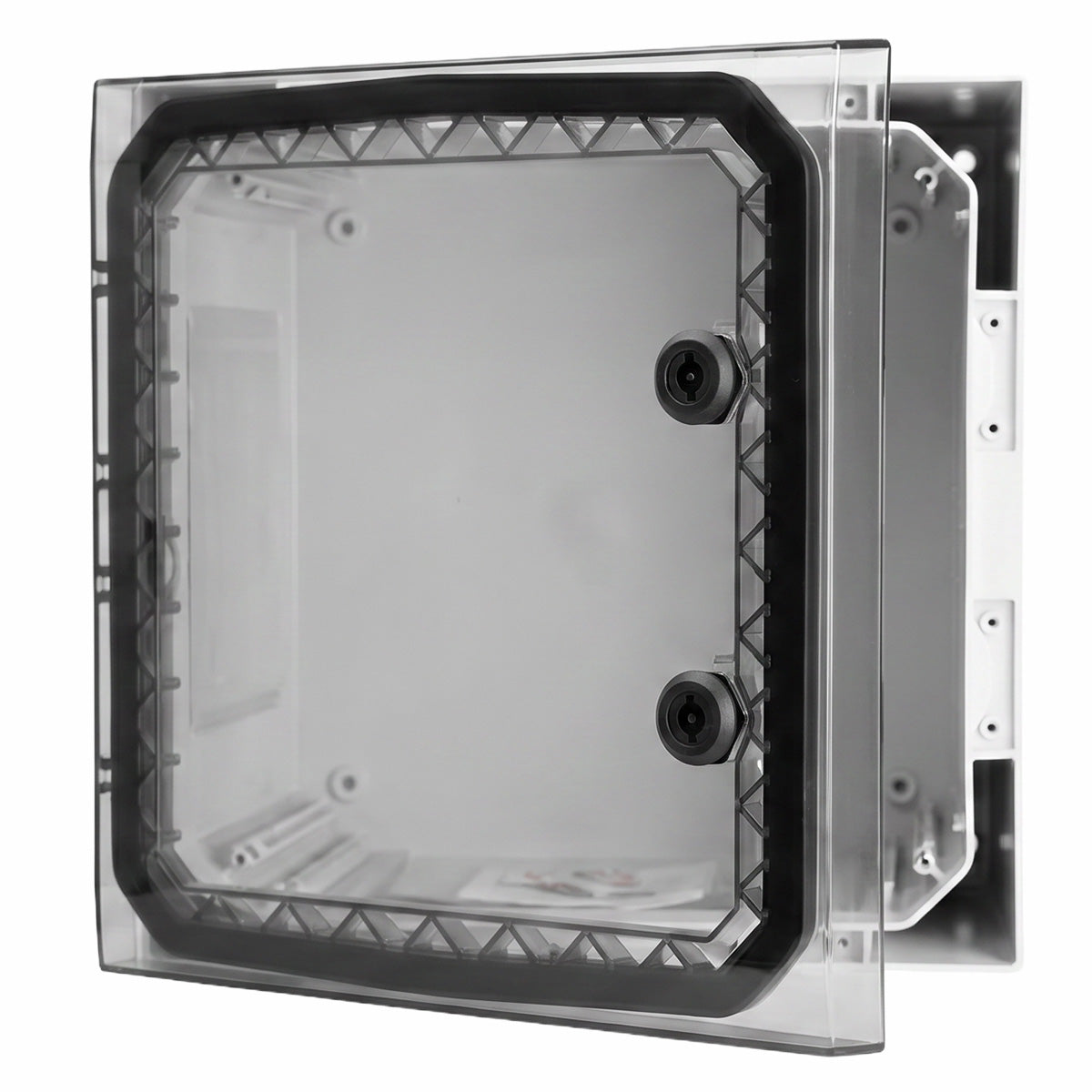

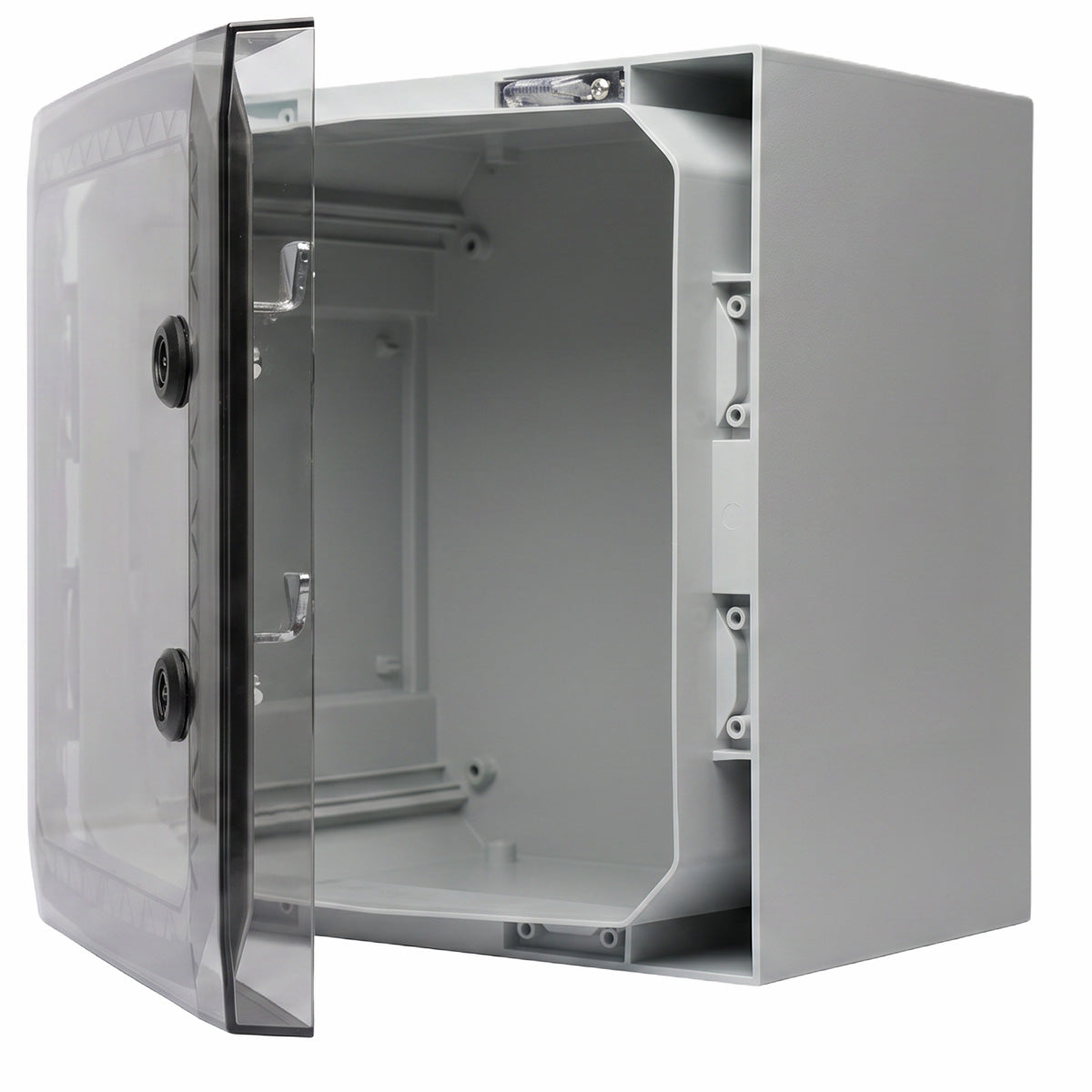

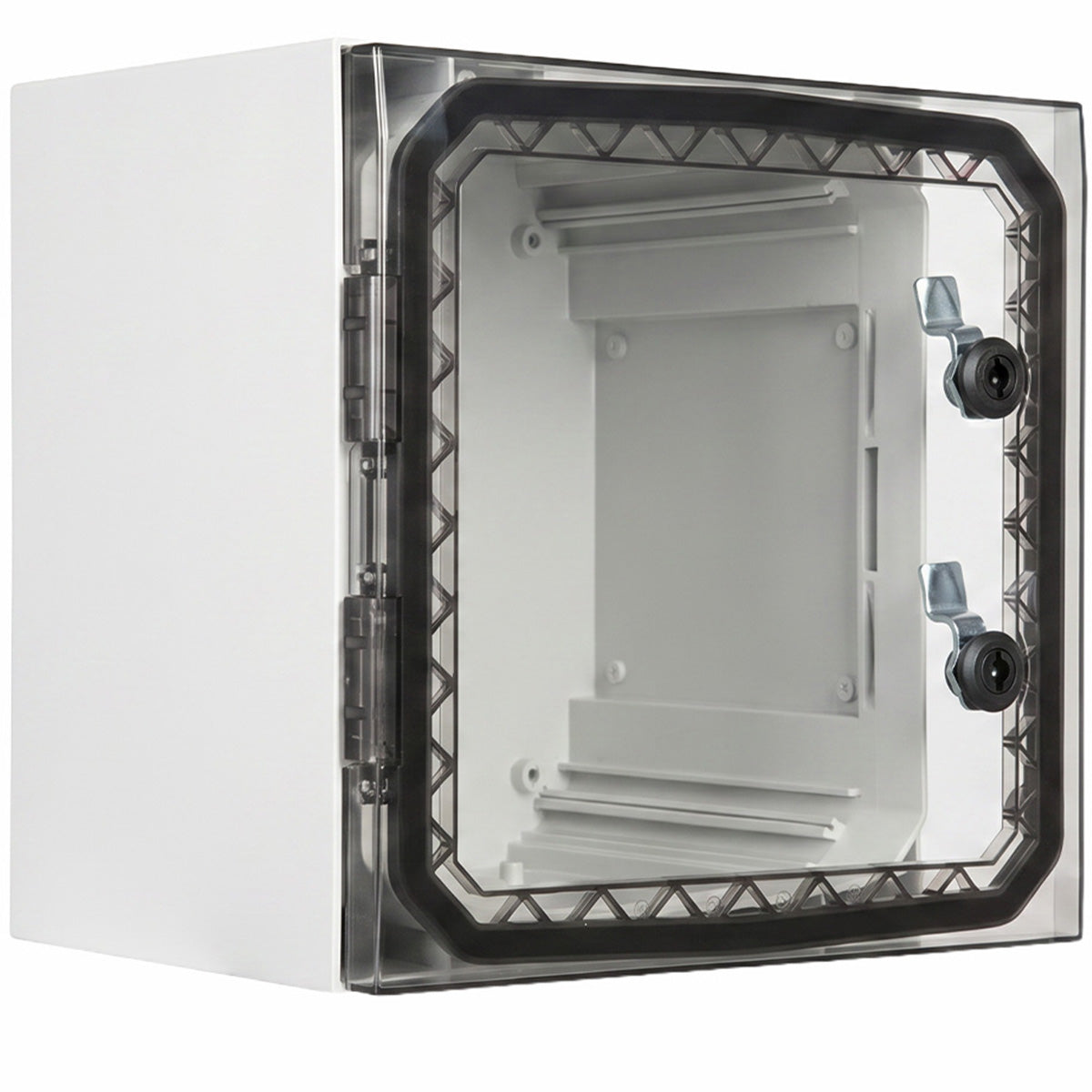

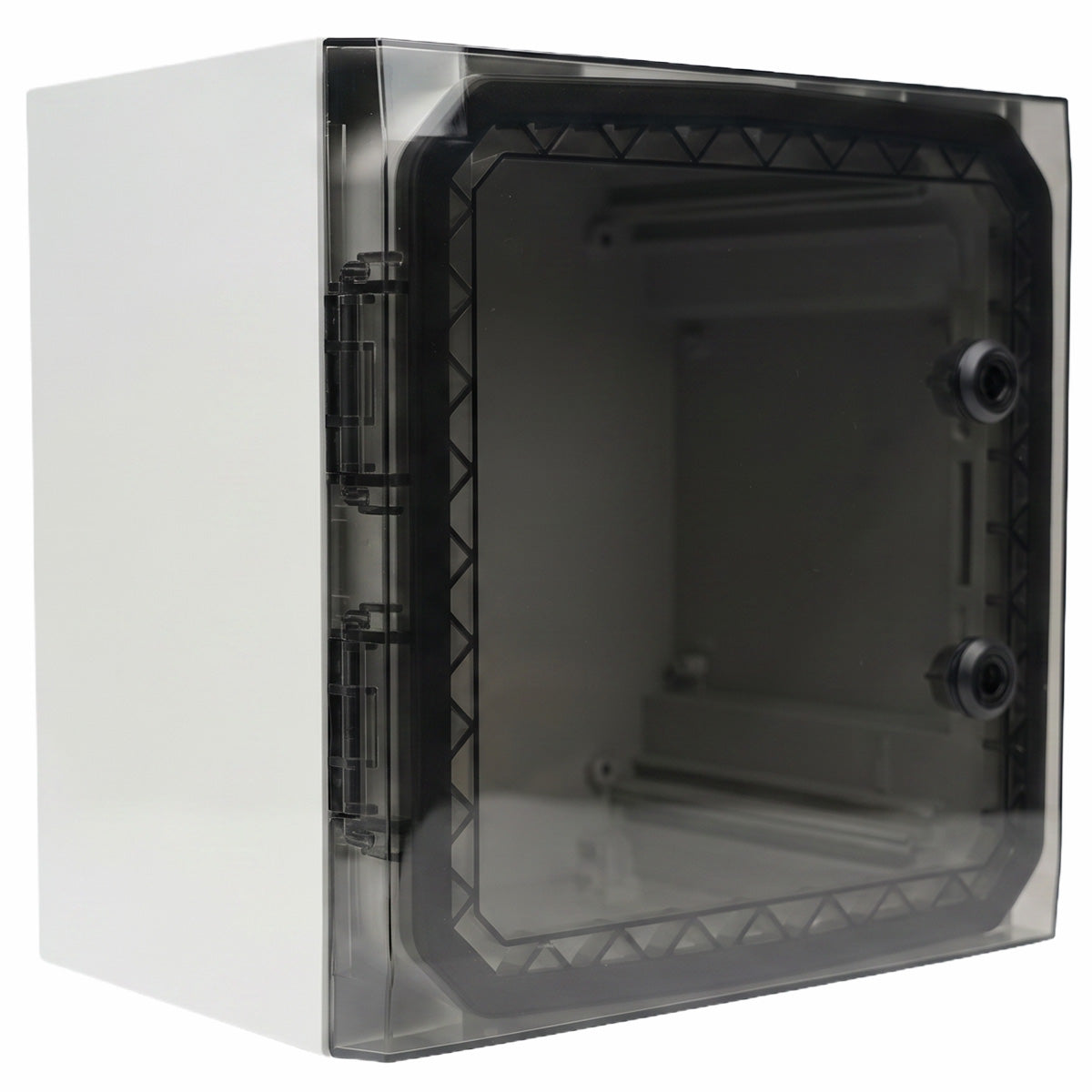

    The Fibox ARCA 505021T (Part No. 8121032N) is a robust polycarbonate electrical cabinet designed for demanding environments. This totally insulated unit features a transparent cover with a two point locking mechanism and no mounting plate. With an ingress protection rating of IP66 and impact resistance of IK09, it offers excellent durability. The enclosure is halogen free, UV resistant to UL 746C standards, and meets flammability rating UL 94 5VA. It is verified through a third party EPD registration, ensuring environmentally conscious manufacturing.




      Technical Specifications


Dimensions (H x W x D)500 x 500 x 210 mm (19.69 x 19.69 x 8.27 inch)
Material & ColorsPolycarbonate body (RAL 7035), Smoked grey cover, Polyurethane gasket
Operating TemperaturesMinus 40 to 80 °C (Minus 40 to 175 °F)
Key RatingsIP66, IK09, Totally Insulated, Halogen Free, UL Type 1, 4, 4X, 12, 13, Glow Wire 960°C
StandardsEN 62208:2011, IEC 62208:2011, EN 61439-1:2011, IEC 61439-1:2011, EN 61439-4:2013, IEC 61439-4:2012
Environmental DataA1-A3 GWP 34.216 kgCO2e (Standard EN15804:2012 + A2:2019), EPD HUB-4865 Verified
Packaging1 Piece (ETIM: EC000261)
IdentifiersEAN 6418074317995, SSTL 3425147, Denmark 8212056394, Sweden 2507067, Norway 2504668
