FIBOX ARCA Transparent Electrical Enclosure 400H x 300W x 210D IP66 with Swinghandle
Ask an expert!
- Height (mm)
- Width (mm)
- Depth (mm)
- Material
- Colour / Finish
- IP Rating
- Door Type
- Seal Type
- Lock Type
- Operating Temperature
- Standards
- Certifications

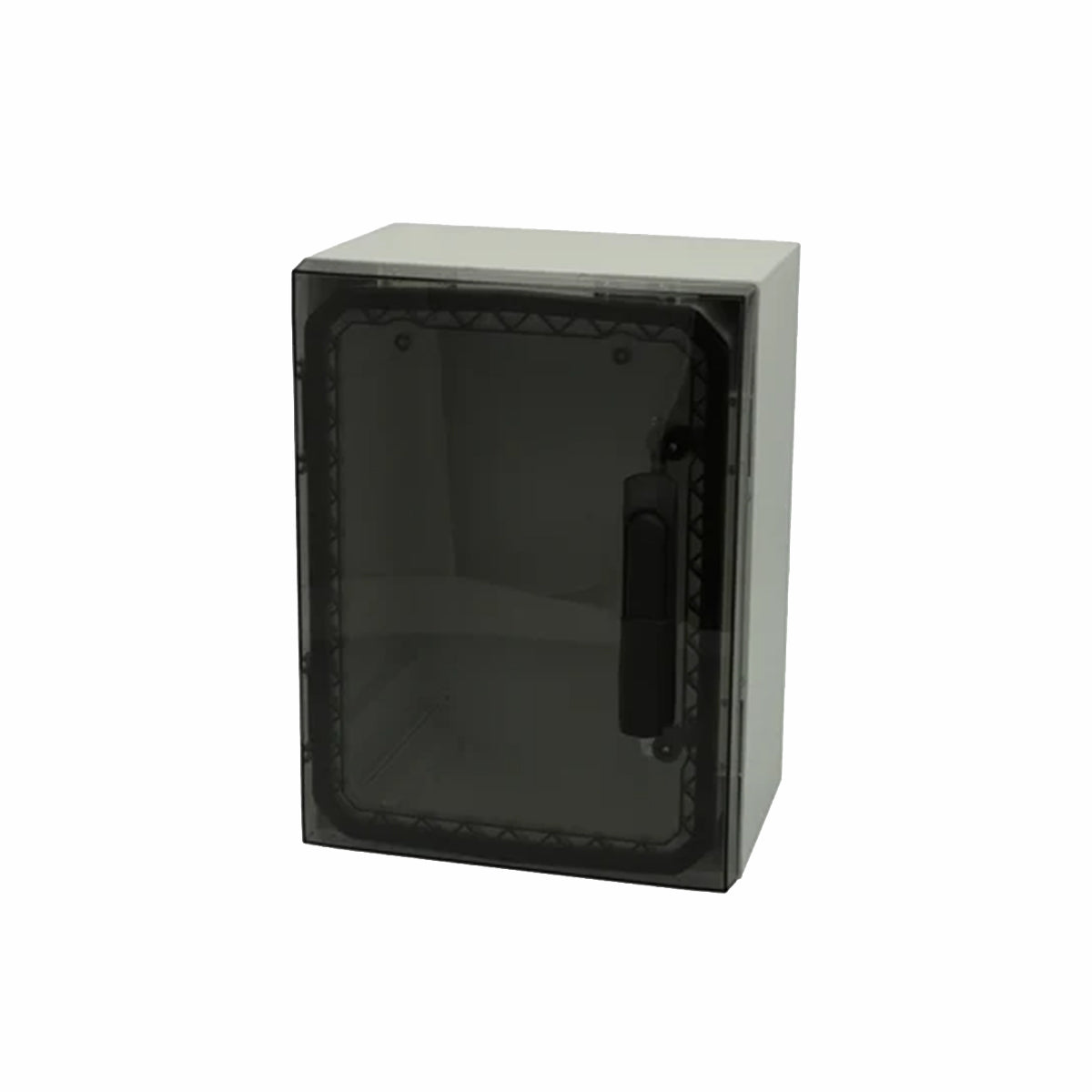

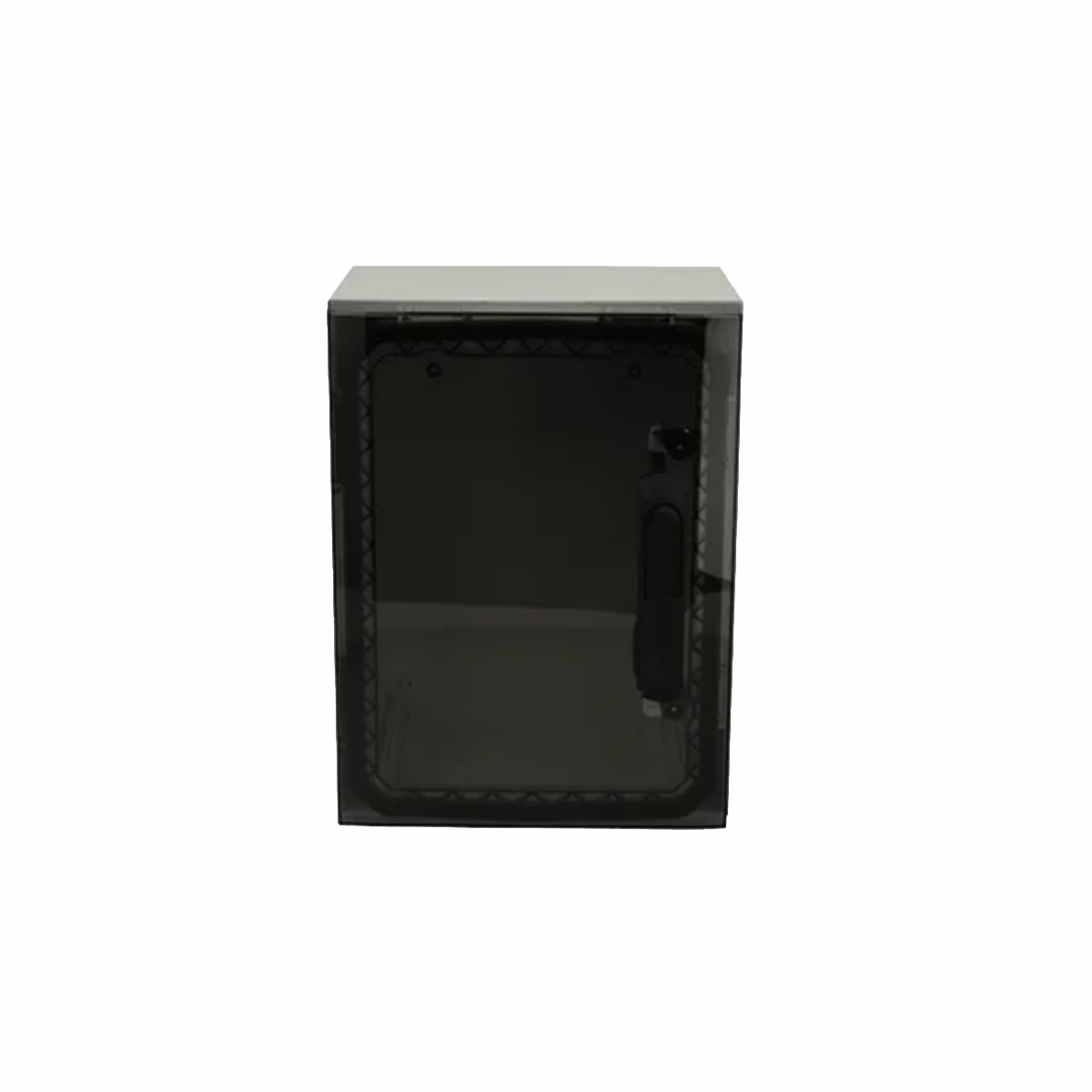

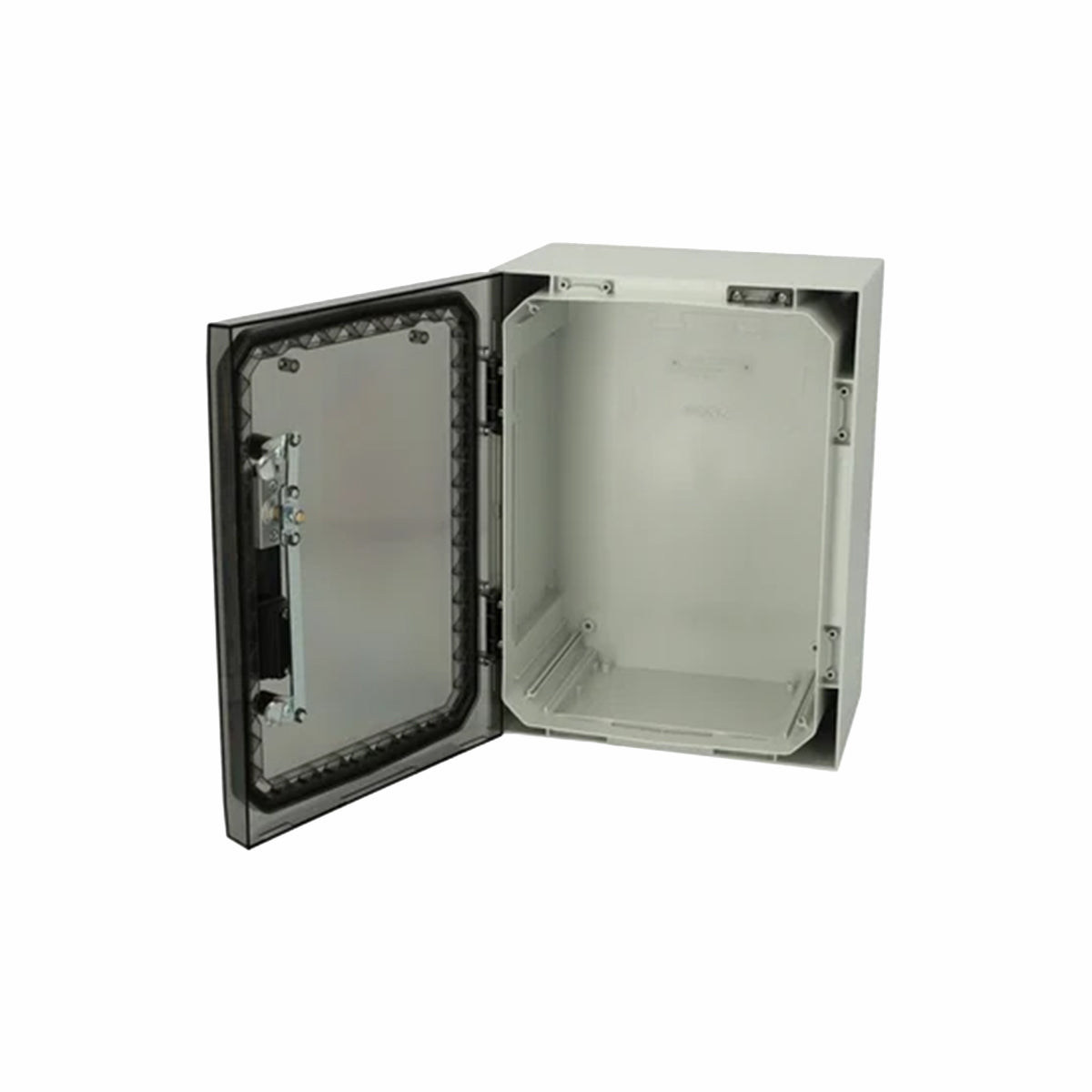

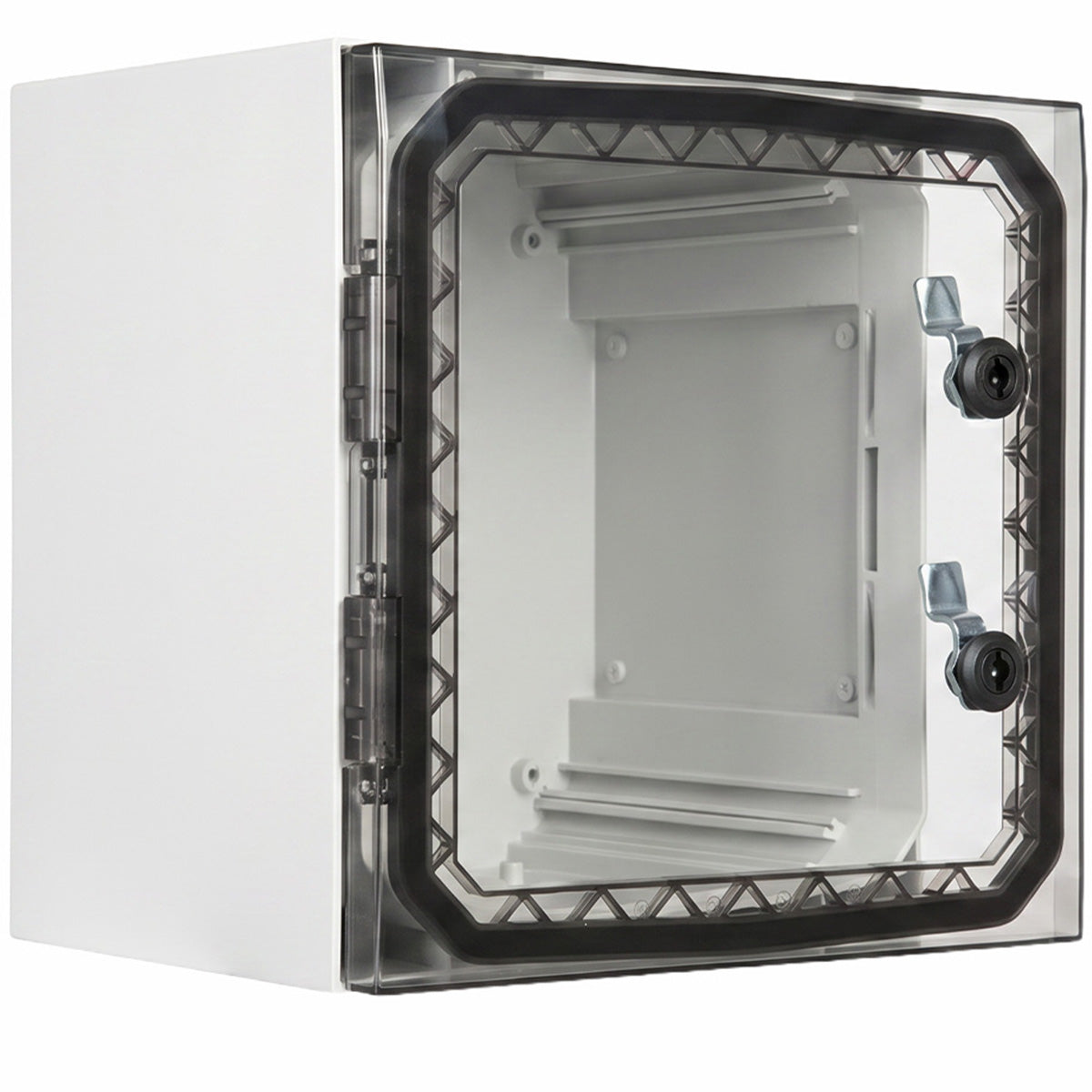

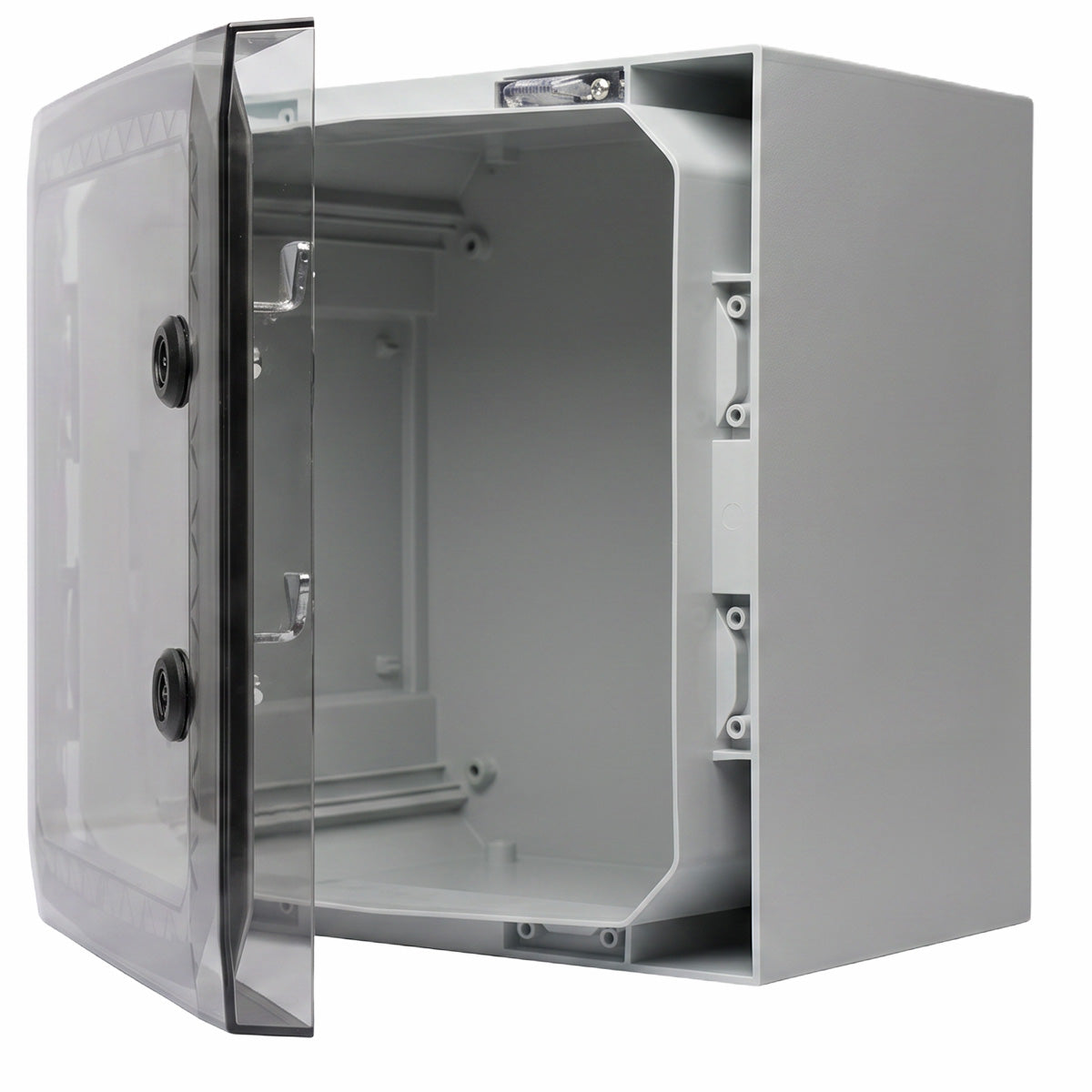

FIBOX ARCA TRANSPARENT ELECTRICAL ENCLOSURE 400H x 300W x 210D IP65 WITH SWINGHANDLE
The Fibox ARCA 403021ST (Part No. 8121087N) is a robust polycarbonate electrical cabinet designed for demanding environments. This totally insulated unit features a transparent cover with a swinghandle locking mechanism, hinges on the long side, and no mounting plate. With an ingress protection rating of IP65 and impact resistance of IK09, it offers excellent durability. The enclosure is halogen free, UV resistant to UL 746C standards, and meets flammability rating UL 94 5VA. It is verified through a third party EPD registration, ensuring environmentally conscious manufacturing.
Technical Specifications
| Dimensions (H x W x D) | 400 x 300 x 210 mm (15.75 x 11.81 x 8.27 inch) |
| Material & Colors | Polycarbonate body (RAL 7035), Smoked grey cover, Polyurethane gasket |
| Operating Temperatures | Minus 40 to 80 °C (Minus 40 to 175 °F) |
| Key Ratings | IP65, IK09, Totally Insulated, Halogen Free, UL Type 1, 4, 4X, 12, 13, Glow Wire 960°C |
| Standards | EN 62208:2011, IEC 62208:2011, EN 61439-1:2011, IEC 61439-1:2011, EN 61439-4:2013, IEC 61439-4:2012 |
| Environmental Data | A1-A3 GWP [INSERT kgCO2e] (Standard EN15804:2012 + A2:2019), EPD HUB-4865 Verified |
| Packaging | 1 Piece (ETIM: EC000261) |
| Identifiers | EAN 6418074318763, SSTL 3425151, Denmark 8212056404, Sweden 2507045, Norway [2504669] |
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
