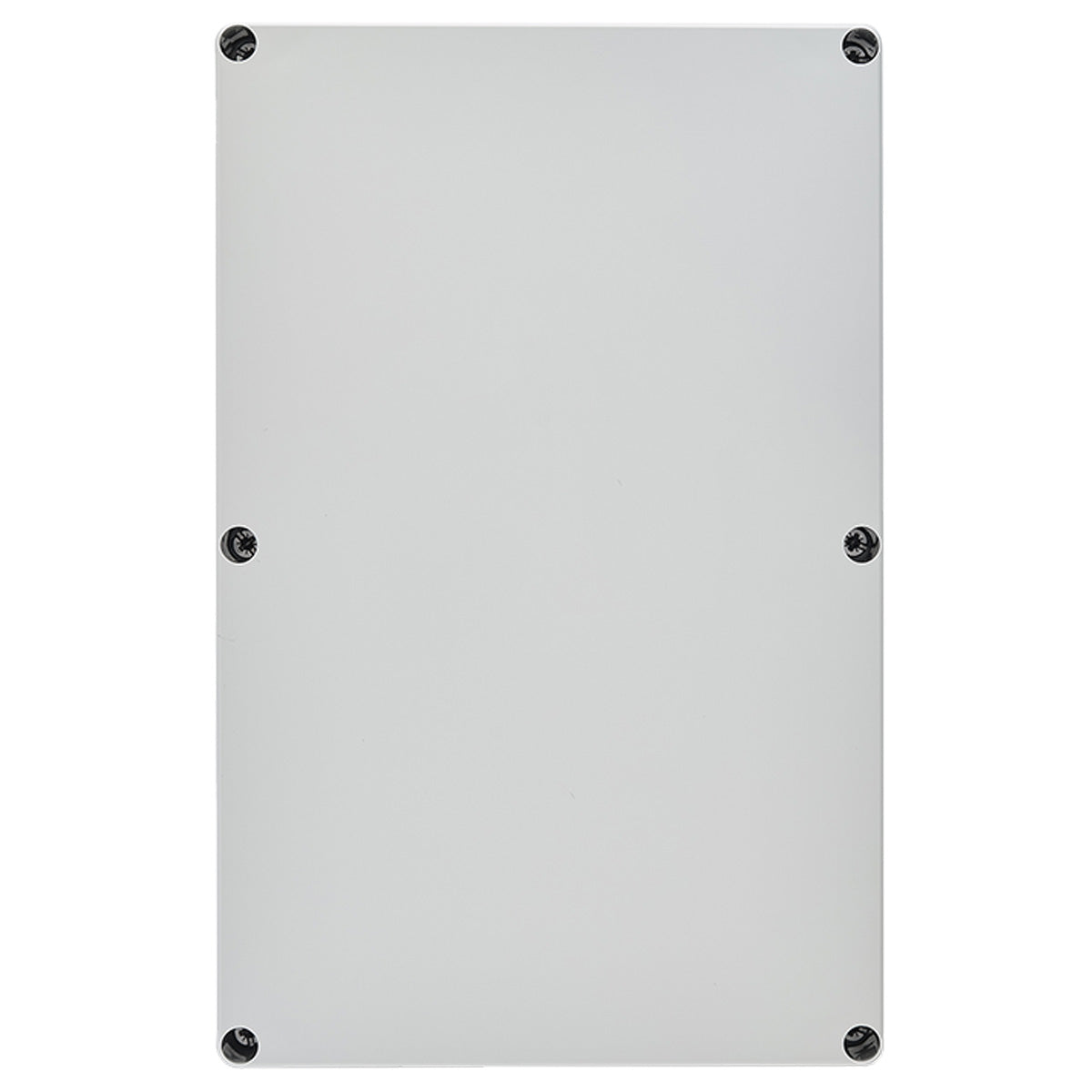

Euronord Polycarbonate Terminal Box Grey Lid 80H x 82W x 65D IP66/67 — FIBOX

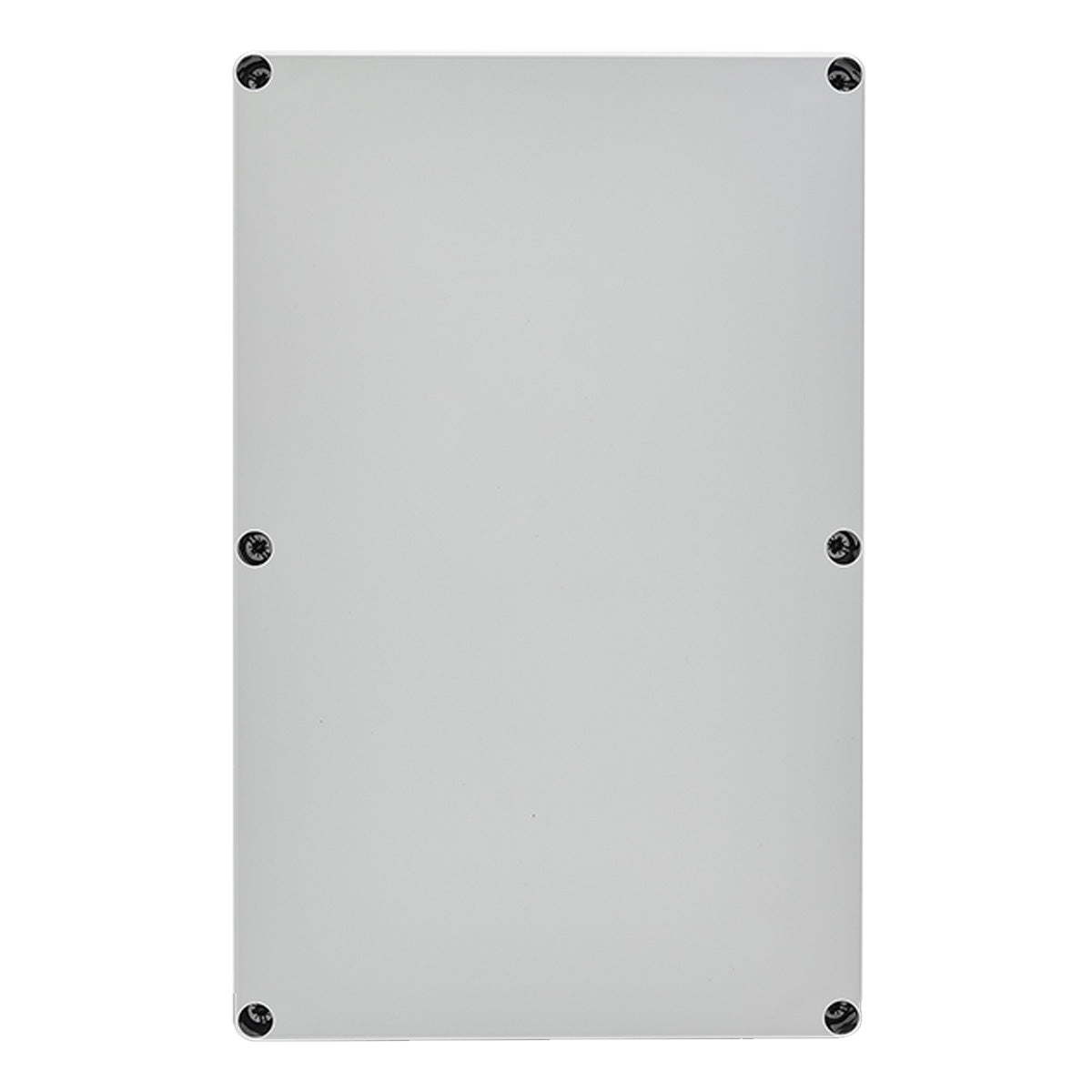

PC-080807 - image 2

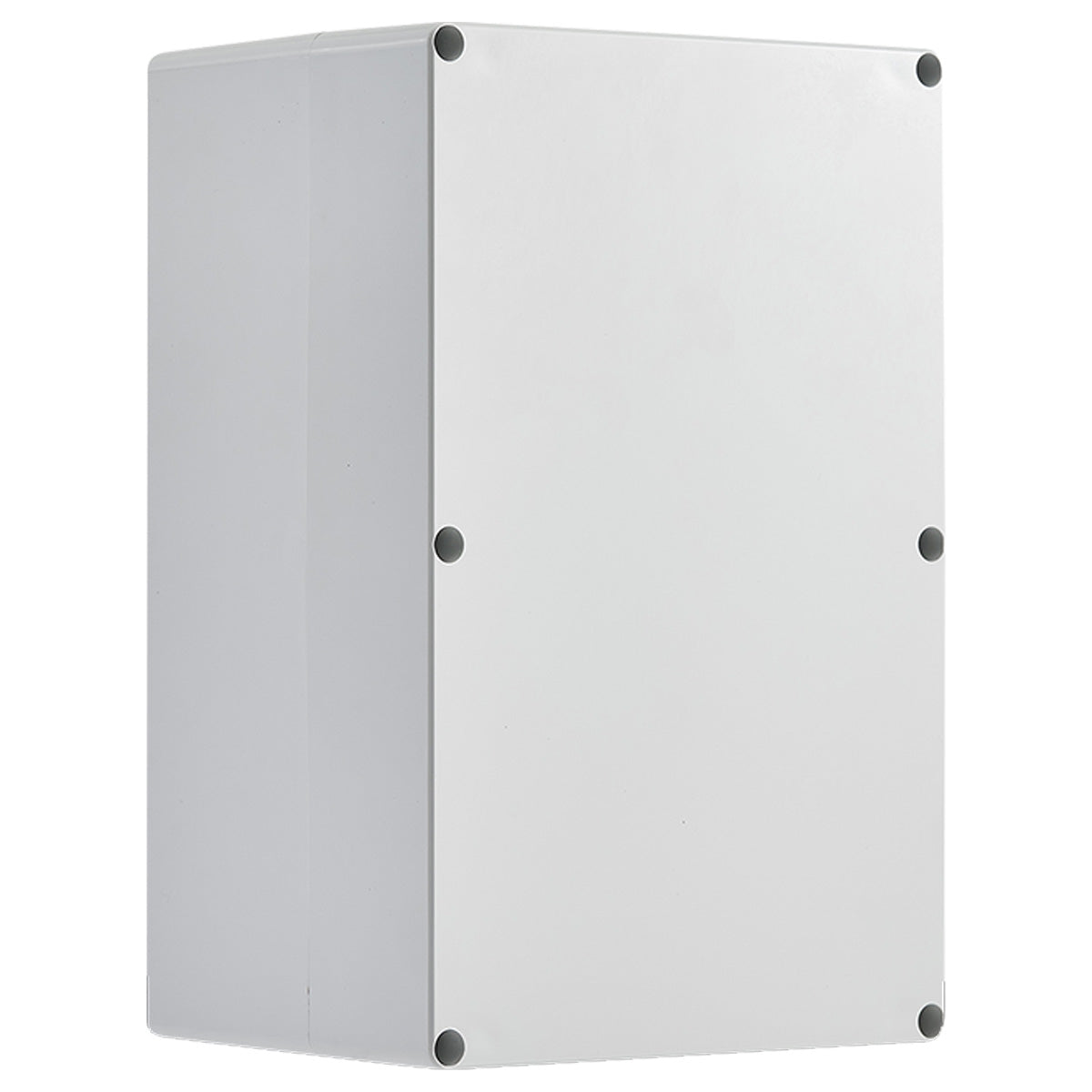

PC-080807 - image 3
Euronord Polycarbonate Terminal Box Grey Lid 80H x 82W x 65D IP66/67 — FIBOX
PC-080807 - image 2
PC-080807 - image 3

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

FIBOX

Euronord Polycarbonate Terminal Box Grey Lid 80H x 82W x 65D IP66/67

SKU
$18.78 ex. GST $20.66 inc. GST
In stock
71 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 80
  • Width (mm) 82
  • Depth (mm) 65
  • Material Polycarbonate
  • Colour Grey
  • IP Rating IP66/IP67
  • Lock Type Cover Screws
  • Door Type Removable Cover
  • Flammability Rating UL 746C 5V

Standards & certifications

IP66Dust-tight · powerful jets IP67Temporary immersion IK08Impact rated IEC 60529Ingress protection NEMA 4XUS enclosure rating IEC/EN 62208 · 62262 Tested standards
Product Datasheet PDF Declaration of Conformity PDF

The FIBOX Euronord PC-080807 is a compact polycarbonate wall-mount enclosure with grey lid, designed for housing sensors, terminal blocks, and process control equipment in demanding industrial environments. Rated IP66/IP67 and IK08, it suits wet, dusty, and outdoor installations where a low-profile, screw-close cover is preferred over a hinged door.

Key features

  • Polycarbonate construction — lightweight, corrosion-resistant, and electrically insulating
  • Foam-in-place polyurethane (PUR) gasket delivers a reliable IP66/IP67 seal across the full operating range
  • Ferritic stainless steel cover screws; removable grey (RAL 7035) lid
  • Base accepts mounting plate and DIN-rail inserts (screws included)
  • NEMA 1, 4, 4X, 12, 13 rated; SGS Fimko certified
  • Halogen-free; UV-stabilised material

Technical specifications

External dimensions (H × W × D) 80 × 82 × 65 mm
IP rating IP66 / IP67
IK rating IK08
Operating temperature −40°C to +80°C continuous
Material Polycarbonate, RAL 7035 light grey
Gasket Polyurethane foam-in-place (FIP)
Cover fastening Stainless steel cover screws
Flammability UL 746C 5V
Standards IEC 62208, IEC 60529, IEC 62262
NEMA 1, 4, 4X, 12, 13
EAN 6418074003614

Stocked in Australia. Contact the TROPAC team for volume pricing or technical support.

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
