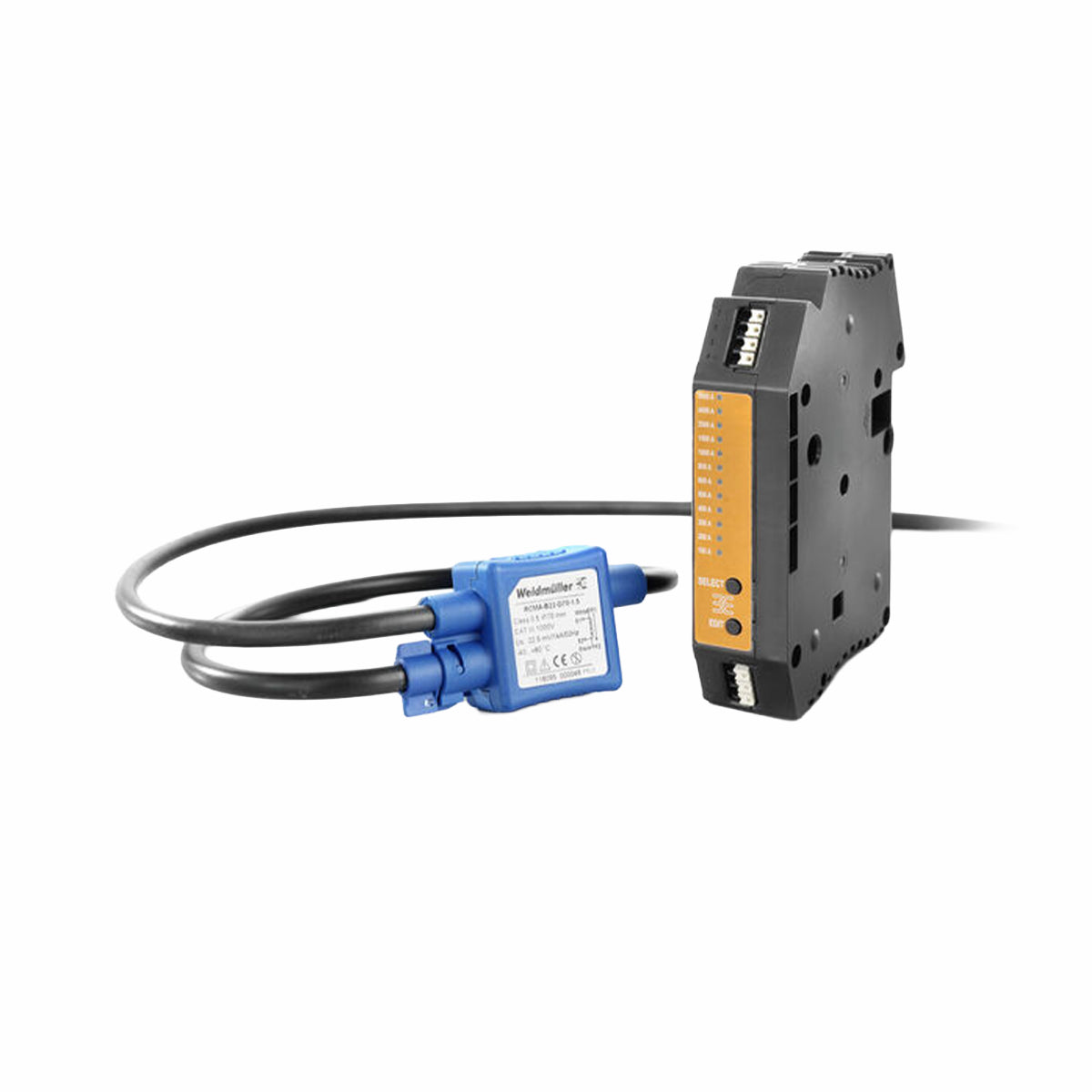

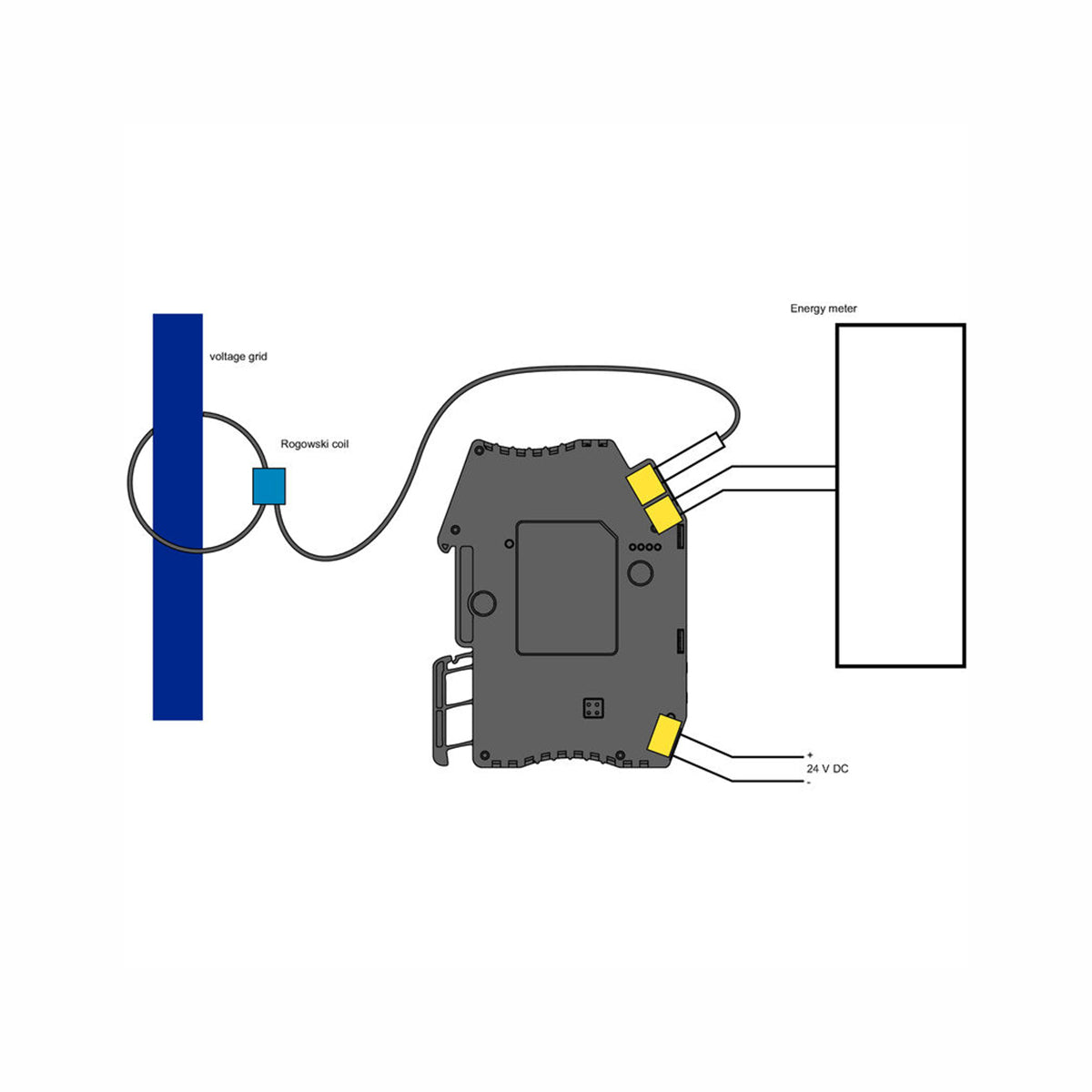

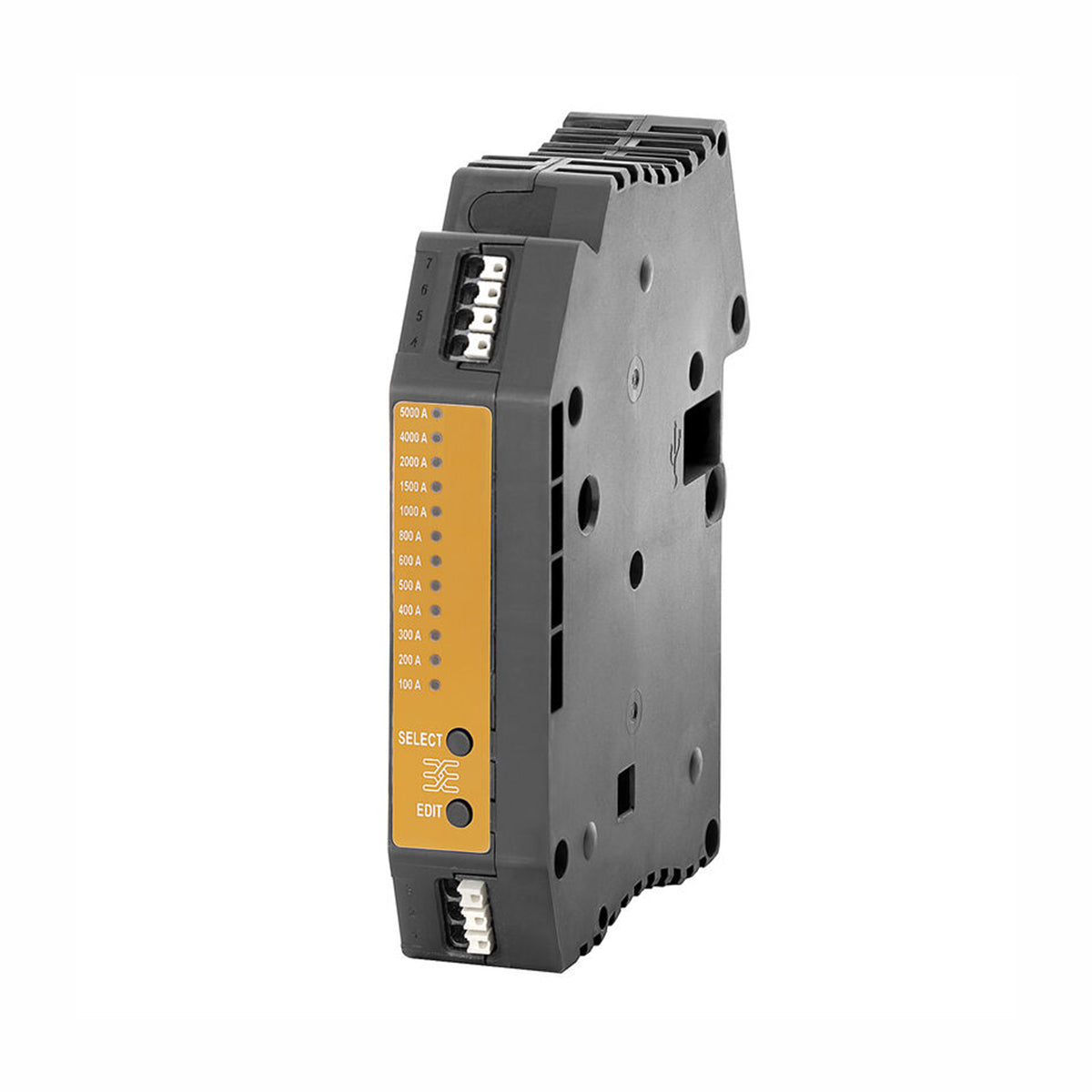

The Weidmüller RCMC-5000-1A-P is the signal converter required to complete a Rogowski coil measurement system. It accepts the mV output from any RCMA-B22 rope current transformer and converts it to a standard 0–1A AC signal, making the Rogowski coil output compatible with any energy meter that accepts a conventional 1A CT input. Twelve selectable current ranges from 100A to 5000A allow the transducer to be configured for a wide range of installation scenarios — from sub-distribution boards to high-current mains feeds up to 5000A.
| Product Type | Rogowski Transducer / Signal Converter |
|---|---|
| Compatible With | All RCMA-B22 Rogowski Coils (70mm, 125mm, 175mm, 300mm) |
| Output Signal | 0–1A AC |
| Selectable Current Ranges | 12 ranges: 100, 200, 300, 400, 500, 750, 1000, 1500, 2000, 2500, 3000, 5000A |
| Accuracy Class | Class 0.5 (IEC 61869-2) |
| Linearity Error | ≤ 0.10% |
| Operating Temperature | −25 to +70°C |
| Mounting | DIN rail |
| Order No. | 2593400000 |
- Required accessory for all Weidmüller RCMA-B22 Rogowski coils — one RCMC per coil
- Converts Rogowski mV output to 0–1A AC signal, compatible with any 1A CT energy meter input
- 12 selectable ranges cover 100A to 5000A — suitable from sub-boards to high-current mains
- Accuracy Class 0.5 (IEC 61869-2), linearity error ≤ 0.10%
- DIN rail mounted; operating temperature −25 to +70°C
