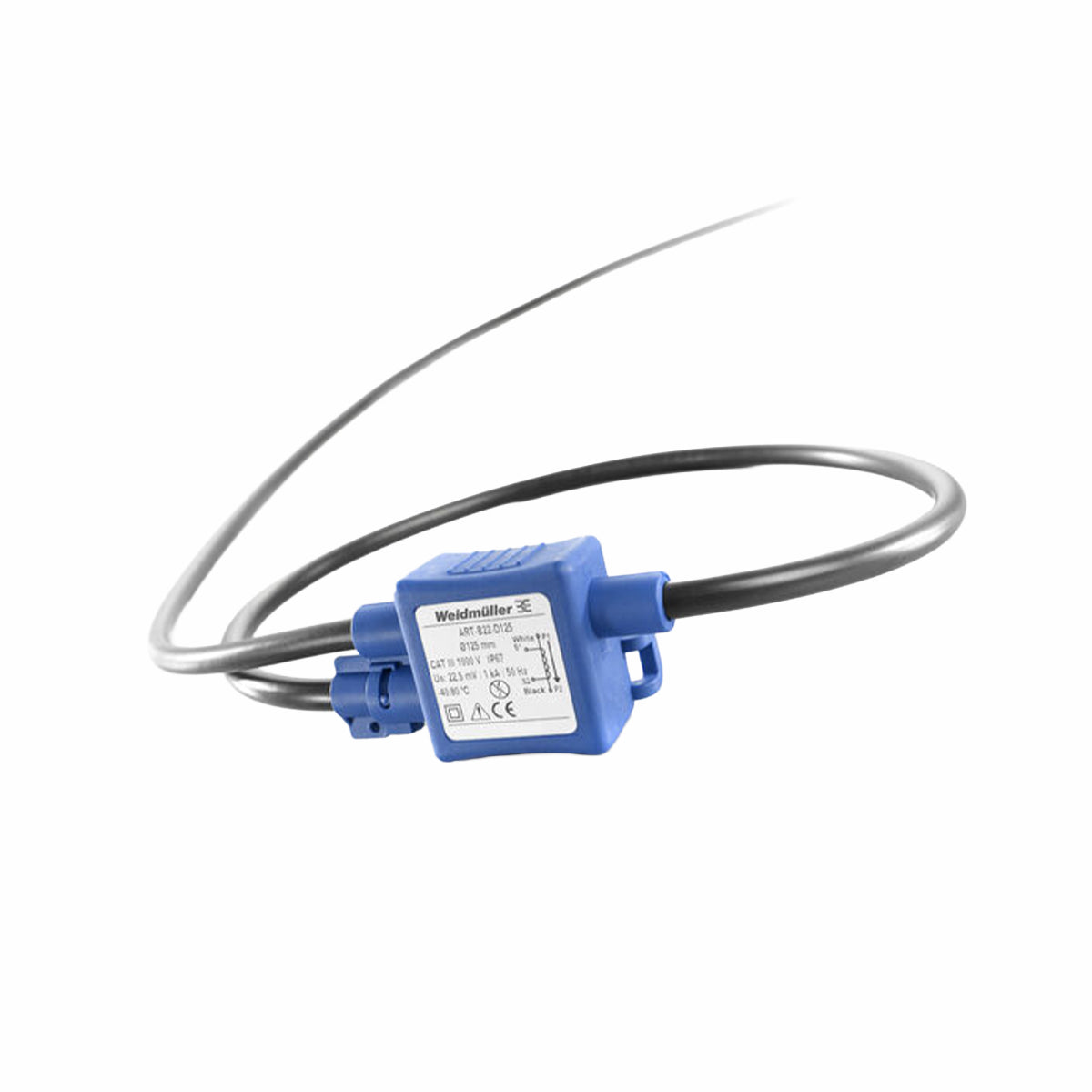

The Weidmüller RCMA-B22-D175-1.5 is a Rogowski rope current transformer designed for accurate AC current measurement on conductors up to 175mm in diameter. Unlike traditional wound current transformers, the flexible rope design clips around an energised conductor without disconnecting the primary circuit — making it ideal for retrofitting into existing switchboards, substations, data centres, and commercial buildings. The 1.5m cable connects to the RCMC-5000-1A-P transducer, which converts the Rogowski signal to a standard 0–1A AC output compatible with any energy meter that accepts a 1A CT input.
| Product Type | Rogowski Coil (Rope Current Transformer) |
|---|---|
| Max Primary Current | 5000 A |
| Current Range (selectable) | 100–5000 A (12 ranges, set on RCMC transducer) |

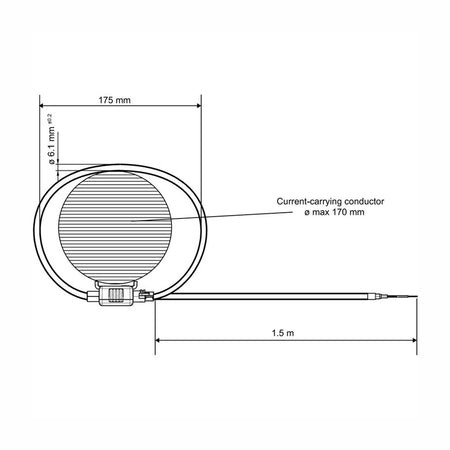

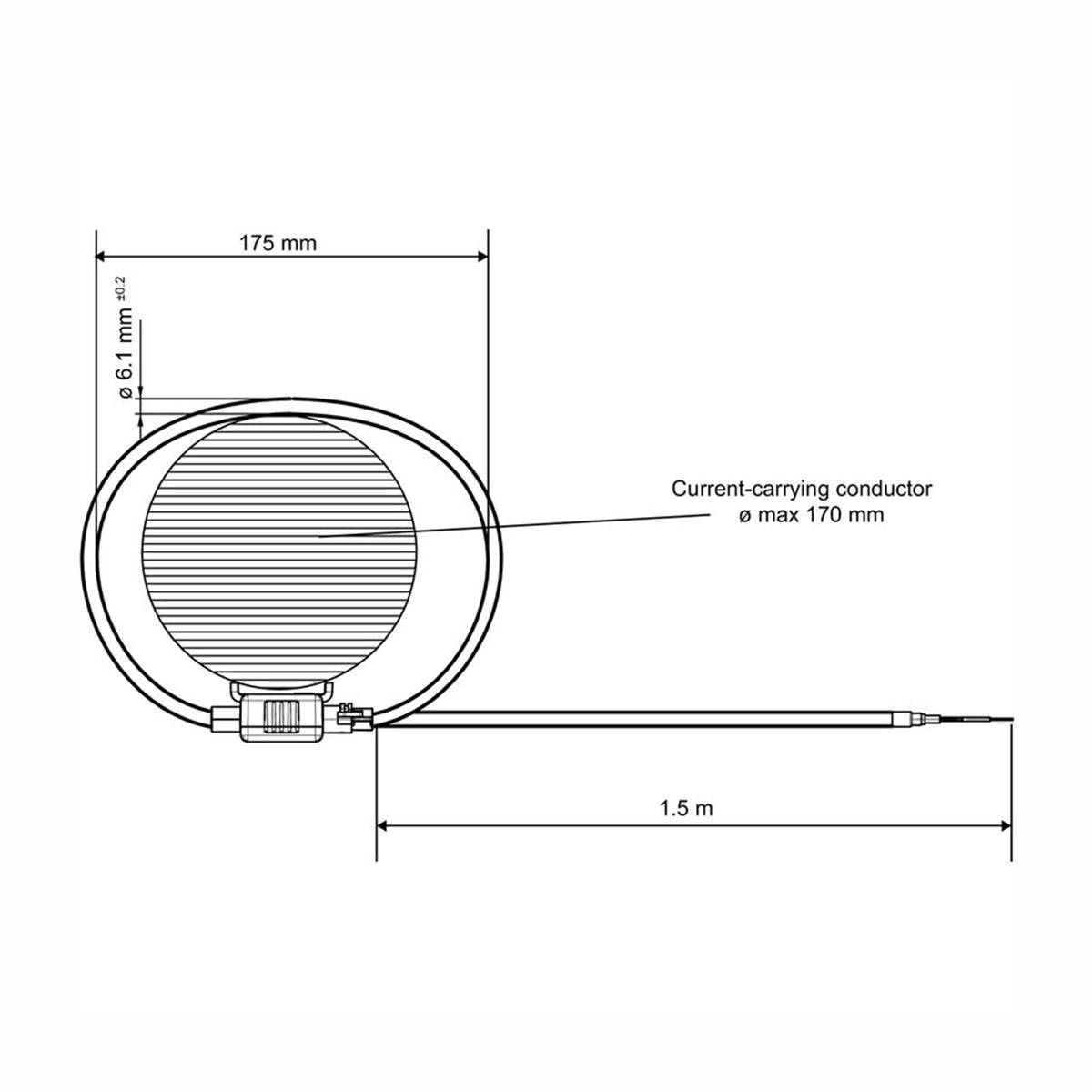

| Conductor Size (max Ø) | 175 mm |
| Cable Length | 1.5 m |
| Output Signal | mV (via RCMC transducer: 0–1A AC) |
| Accuracy Class | Class 0.5 (IEC 61869-10) |
| Saturation | None — air core design |
| Protection Rating | IP57 |
| Suitable Applications | Data centres, substations, commercial & industrial buildings |
| Mandatory Accessory | RCMC-5000-1A-P Transducer (Order No. 2593400000) |
| Order No. | 2593390000 |

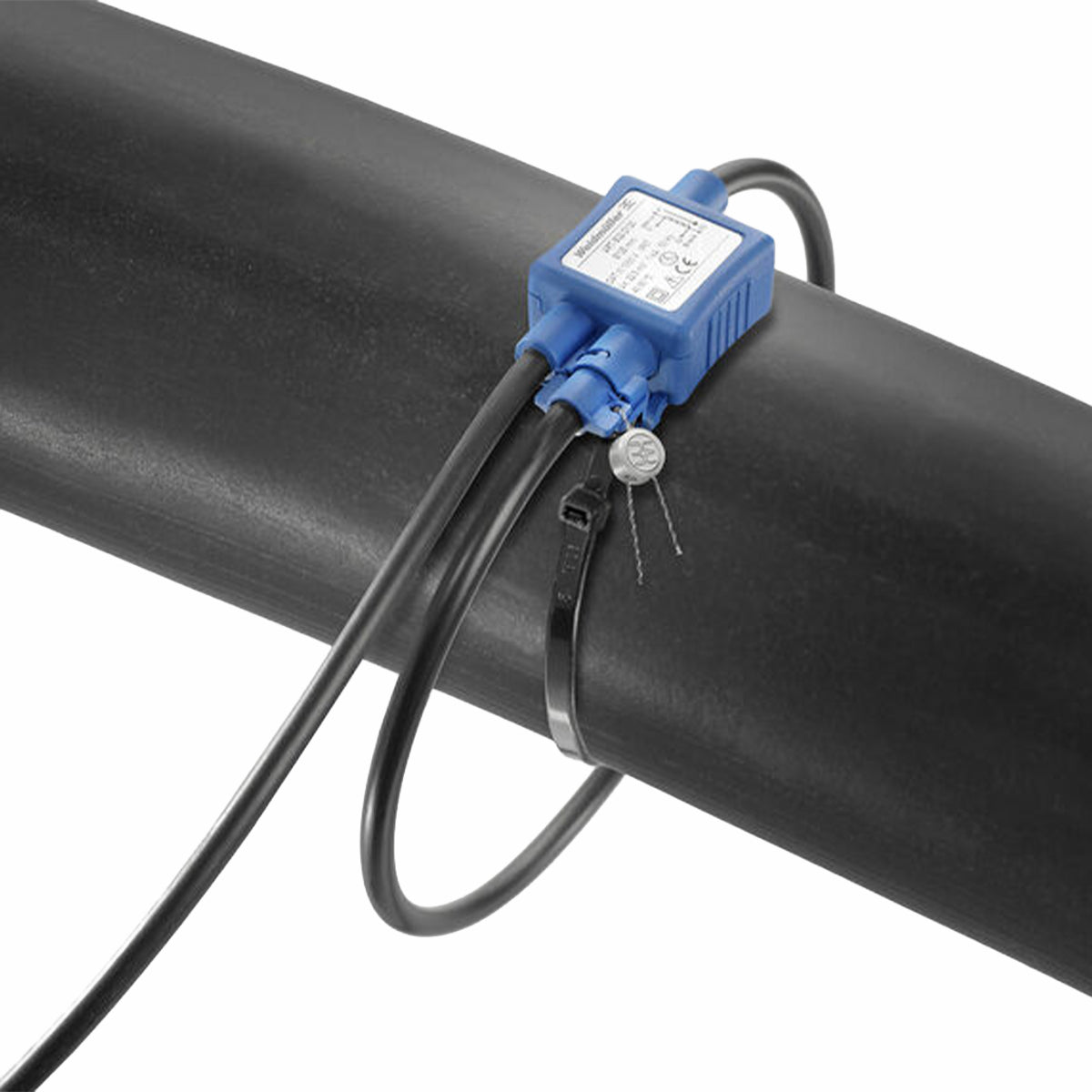

- Clip-around rope design installs onto live conductors without circuit disconnection
- No saturation effect — accurate measurement of both small currents and high-frequency harmonics
- Accuracy Class 0.5 to IEC 61869-10 — suitable for NABERS and sub-metering compliance
- Suits conductors up to 175mm diameter; cable length 1.5m to RCMC transducer
- Works with any energy meter accepting a 1A CT input — pairs directly with Weidmüller EM energy meter range
Available from TROPAC — contact our team for pricing and availability.
