1–3 Phase Energy Meter 100A Direct, Modbus RTU — Weidmuller
1–3 Phase Energy Meter 100A Direct, Modbus RTU — Weidmuller

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Weidmuller

1–3 Phase Energy Meter 100A Direct, Modbus RTU

SKU
$257.50 ex. GST $283.25 inc. GST
In stock
18 in stock across 3 warehouses
  • Height (mm) 100
  • IP Rating IP20

Standards & certifications

IP20Ingress protection

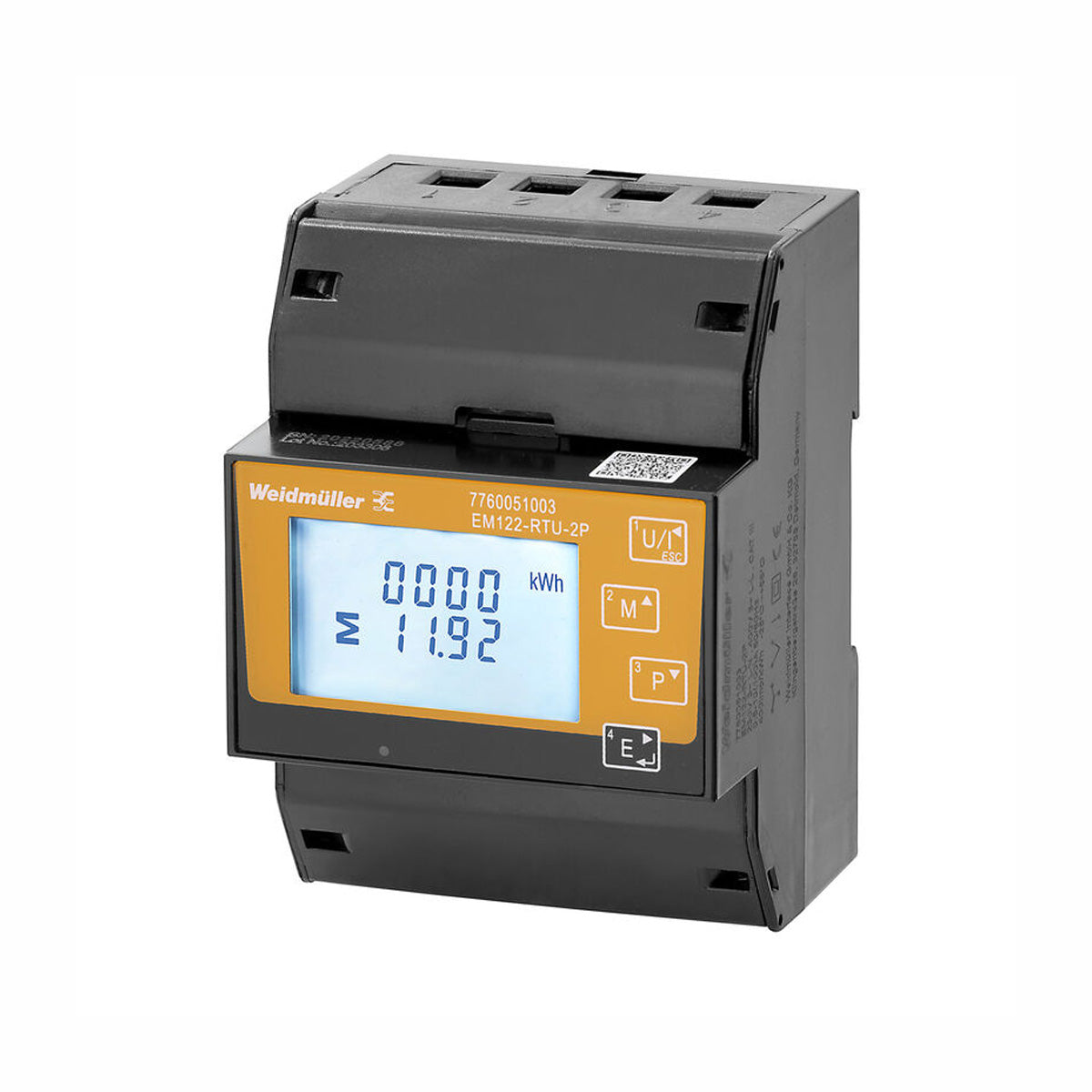

The Weidmüller EM122-RTU-2P is a single/three-phase energy meter with direct connection rated to 100A — no external current transformer required. It is designed for sub-metering distribution boards in commercial and industrial buildings, measuring active energy to Class 1 accuracy (IEC 62053-21) and communicating via RS485 Modbus RTU.

The meter supports both single-phase and three-phase circuit configurations from a single device, simplifying product selection. An LCD display provides local energy and power readings, and a pulse output is included for integration with pulse-counting inputs on third-party systems. Mounts on standard 72mm TS35 DIN rail.
