1–3 Phase Energy Meter CT Input, Modbus RTU — Weidmuller
1–3 Phase Energy Meter CT Input, Modbus RTU — Weidmuller

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Weidmuller

1–3 Phase Energy Meter CT Input, Modbus RTU

SKU
$241.04 ex. GST $265.14 inc. GST
Min. order: 10
In stock
11 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 100
  • IP Rating IP20

Standards & certifications

IP20Ingress protection

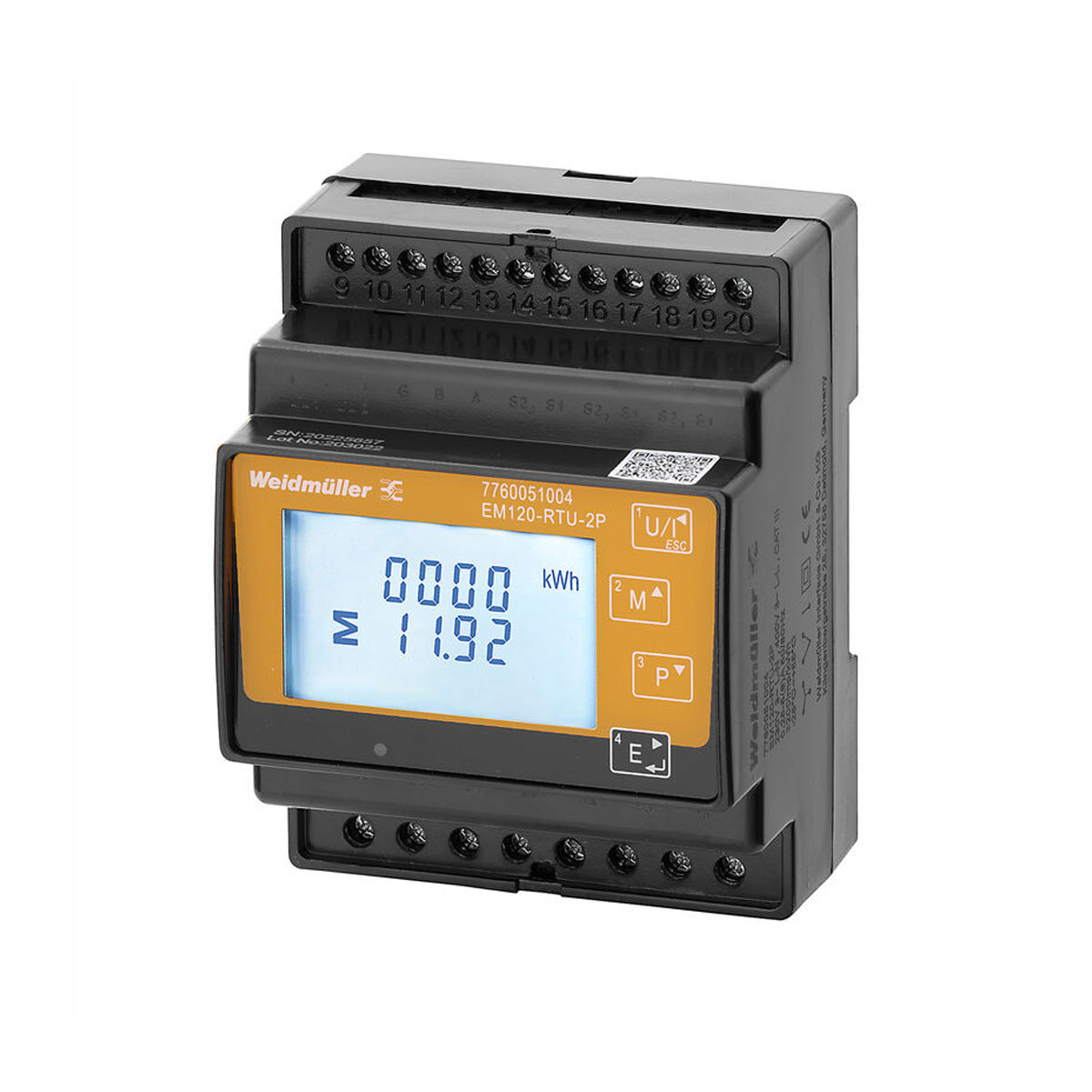

The Weidmüller EM120-RTU-2P is a versatile energy meter capable of operating in both single-phase and three-phase CT configurations. Supporting primary currents up to 5000A via external current transformers, it is suited to sub-metering medium and large loads in commercial and industrial installations. Active energy measurement meets Class 1 accuracy per IEC 62053-21.

The meter connects to BMS and SCADA platforms via RS485 Modbus RTU, and includes a pulse output for energy signal integration. An LCD display provides local readout, and the unit mounts on standard TS35 DIN rail with a 72mm profile. Operating temperature range is -25°C to +55°C.

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
