Single-Phase Energy Meter, CT Input, Modbus RTU
Ask an expert!
- Height (mm)
- IP Rating
Standards & certifications
IP20Ingress protection

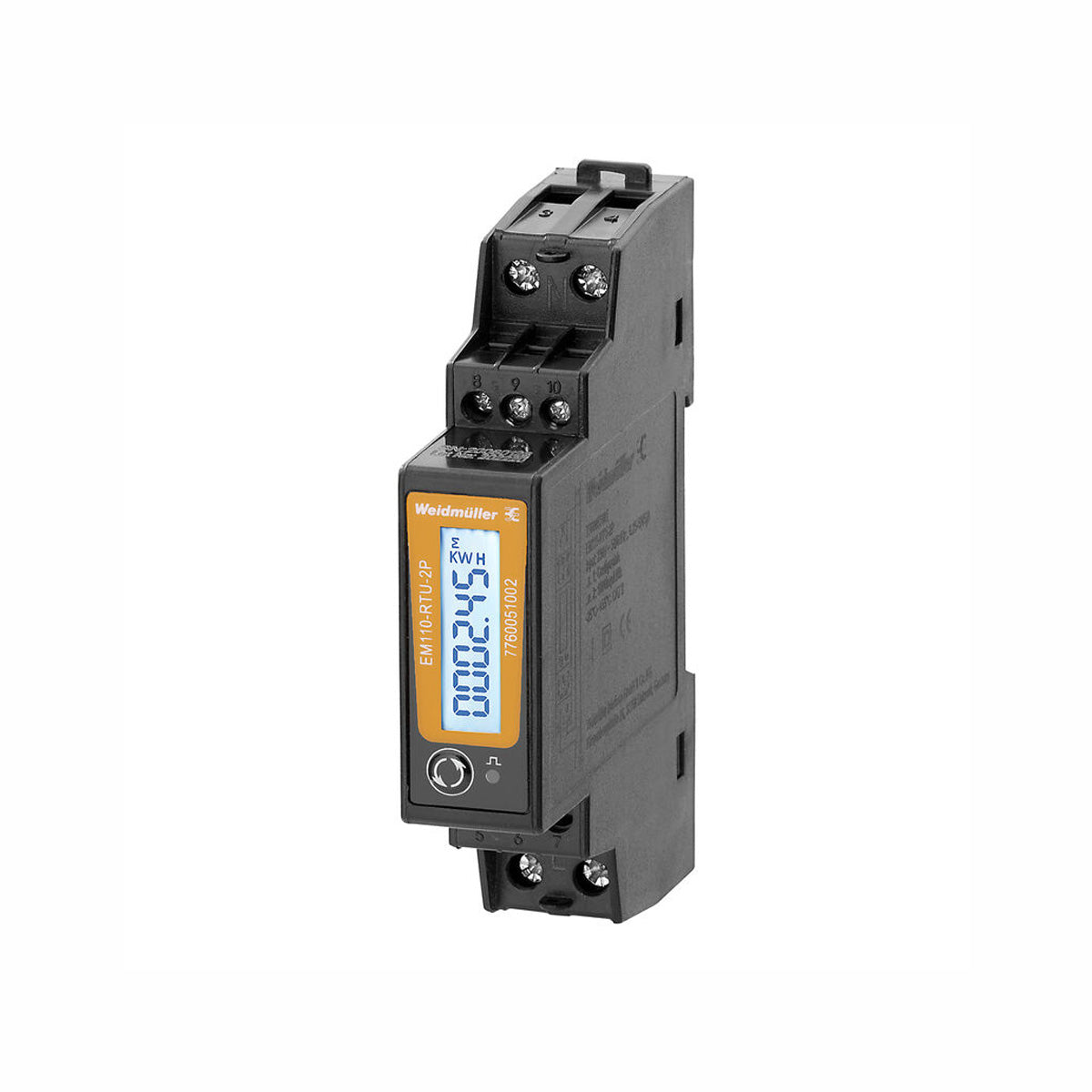

The Weidmüller EM110-RTU-2P is a compact single-phase energy meter designed for use with external current transformers (CT), supporting primary currents up to 5000A. It measures active energy to Class 1 accuracy (IEC 62053-21) and connects to building management and SCADA systems via RS485 Modbus RTU communications. The narrow 17.5mm DIN rail profile makes it ideal for space-constrained switchboard installations.
Key features include a backlit LCD display, two pulse outputs for energy pulse signalling, selectable Modbus addressing (1–247), and an operating temperature range of -25°C to +55°C. The front panel carries an IP51 ingress protection rating, suitable for indoor panel environments.
