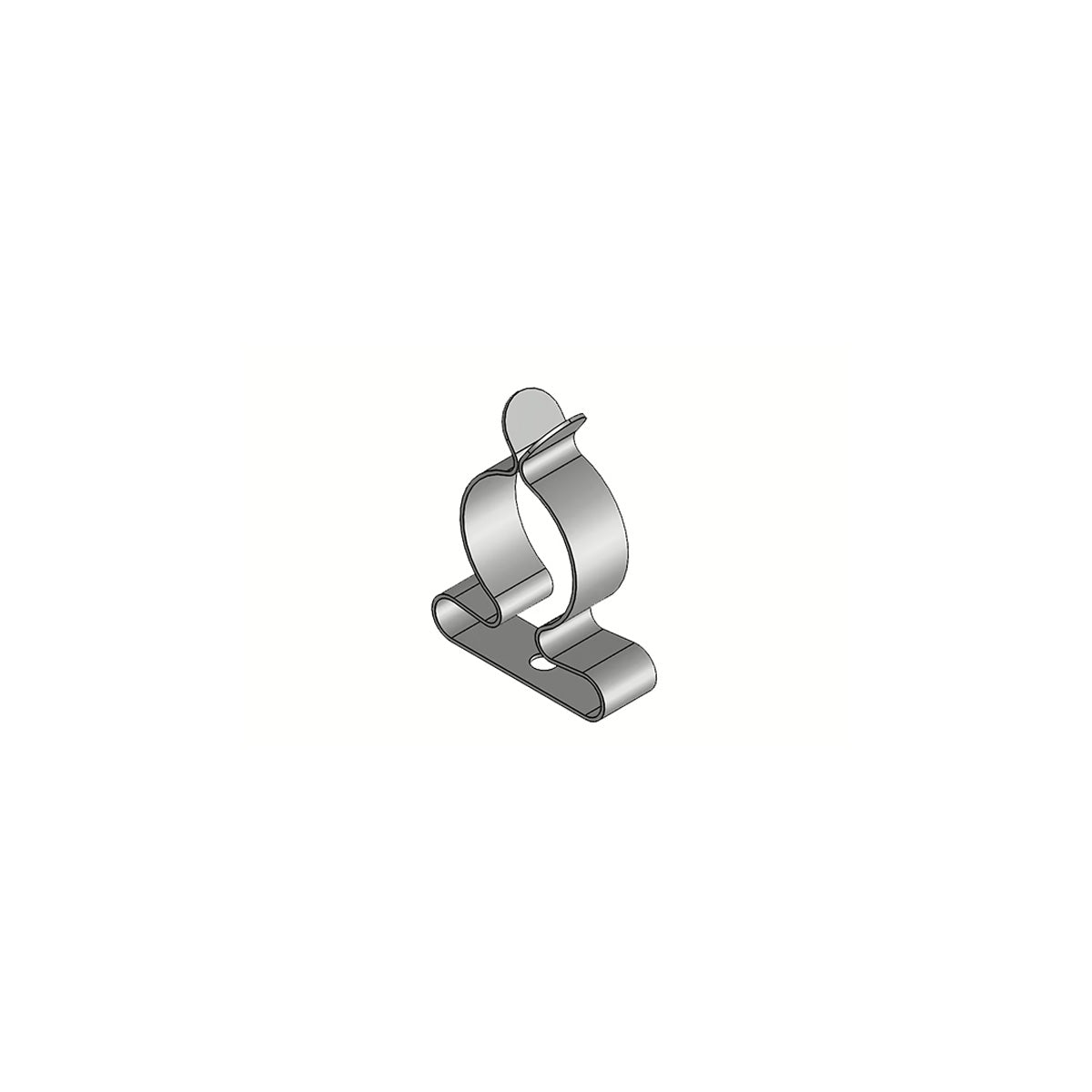

EMC Shield Clamps for 17-22mm Cable, Rivet Mount | SKL 17-22

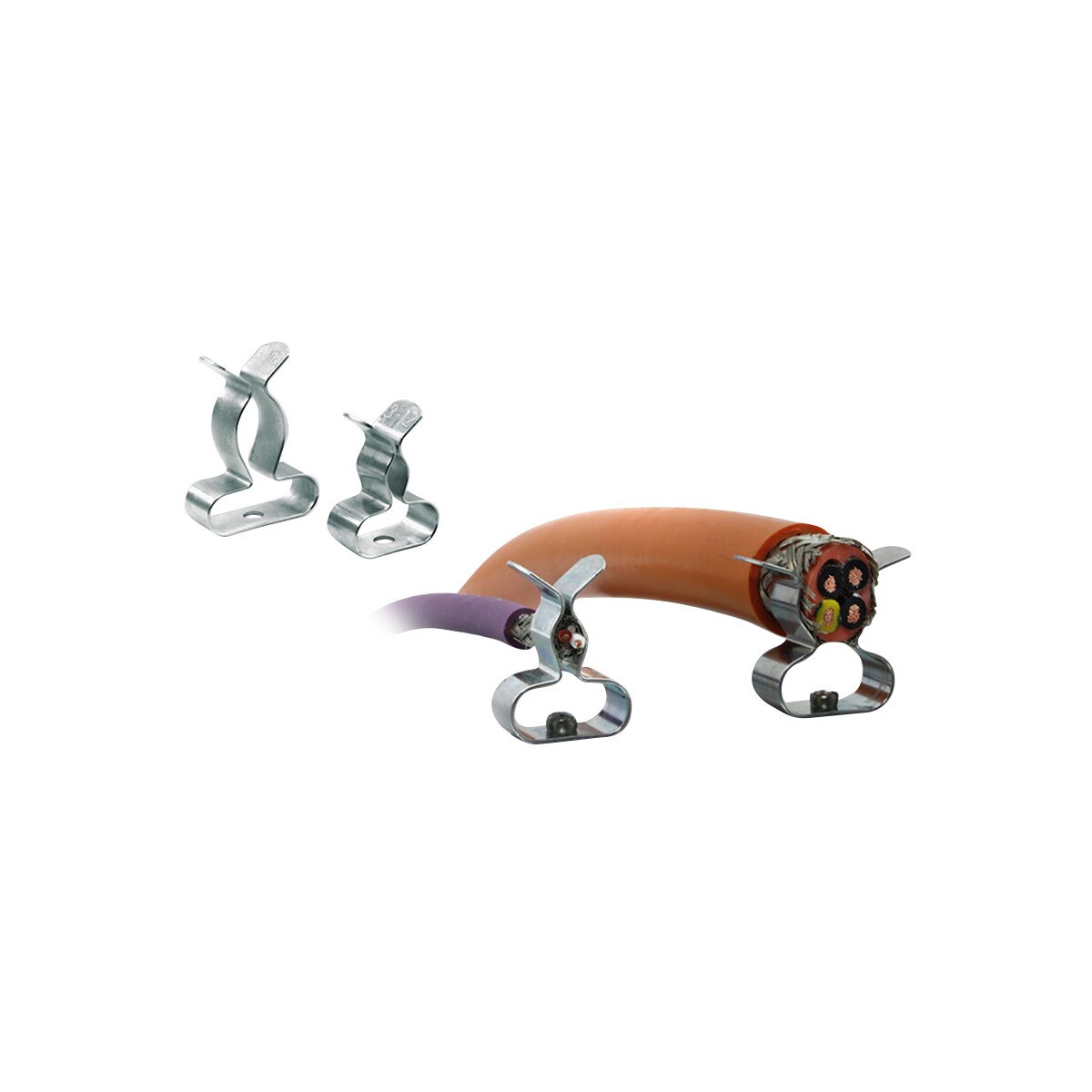

EMC shield clamps are used, where the shield of cables must be connected to the earth potential. They are easy to use and effective in earthing single cable shields.
The EMC cable clamps offer a large contact area to the cable shield. In comparison to conventional shielding brackets an up to 50% higher contact area can be achieved when using icotek EMC shield clamps. The specified clamping range can be exceeded up to 10%.
Due to its special design the clamping ranges of the MSKL are very large while the dimensions are comparatively small. (Example: MSKL 3-12, assembled with a 12 mm cable shield: width 26.25 mm).
The shield clamps can be easily attached via rivet.
| Material | Shield clamp: Spring steel, zinc plated |
| Mounting options | Riveting |
| Mounting location | universal |
