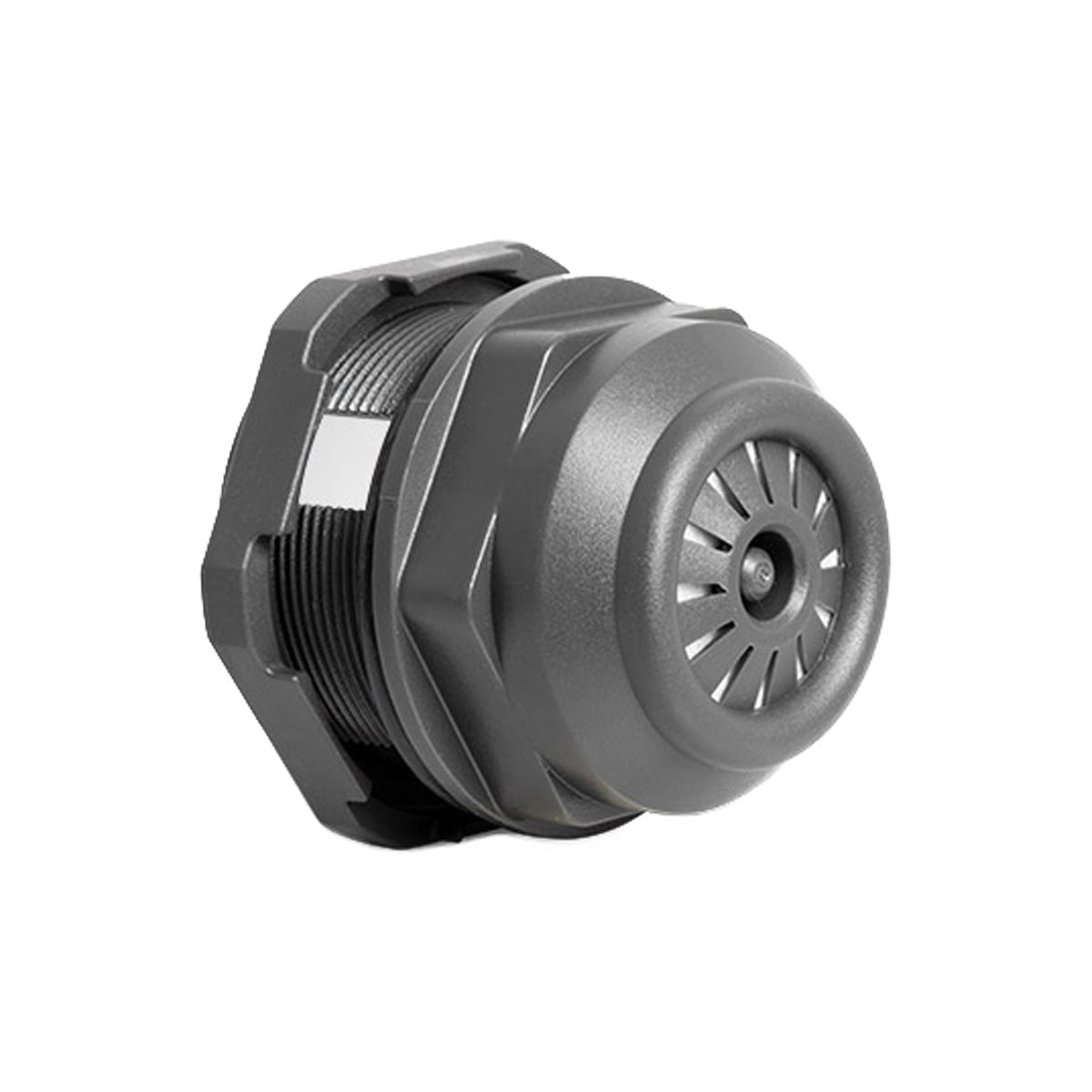

Electrical Enclosure Condensation Drain, M50 IP66 IP67 IP69K
In enclosures and housings with a high degree of protection, temperature differences result in condensation. By using a drainage device, it is possible to safely drain off the condensate without losing a maximum enclosure protection of IP66. A water-permeable membrane ensures the drainage of the enclosure due to its capillary effect. The design prevents splash water from entering the interior of the enclosure.
The drainage device is fixed in the bottom of the enclosure using the union nut in a hole of Ø 50.5 +0.5 mm. Make sure that the sealing ring is on the outer housing wall and that the hole is free of burrs.
| Length | 49.5 mm |
| Width | 60 mm |
| Height | 60 mm |
| Mounting height | 28.5 mm |
| Cut-out size, round | 50.5 mm |
| Thread | M50 × 1,5 |
| Water permeability (5 mm water column) | 200 ml/h |
| IP rating (EN 60529) | IP66, IP67, IP69K |
| Operating temperature | -45 C° to 70 C° |
| Mounting options | Fasten with locknut |
TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
