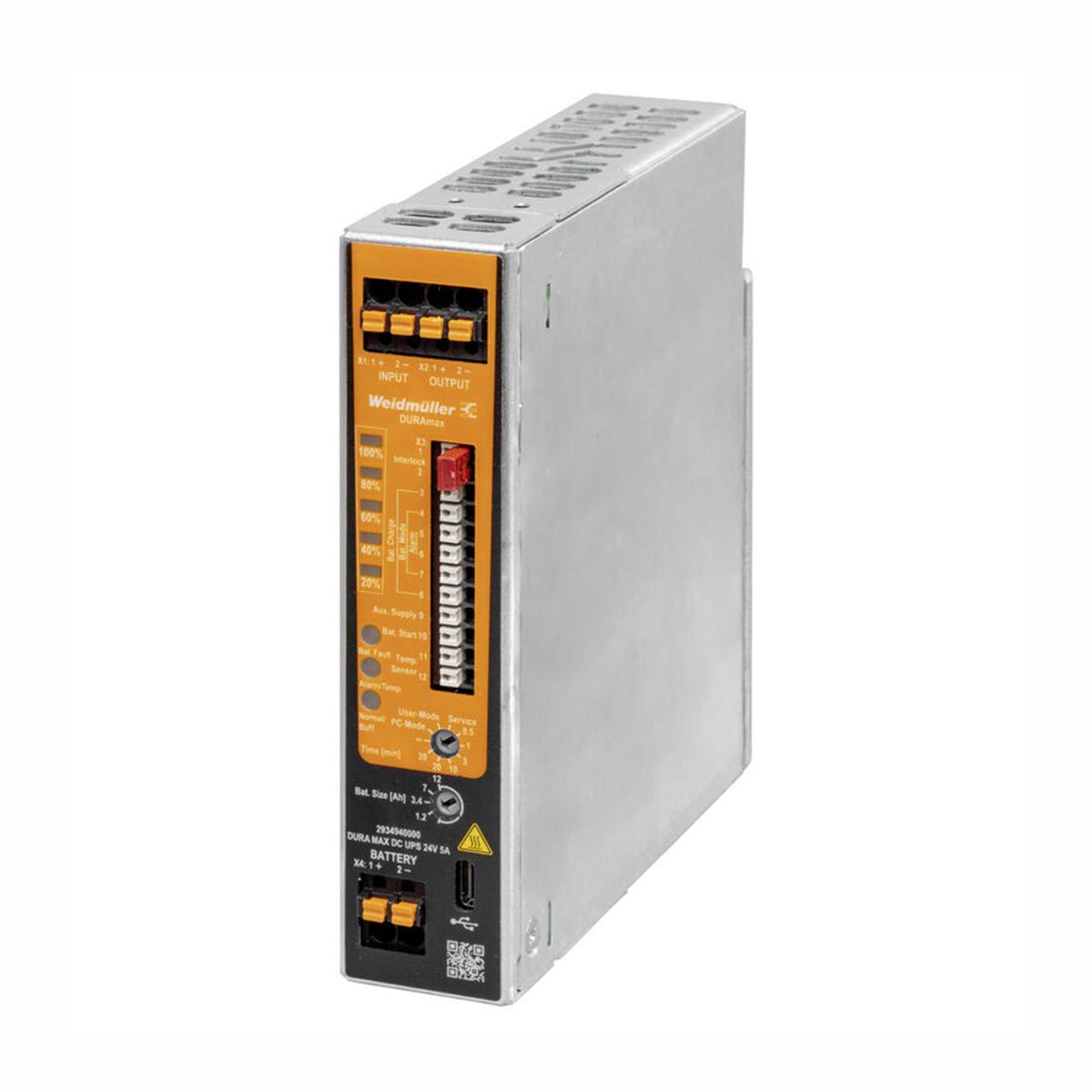

DURAmax DC-UPS 24V 5A UPS Module
Ask an expert!
The Weidmüller DURAmax DC-UPS 24V 5A is a compact, DIN-rail mounted uninterruptible power supply module for 24VDC industrial control systems. When mains power fails, the DURAmax bridges the gap instantly — keeping PLCs, sensors, and critical loads running without interruption. With support for lead-acid VRLA batteries from 1.2Ah to 100Ah and configurable via USB-C, it is the logical upgrade from any existing 24VDC UPS control module in service today. Made in Germany, CRA Ready, and certified to CE, UL, and DNV standards.
| Output Voltage | 24V DC |
|---|---|
| Output Current | 5A |
| Output Power | 120W |
| Input Voltage Range | 18–30V DC |
| Efficiency | Typ. 98% |
| Battery Compatibility | Lead-acid VRLA, 1.2–100Ah (Weidmüller DURA ECO LA-BAT or user-supplied) |
| Hold-Up Time | Seconds to several hours (battery dependent) |
| Connection Technology | PUSH IN |
| Configuration Interface | USB-C (free DURAmax DC UPS Manager software) |
| Battery Diagnostics | Detection (1×/min), short-circuit test (weekly), SOH test (monthly) |
| Status Indication | LED bargraph (State of Charge), green/yellow/red fault LEDs |
| Remote Monitoring | Relay and digital contacts for PLC/controller integration |
| Housing | Metal, DIN-rail mount |
| Dimensions (H×W×D) | 130 × 30 × 125 mm |
| Certifications | CE, UL Listed (Class 1 Div 2), DNV, CRA Ready |
| Country of Manufacture | Germany |
| Part Number | 2934940000 |
- Automatic monthly state-of-health (SOH) battery testing — know your battery is ready before it is needed
- Cold start function — activates battery mode with no mains supply connected
- Interlock input — isolate battery and UPS via external switch
- Compatible with Weidmüller DURAeco LA-BAT batteries and user-supplied 24VDC VRLA batteries
- Compact 30mm DIN-rail footprint — minimal panel space
Available from TROPAC — contact our team for pricing, battery selection guidance, or a product demonstration.
