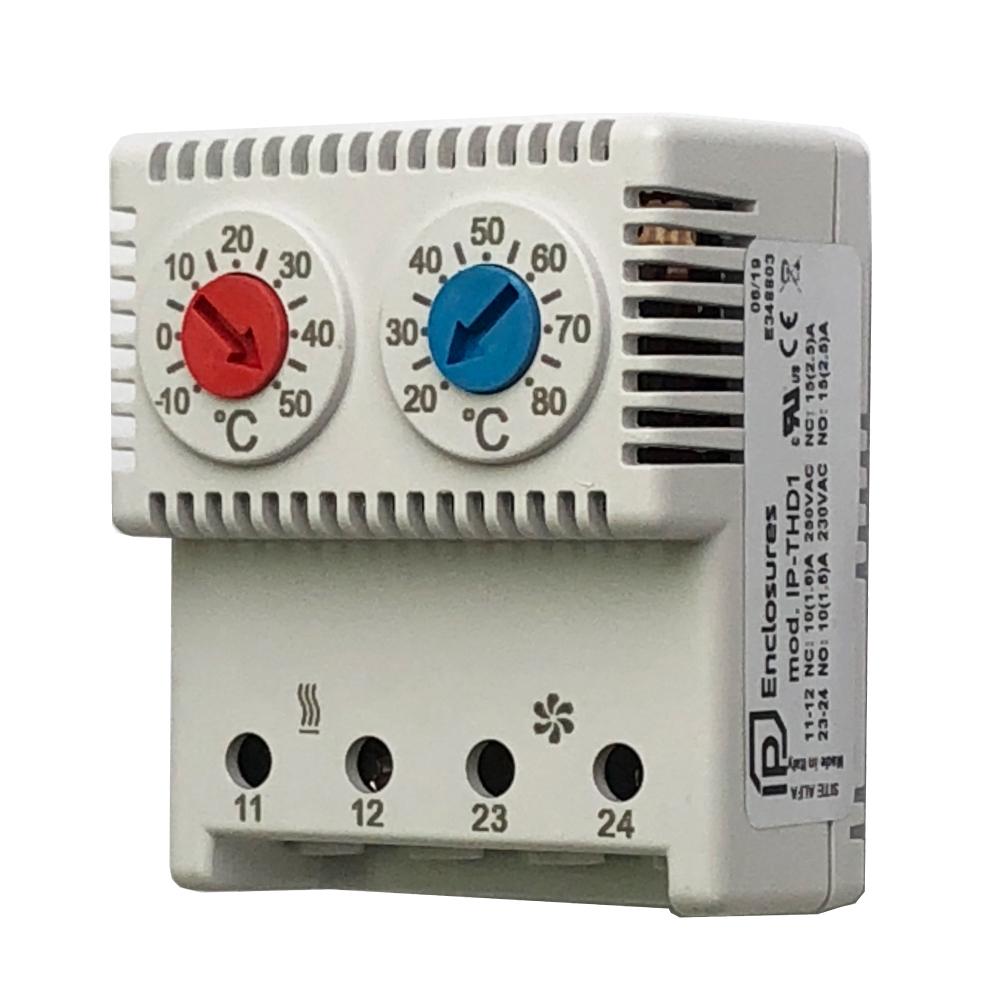

Double Thermostat for Fan & Heater NC NO, -10/+50 +20/+80°C — IP Enclosures

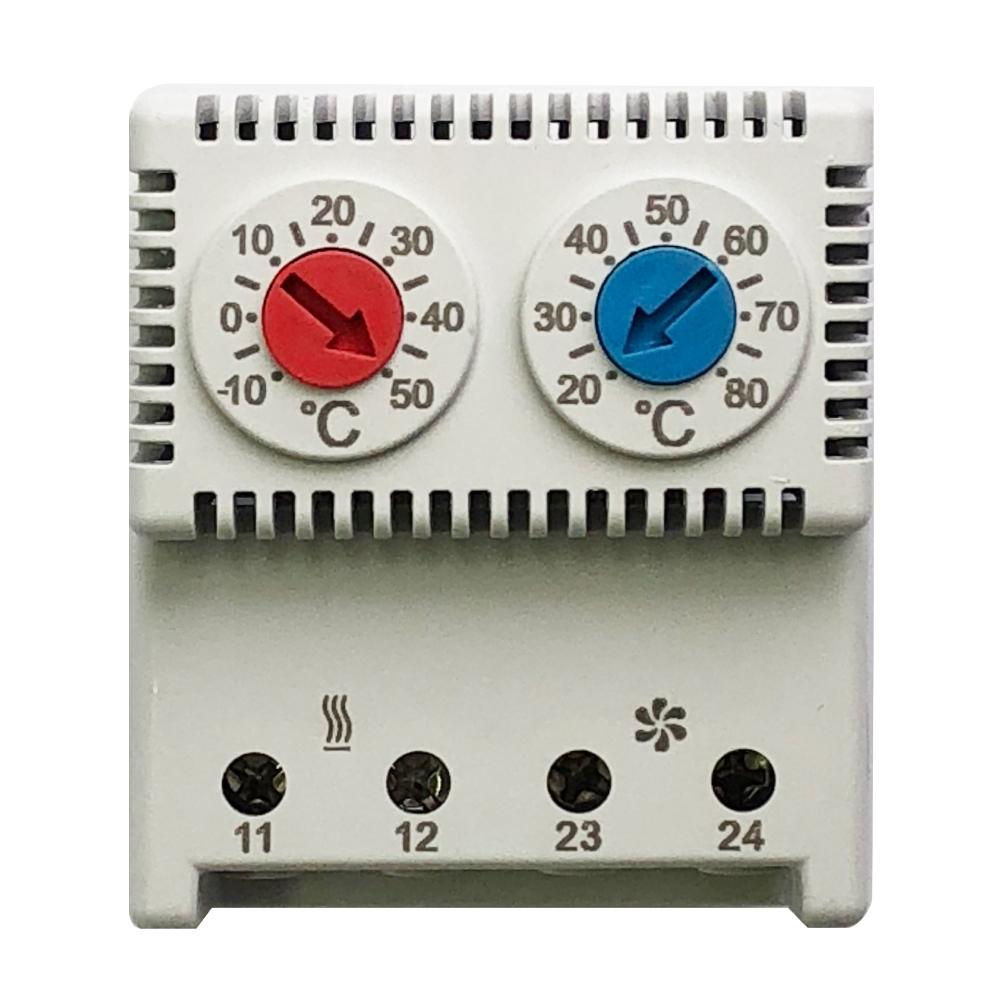

IP-THD1 - image 2
Double Thermostat for Fan & Heater NC NO, -10/+50 +20/+80°C — IP Enclosures
IP-THD1 - image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Double Thermostat for Fan & Heater NC NO, -10/+50 +20/+80°C

SKU
$78.64 ex. GST $86.50 inc. GST
Min. order: 10
In stock
50 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Contacts 1NO+1NC
Product Datasheet PDF

Double Thermostat for Fan & Heater NC NO, -10/+50 +20/+80°C

High quality Italian compact double thermostat for 35mm DIN rail mounting. Based on bimetallic junction, provides high capacity and separated normally open and normally closed contacts. Suitable for controlling ventilation filter fan units.

Features Unit IP-THD1
Contact function – N/C | N/O Consumable
Temperature setting range °C -10/+50 | +20/+80
Precision °C ±4
Hysteresis °C 7
Max. switching current: –
at 250Vac resistive load (inductive load) A 10 (1.6)
at 125Vac resistive load (inductive load) A 15 (2.5)
Max. switching power in Vdc W 30
Temperature sensor type – Thermostatic bimetal
Contact type – Snap action
Contact resistance mOhm < 10
Service life cycles > 100.000
Electrical connections – 2-pole terminal for 2.5 mm² wire
Casing – PA6 ; UL94 V0 self-estinguishing ; light grey RAL 7035
Protection degree EN60529 – IP20
Operating temperature °C(°F) -25/+80 (-13/+176)
Storage temperature °C(°F) -45/+80 (-49/+176)
Mounting – Clip for mounting on DIN rail 35 mm EN50022
Installation position – variable
Conformity – CE – UL cruus File n.E348803
Dimensions HxWxD mm 61x53x35
Weight g 80

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
