Distribution Block 1 x 70mm Input, 2 x 25mm + 3 x 16mm Outputs | WPD 106 1X70/2X25+3X16 BL

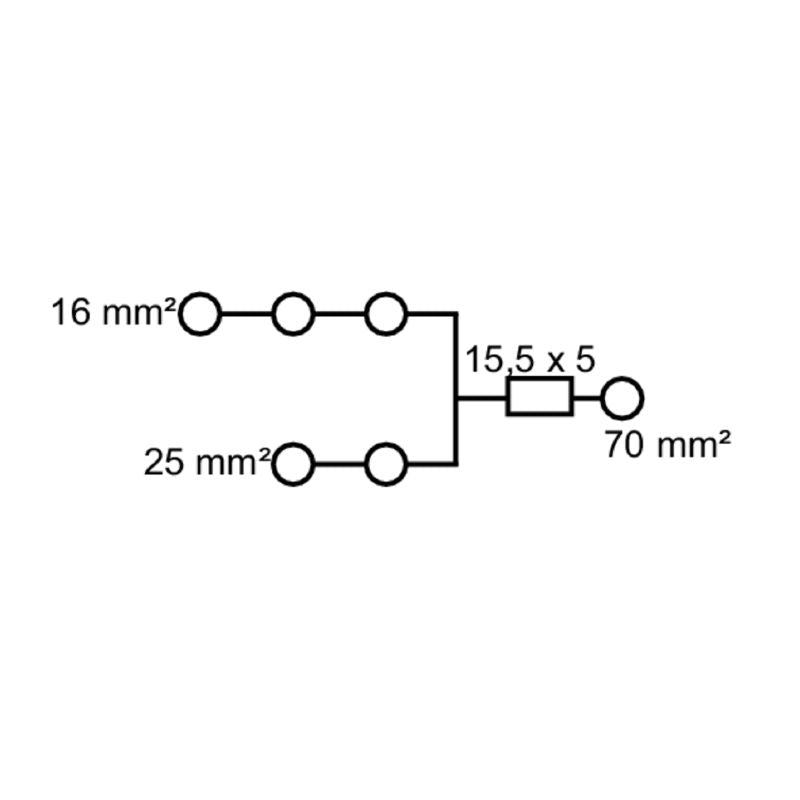

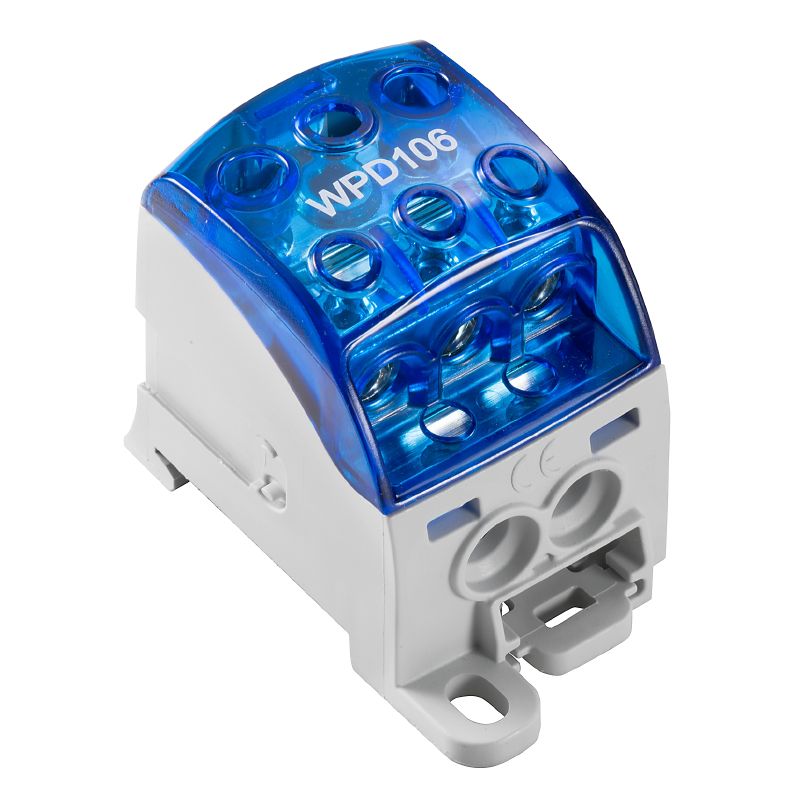

Distribution Block 1 x 70mm Input, 2 x 25mm + 3 x 16mm Outputs | WPD 106 1X70/2X25+3X16 BL is a high-performance power distribution block designed for efficient and secure electrical power distribution. It features a single-pole configuration with a robust current rating of 215A and a voltage rating of 1kV. The block accommodates various wire sizes: one input connection for up to 70mm², two output connections for up to 25mm² each, and three additional output connections for up to 16mm² each. All connections utilize reliable screw terminals, ensuring secure and maintenance-friendly installations. The unit is housed in a durable blue Wemid casing with a UL 94 V-0 flammability rating, facilitating easy identification in complex wiring systems. Its compact design, with dimensions of 50.4mm depth, 74.5mm height, and 39.5mm width, allows for space-saving installation on TS 35 DIN rails or mounting plates. The WPD 106 operates efficiently within a temperature range of -50°C to 130°C, making it ideal for industrial applications requiring dependable power distribution solutions.
