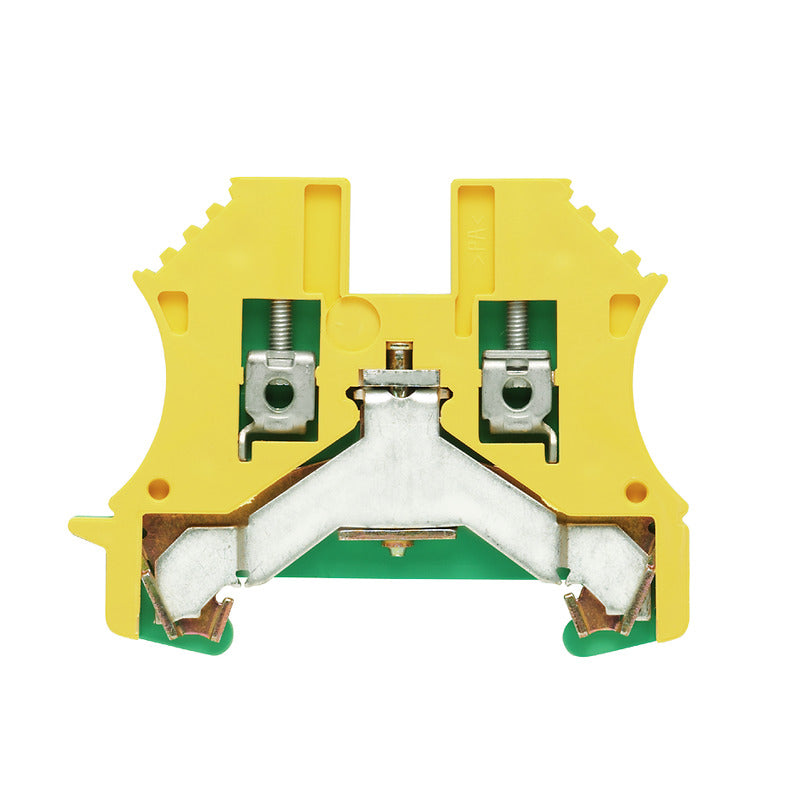

DIN Terminal W-Series Screw Connection 2.5mm Earth - WPE 2.5 — Weidmuller
1010000000 - image 2
DIN Terminal W-Series Screw Connection 2.5mm Earth - WPE 2.5 — Weidmuller
1010000000 - image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Weidmuller

DIN Terminal W-Series Screw Connection 2.5mm Earth - WPE 2.5

SKU
$4.64 ex. GST $5.10 inc. GST
In stock
505 in stock across 2 warehouses
  • Type Earth
  • Colour Yellow/Green
  • IP Rating IP20
  • Country of Origin Germany
  • Standards
    • IEC 60947-7-2
  • Certifications
    • CE, UL (E60693), CSA, RoHS
  • Voltage 800 V
  • Current 24 A
  • Contacts 2 Contact
  • Conductor Size 2.5 mm²
  • Conductor Count 2
  • Size 2.5mm

Standards & certifications

IP20Ingress protection CE, UL (E60693), CSA, RoHSHazard-free IEC/EN 60947-7-2 Tested standards
Product Datasheet PDF
DIN Terminal W-Series Screw Connection 2.5mm Earth - WPE 2.5

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
