Din Rail Power Supply 240W 24V 10A — Versch
Din Rail Power Supply 240W 24V 10A — Versch

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Versch

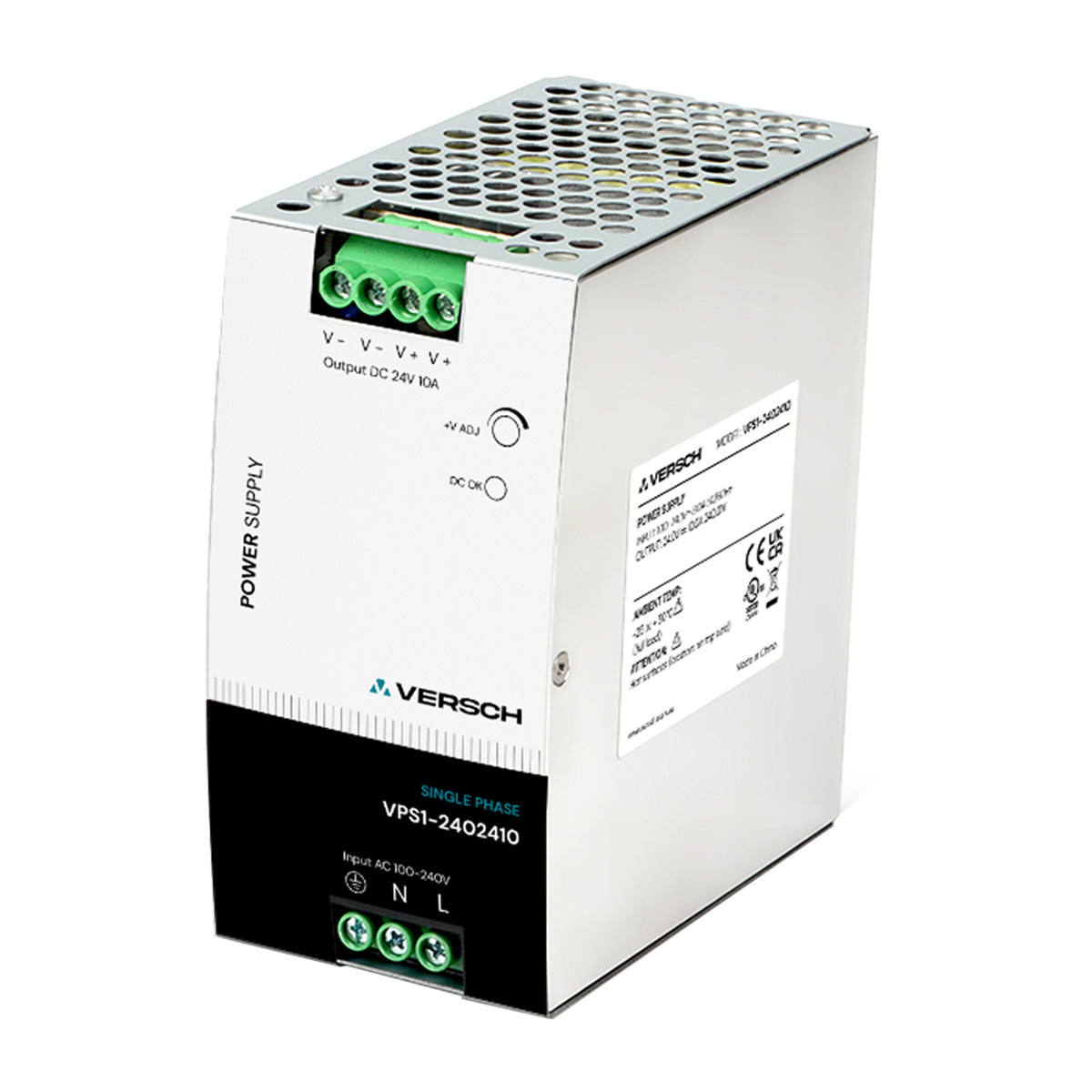

Din Rail Power Supply 240W 24V 10A

SKU
In stock
Stock on hand
NSW WarehouseAuburn, NSW 2144
52 in stock
QLD WarehouseBells Creek, QLD 4551
340 in stock
VIC WarehouseEpping, VIC 3076
58 in stock
Updated 2 minutes ago
Shipping & pickup →
$114.34 ex. GST $125.77 inc. GST
Free Shipping

Ask an expert!

Chat Email 1300876722

Din Rail Power Supply 240W 24V 10A

VERSCH metal case power family designed with slim housing and for full range AC input from 90V AC to 264V AC.
The series are single phase PSU, providing adjustable DC output voltage. They have high efficiency and operate in wide temperature
range. The series can widely used for industrial automation & control systems, varied equipments etc.

Electrical Characteristics

Model No. VPS1-2402410
DC Voltage 24V
Rated Current 10A
Rated Power(Max) 120W
Ripple & Noise(Max) 150mVp-p
Input Voltage 90 - 264VAC 127-370VDC
Inrush Current 20A/115VAC 35A/230VAC
Efficiency 85.50%
Working Temperature -20~+70 C(Refer to “Derating Curve“)
Withstand Voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Protection Short Circuit/Over Load/Over Voltage/Over Temperature
Connection I/P:3 poles terminal Block, O/P: 4 poles terminal Block

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
