Din Rail Power Supply 120W 24V 5A — Versch
Din Rail Power Supply 120W 24V 5A — Versch

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Versch

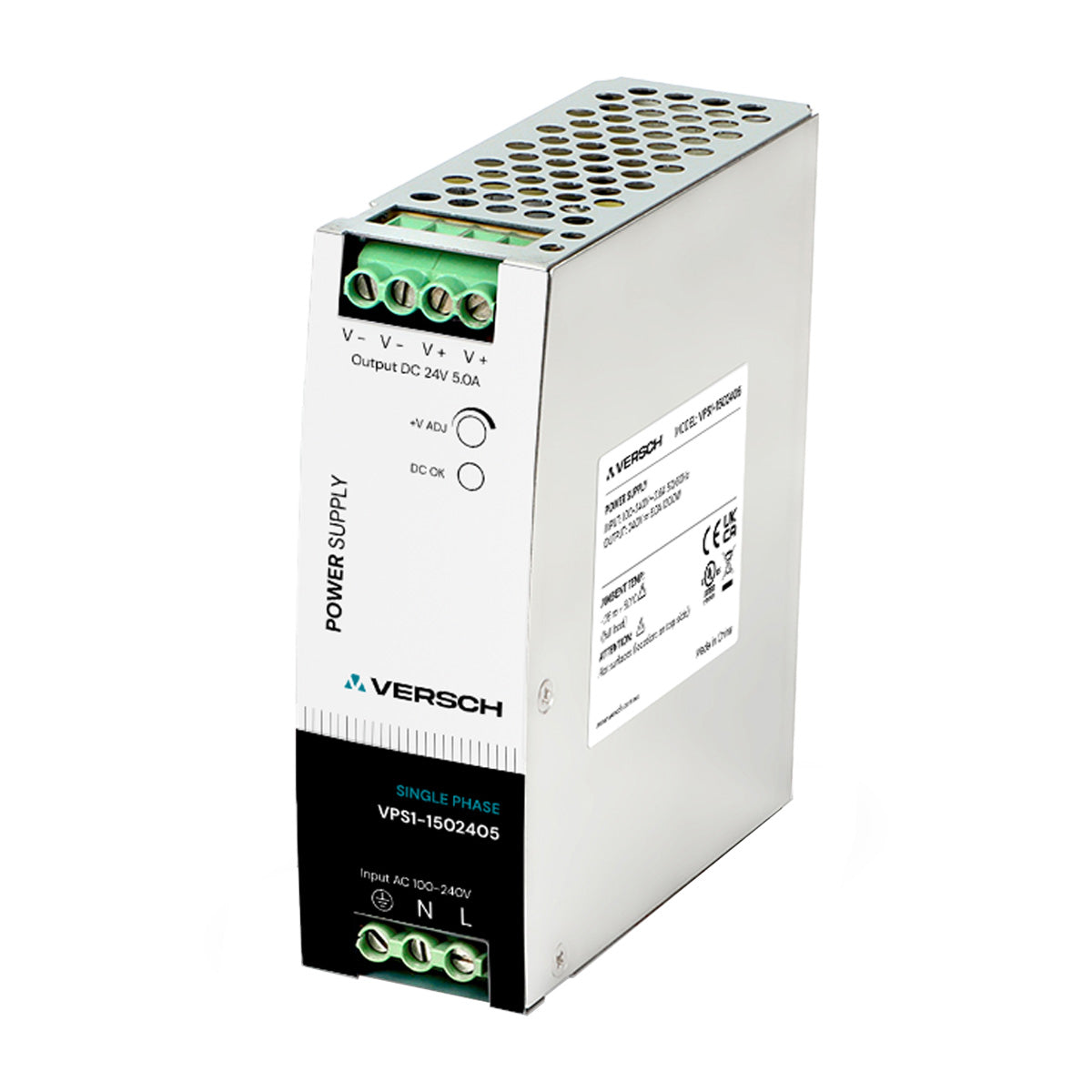

Din Rail Power Supply 120W 24V 5A

SKU
$62.68 ex. GST $68.95 inc. GST
In stock
419 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Voltage 24V
  • Current 5A
  • Size 120W

Din Rail Power Supply 120W 24V 5A

VERSCH metal case power family designed with slim housing and for full range AC input from 90V AC to 264V AC.
The series are single phase PSU, providing adjustable DC output voltage. They have high efficiency and operate in wide temperature
range. The series can widely used for industrial automation & control systems, varied equipments etc.





Electrical Characteristics

Model No. VPS1-1502405
DC Voltage 24V
Rated Current 5A
Rated Power(Max) 120W
Ripple & Noise(Max) 120mVp-p
Input Voltage 90 - 264VAC 127-370VDC
Inrush Current 20A/115VAC 35A/230VAC
Efficiency 88.0%
Working Temperature -20~+70 C(Refer to “Derating Curve“)
Withstand Voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Protection Short Circuit/Over Load/Over Voltage/Over Temperature
Connection I/P:3 poles terminal Block, O/P: 4 poles terminal Block
