DIN Rail Mount GPO Outlet

DIN Rail Mount GPO Outlet

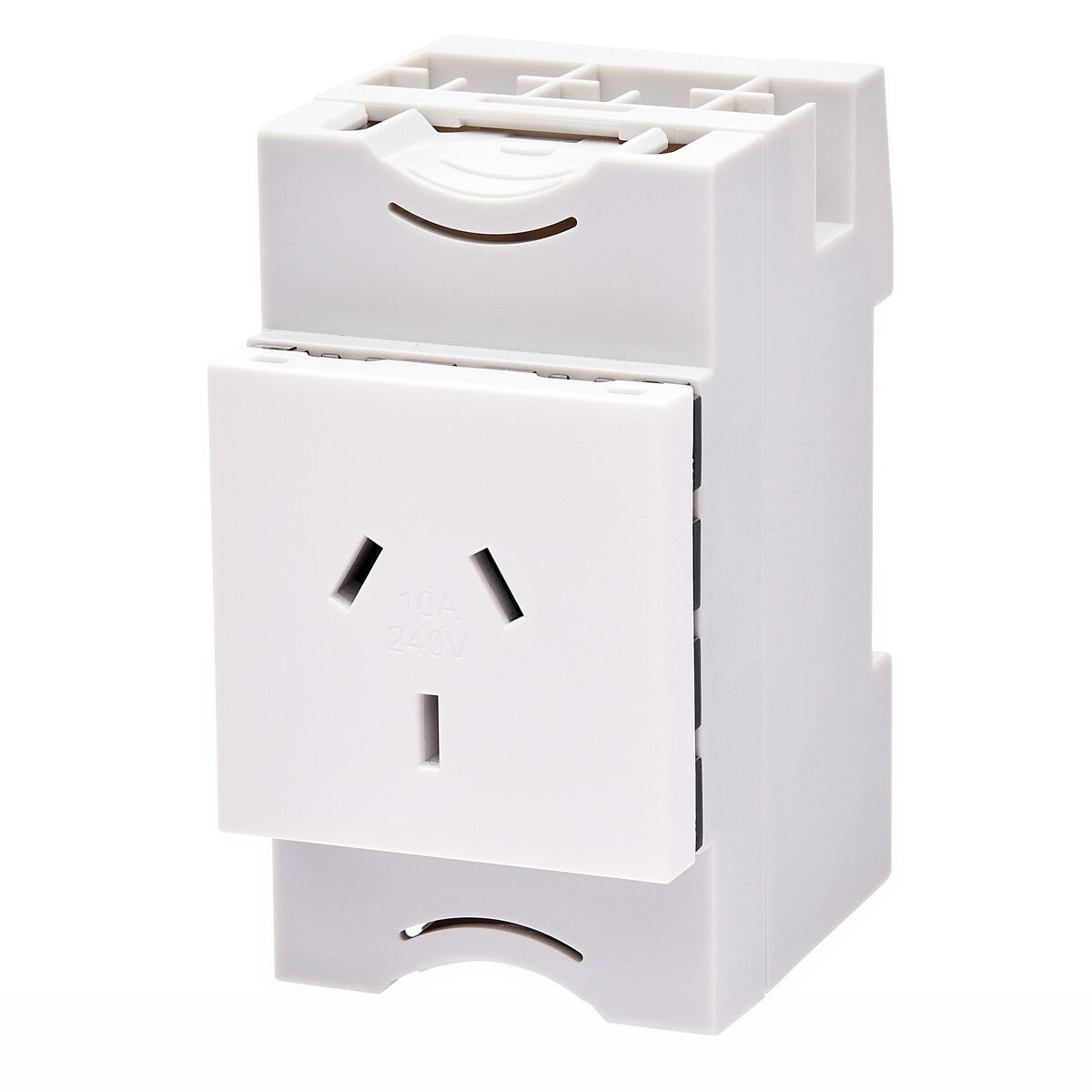

A 10 A, 240 V AC Australian Type I general power outlet that clips straight onto 35 mm DIN rail, giving technicians a convenient service socket for laptops, test instruments and hand tools inside control panels, switchboards and PLC cabinets, without cutting the enclosure door or fitting a separate wall plate.

Features and Specifications

Protection: IP20 (finger-safe once installed in the enclosure).

Standards (& Conformities): CE, RoHS (compliant without exemption), REACH (no SVHC above 0.1 wt%). DNV type approval on the socket insert (Certificate TAA000022B).

Assembly:

Supplied as a two-part Weidmüller FrontCom Vario combination:
Socket insert: IE-FCI-PWB-AU-10A (Weidmüller Order No. 1546590000), Insert Power large, Type I socket, 10 A / 240 V AC
Rail adaptor: IE-DINRAIL-AD-PWB (Weidmüller Order No. 2534680000), TS 35 rail adaptor for socket inserts

Housing:

Polycarbonate socket insert fitted into a PC/ABS rail adaptor. Adaptor footprint 45 mm wide x 83 mm high (88.9 mm including the rail clip) x 44 mm deep, occupying a 45 mm width on the rail.

Connection:

Screw connection, 9 mm strip length. Rigid or flexible conductors 1.5–4 mm² without ferrule; 1.5–2.5 mm² with wire end ferrule.

Operating Conditions:

Operating temperature −5 °C to +40 °C for the assembly (limited by the socket insert; the rail adaptor alone is rated −25 °C to +70 °C). Storage −10 °C to +70 °C.

What's Included: 1 x AU Type I 10 A socket insert, 1 x TS 35 DIN rail adaptor.

Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000.

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
