DC/DC Converter | PRO DCDC 96W 48V/12V 8A

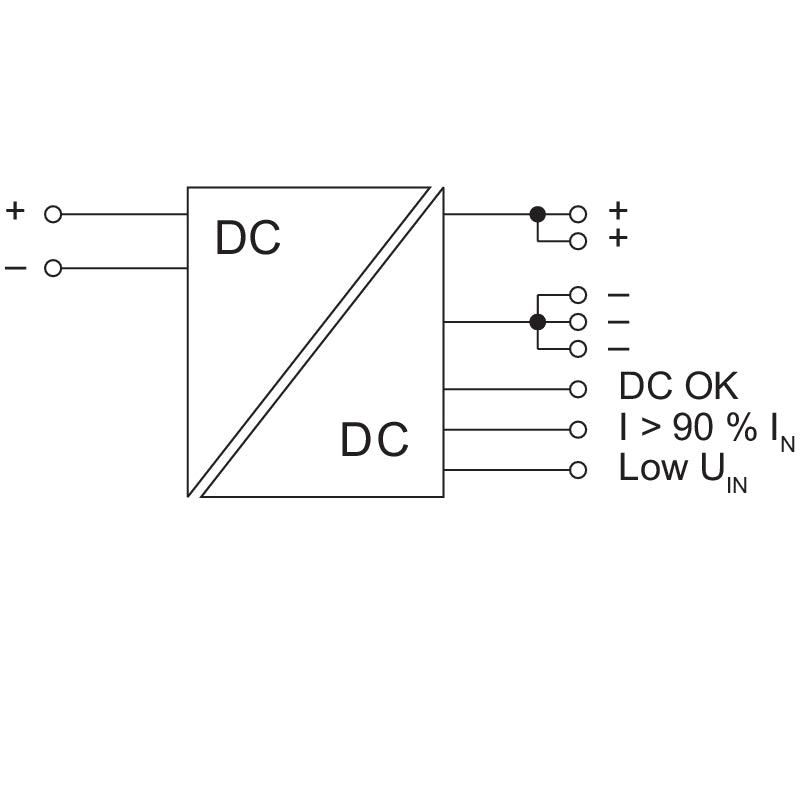

The Weidmüller PRO DCDC 96W 48V/12V 8A converts a 48 V DC bus down to an isolated 12 V DC output at 8 A, 96 W, over a wide 28 to 58 V DC input window. The high input range makes it the right choice on 48 V telecoms, solar and battery systems, where the bus voltage moves well away from nominal as the string charges and discharges.

• Input voltage: 48 V DC rated, 28 to 58 V DC range
• Input current: 107.9 VA nominal, inrush < 4 A
• Output voltage: 12 V DC, adjustable 5 to 15 V DC via front potentiometer

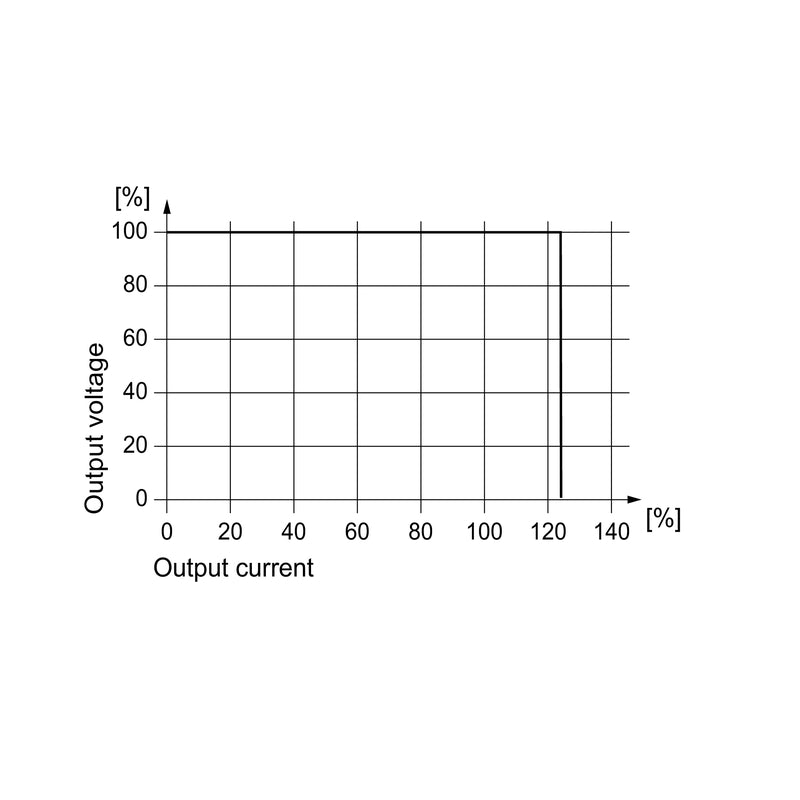

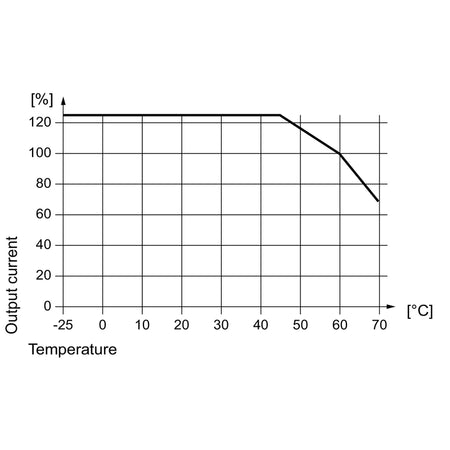

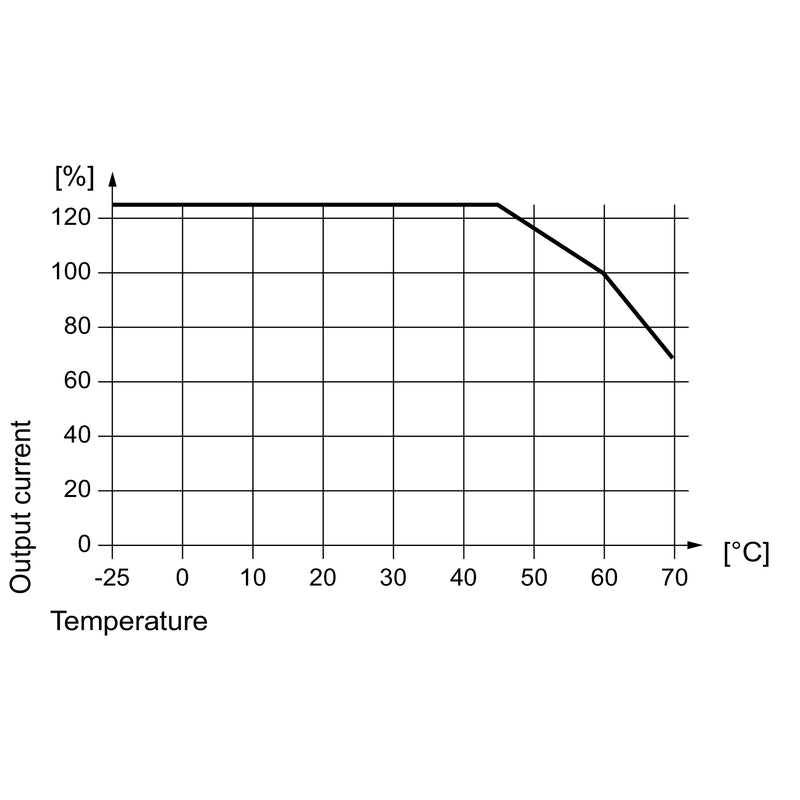

• Output current: 10 A at +45 °C, 8 A at +60 °C, 6 A at +70 °C (9.6 A max.)
• Output power: 96 W
• Residual ripple: ≤ 50 mV pp at full load
• Efficiency: > 89 %
• Isolation: 4 kV input to output, 2 kV input to earth, 0.5 kV output to earth
• Parallel operation: Yes, up to 3 units
• Connection: Screw connection (input and output), PUSH IN (signal)
• Dimensions (W x H x D): 32 x 130 x 120 mm
• Mounting: TS 35 DIN rail
• Operating temperature: −25 °C to +70 °C
• Protection degree: IP20
• Approvals: cULus (E470829), RoHS
