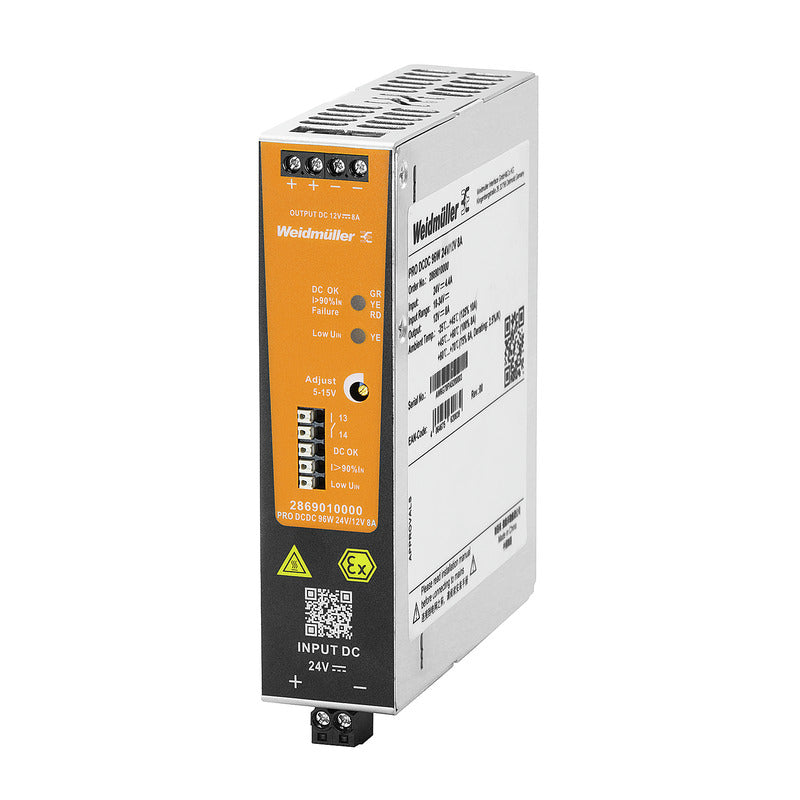

DC/DC Converter | PRO DCDC 96W 24V/12V 8A

The Weidmüller PRO DCDC 96W 24V/12V 8A steps a standard 24 V DC control supply down to an isolated 12 V DC rail at 8 A, 96 W. This is the unit for feeding 12 V field devices — radios, cameras, sensors, telemetry — from an existing 24 V cabinet supply, with 4 kV isolation keeping the two systems electrically separate.

• Input voltage: 24 V DC rated, 18 to 34 V DC range
• Output voltage: 12 V DC, adjustable 5 to 15 V DC via front potentiometer

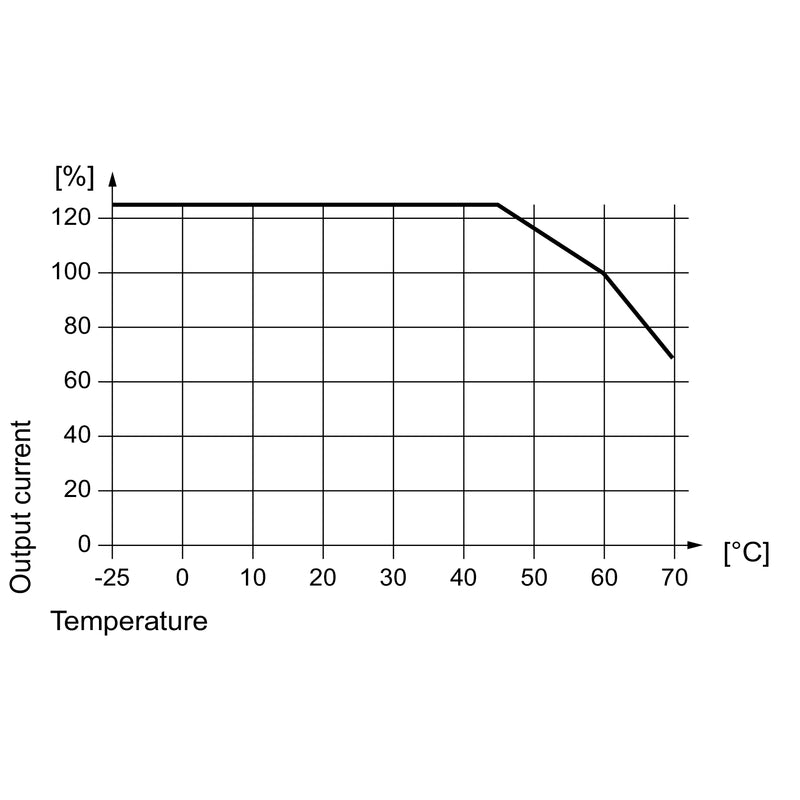

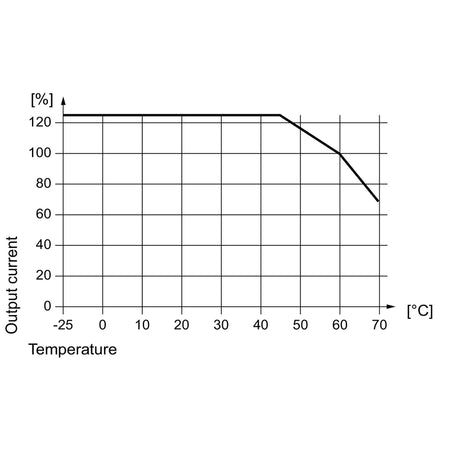

• Output current: 10 A at +45 °C, 8 A at +60 °C, 6 A at +70 °C (9.6 A max.)
• Output power: 96 W
• Efficiency: > 89 %
• Isolation: 4 kV input to output
• Parallel operation: Yes, up to 3 units
• Connection: Screw connection (input and output), PUSH IN (signal)
• Dimensions (W x H x D): 32 x 130 x 120 mm
• Mounting: TS 35 DIN rail
• Operating temperature: −25 °C to +70 °C
• Protection degree: IP20
• Approvals: cULus (E470829), RoHS
