DC/DC Converter | PRO DCDC 240W 48V/48V 5A

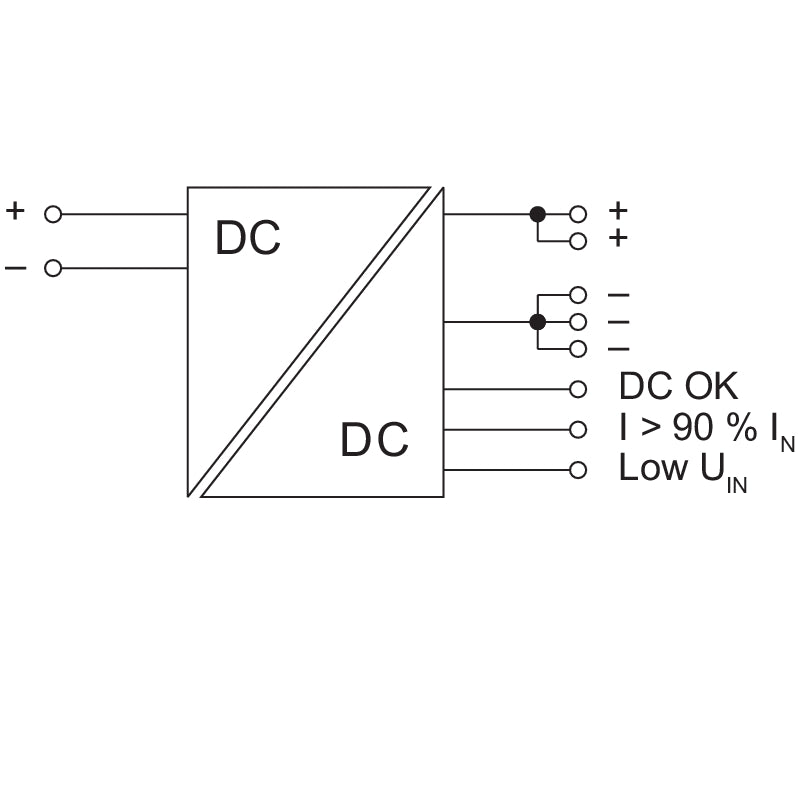

The Weidmüller PRO DCDC 240W 48V/48V 5A is a DIN rail DC/DC converter that produces a regulated, isolated 48 V DC output from a 48 V DC input. The wide 28-58 V DC input window suits battery-backed and telecom-style 48 V buses where the source voltage moves with the state of charge, and the 4 kV isolation keeps the load circuit clear of the source.

• Output: 48 V DC, 5 A (240 W continuous), adjustable 28.5-56 V

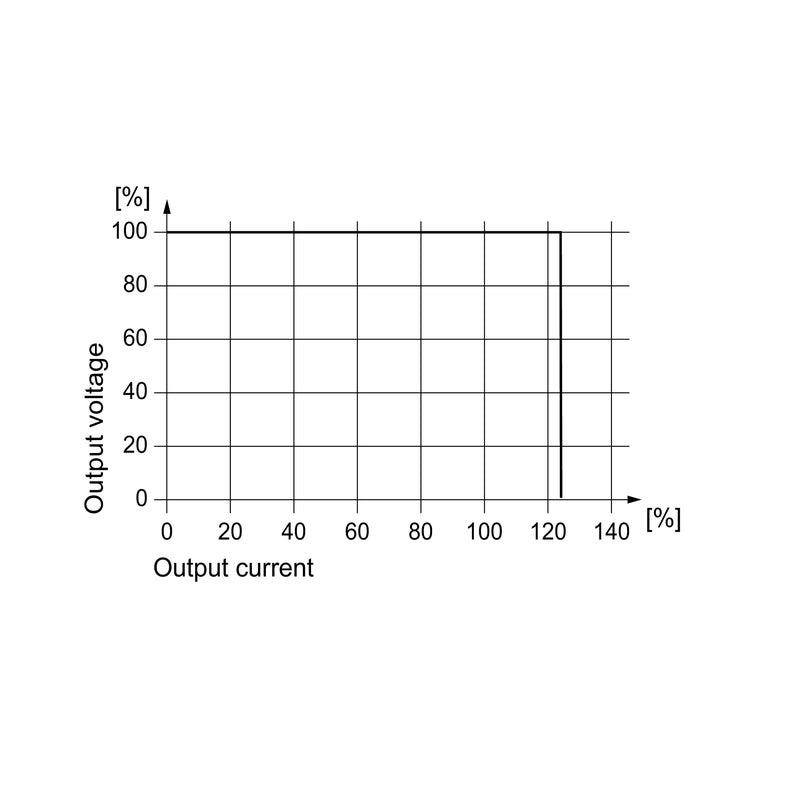

• Peak load: 600% of rated current for 15 ms
• Input: 28-58 V DC
• Efficiency: greater than 92%
• Isolation: 4 kV input to output; protection class III
• Connection: Screw terminals for input and output, PUSH IN for signals
• Mounting: TS 35 DIN rail, vertical orientation; 75% load derating in other orientations

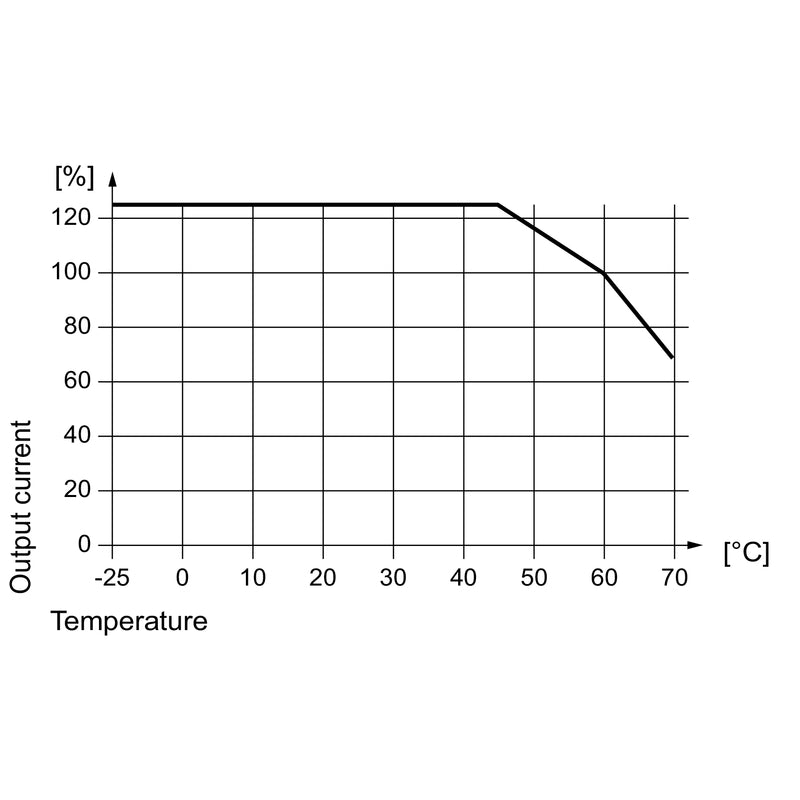

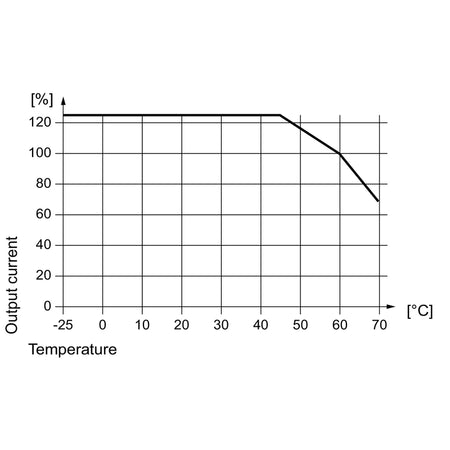

• Operating temperature: -25 °C to +70 °C; 6.25 A at 45 °C, 3.75 A at 70 °C
• Dimensions: 43 x 130 x 120 mm (W x H x D)
