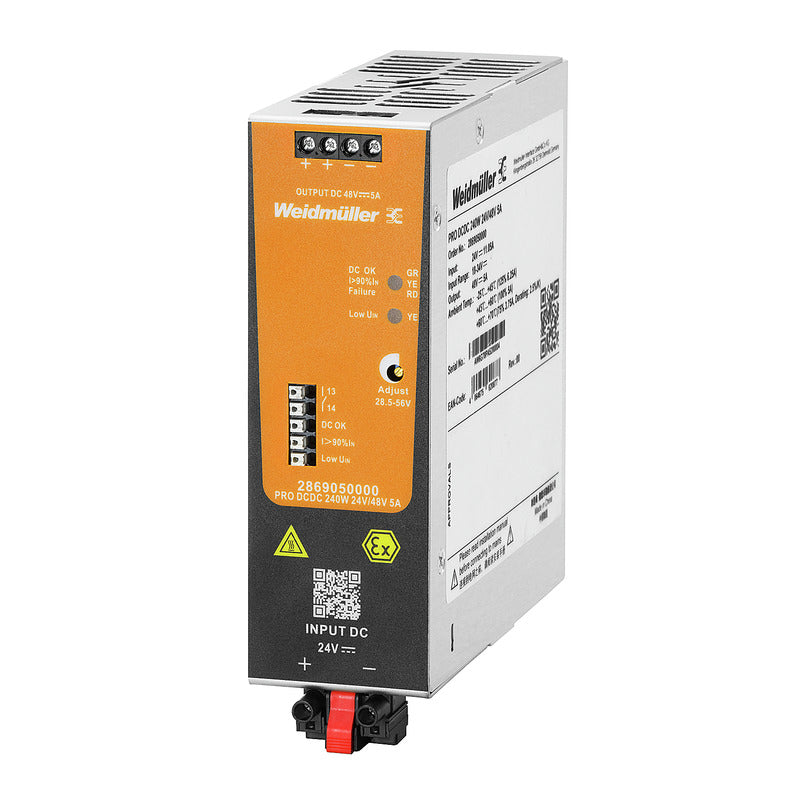

DC/DC Converter | PRO DCDC 240W 24V/48V 5A

The Weidmüller PRO DCDC 240W 24V/48V 5A is a DIN rail DC/DC converter that steps a 24 V DC supply up to a regulated, galvanically isolated 48 V DC output. It suits panels that already run a 24 V control rail but need 48 V for telecoms equipment, PoE injectors or 48 V actuators, avoiding a second mains-fed supply and its associated switchgear.

• Output: 48 V DC, 5 A at 60 °C, adjustable 28.5-56 V
• Continuous power: 240 W
• Input: 18-34 V DC
• Power boost: 600 % for 15 ms
• Efficiency: > 90 %
• Isolation: 4 kV input/output, protection class III, IP20
• Connection: screw terminals, TS 35 DIN rail mounting, parallel connection of up to 3 units

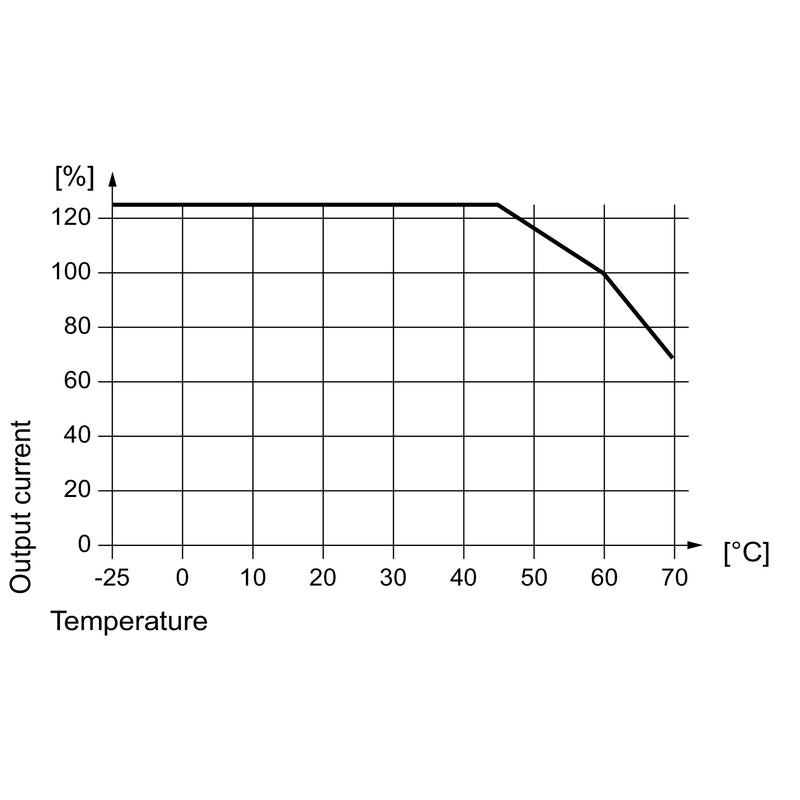

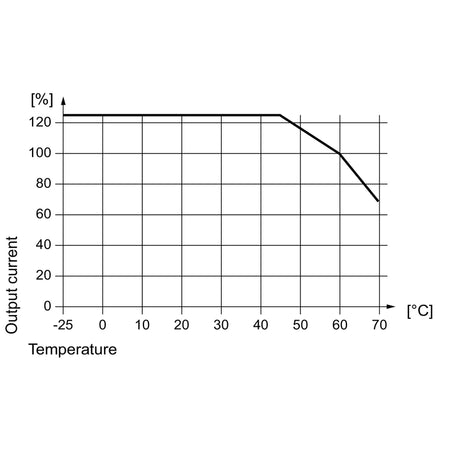

• Operating temperature: -25 °C to 70 °C, 75 % load derating for non-standard mounting orientation
• Dimensions: 43 x 130 x 120 mm (W x H x D)
