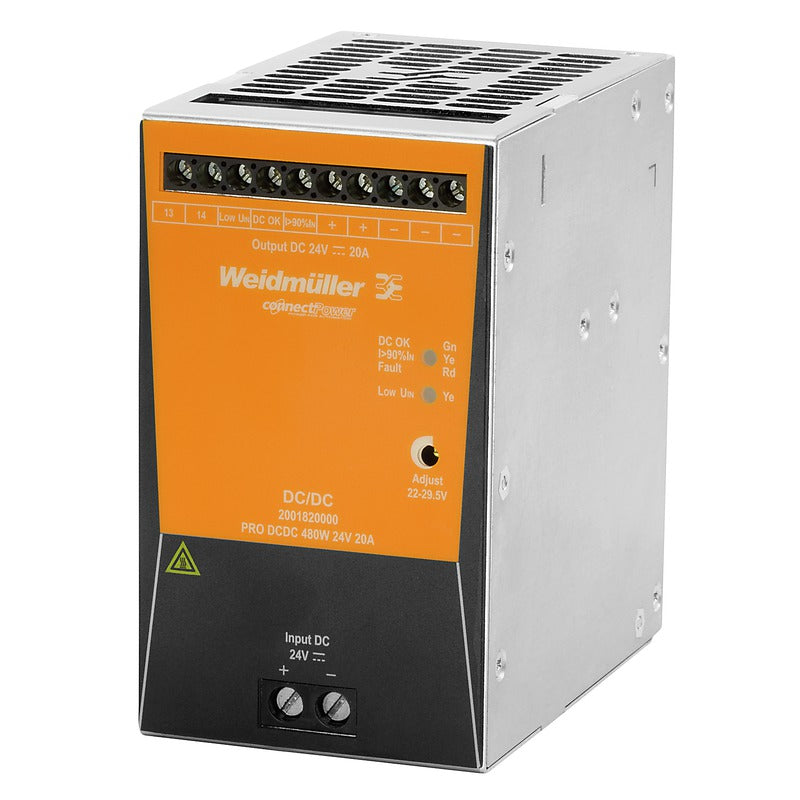

DC/DC Converter 480W 24V 20A | PRO DCDC

The Weidmüller PRO DCDC 480W 24V 20A is a DIN rail DC/DC converter that takes a nominal 24 V DC input and delivers a regulated, galvanically isolated 24 V DC output. It is used to restore bus voltage at the far end of long cable runs or to separate a sensitive load circuit from a shared supply, and it keeps regulating down to 14 V input, which suits battery-backed systems.

• Output: 24 V DC ±1%, 20 A (480 W continuous), adjustable via potentiometer
• Input: 14-32 V DC in operation; 18-32 V DC to start

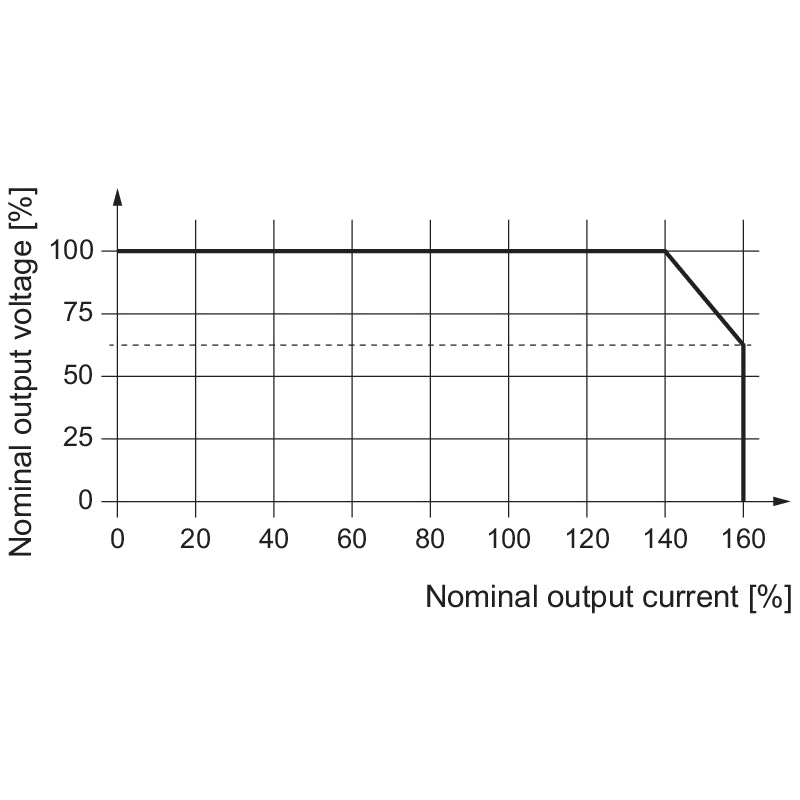

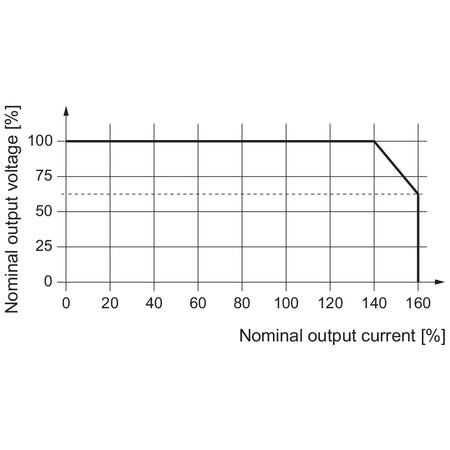

• Peak load: 150% for 5 s, 200% for 200 ms, 300% for 100 ms, 600% for 20 ms
• Efficiency: greater than 93% typical
• Isolation: 1.5 kV input to output; 0.5 kV output to earth
• Connection: Screw terminals
• Mounting: TS 35 DIN rail, horizontal

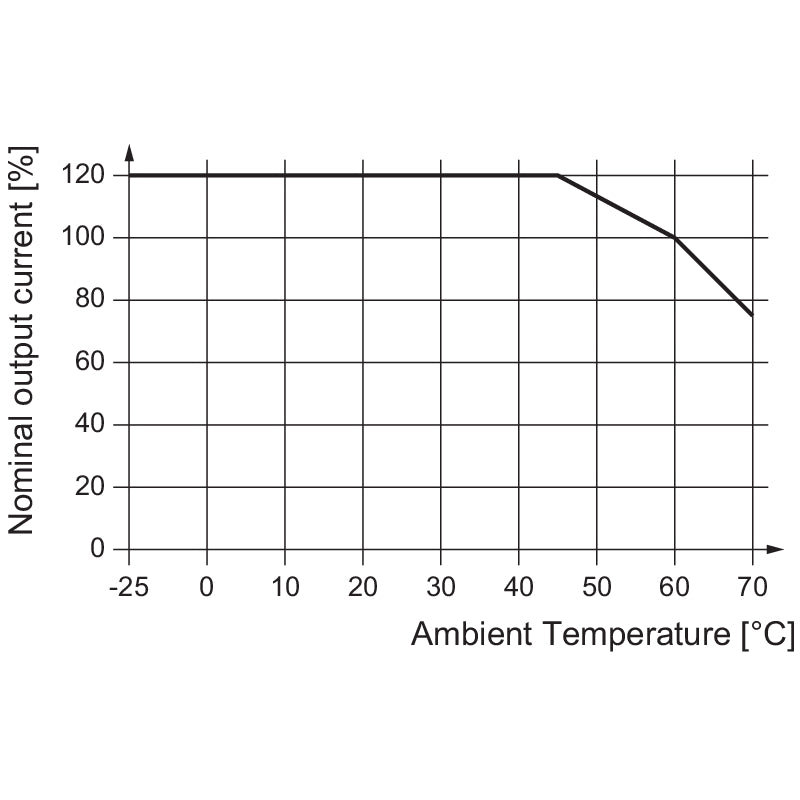

• Operating temperature: -25 °C to +70 °C, derating above 60 °C
• Dimensions: 75 x 130 x 120 mm (W x H x D)
