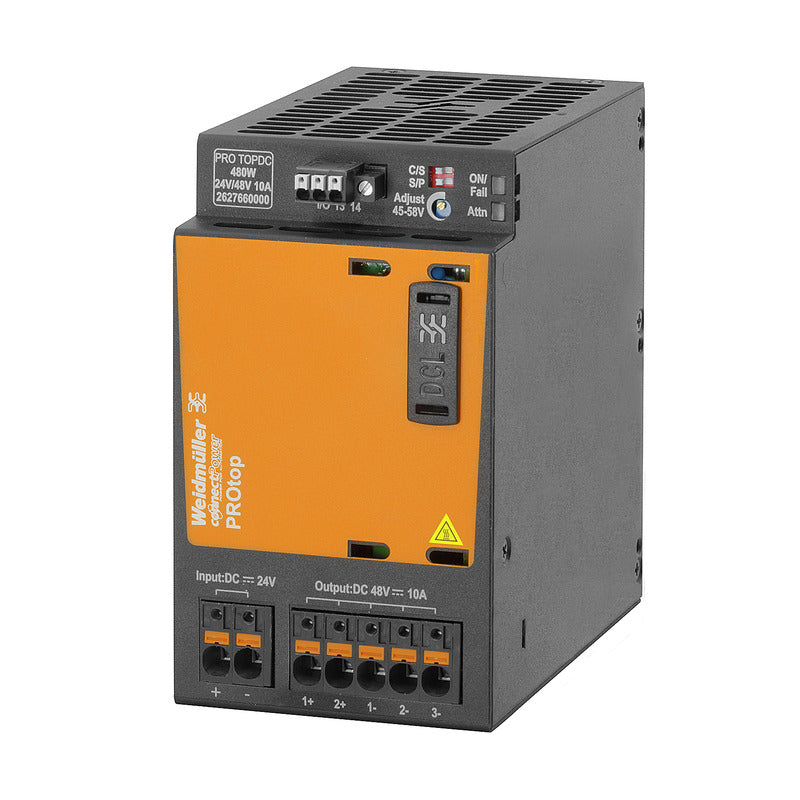

DC/DC Converter 24V/48V 10A | PRO TOP DC

The Weidmüller PRO TOPDC 24V/48V 10A is a DIN rail DC/DC converter that raises an existing 24 V DC supply to a regulated 48 V DC bus at up to 10 A. It is used where only part of a machine needs 48 V – a drive, a long cable run or a 48 V actuator group – without adding a second mains-fed supply, and its integrated ORing MOSFET lets several units be paralleled while decoupling an internally faulted unit.

• Output: 48 V DC ±1%, 10 A, 480 W continuous; adjustable 45-56 V
• Peak load: 200% of rated current for 5 s; 500% for 15 ms
• Input: 24 V DC rated, 14-31.2 V DC (linear derating below 18 V)
• Efficiency: 91%
• Isolation: 1.41 kV input to output; protection class III, SELV/PELV
• Parallel operation: Up to 10 units, integrated ORing MOSFET
• Connection: PUSH IN with actuator; signal PUSH IN 0.14-1.5 mm²
• Mounting: DIN rail, 50 mm clearance above and below

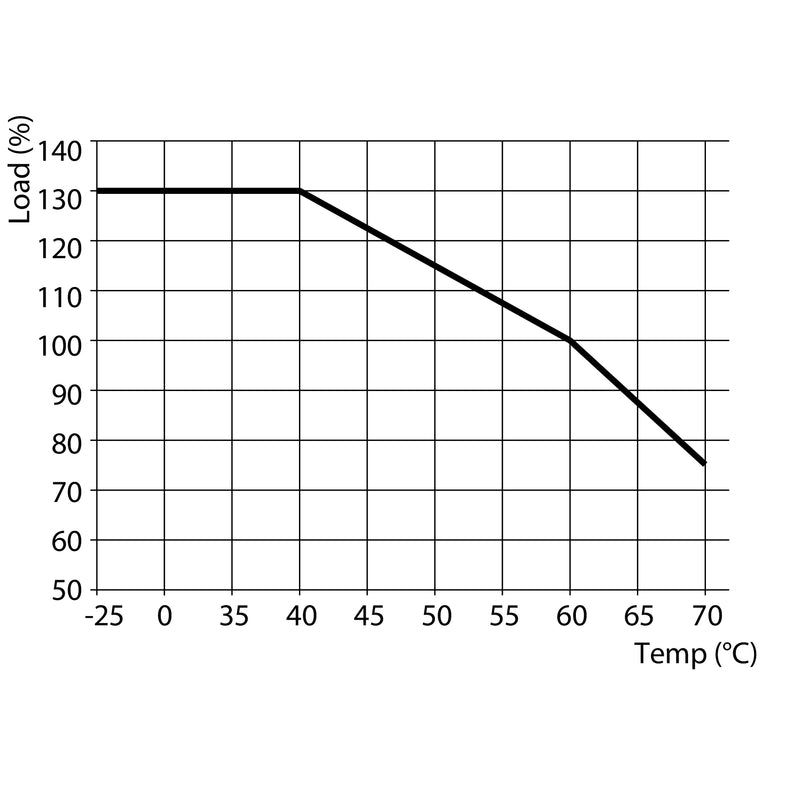

• Temperature: -25 °C to +70 °C, derating 2.5% per °C above 60 °C
• Dimensions: 75 x 130 x 125 mm (W x H x D), metal housing, IP20
