DC/DC Converter 24V/24V 20A | PRO TOP DC

The Weidmüller PRO TOPDC 24V/24V 20A is a DIN-rail DC/DC converter that regenerates a clean, galvanically isolated 24 V DC rail at up to 20 A from an existing 24 V supply. It belongs to the PRO TOP DC range, adding a communication-module slot and a 500 % peak reserve, and is used where a long DC feed has dropped voltage or where a plant section needs its own isolated 24 V rail.

• Output: 24 V DC ± 1 %, 20 A at 60 °C (26 A maximum), adjustable by potentiometer or communication module
• Continuous power: 480 W
• Peak capability: 200 % of rated current for 5 s, 500 % for 15 ms
• Input: 14-31.2 V DC nominal 24 V, linear derating below 18 V
• Efficiency: 91 %
• Isolation: 1.41 kV input to output
• Connection: PUSH IN with actuator

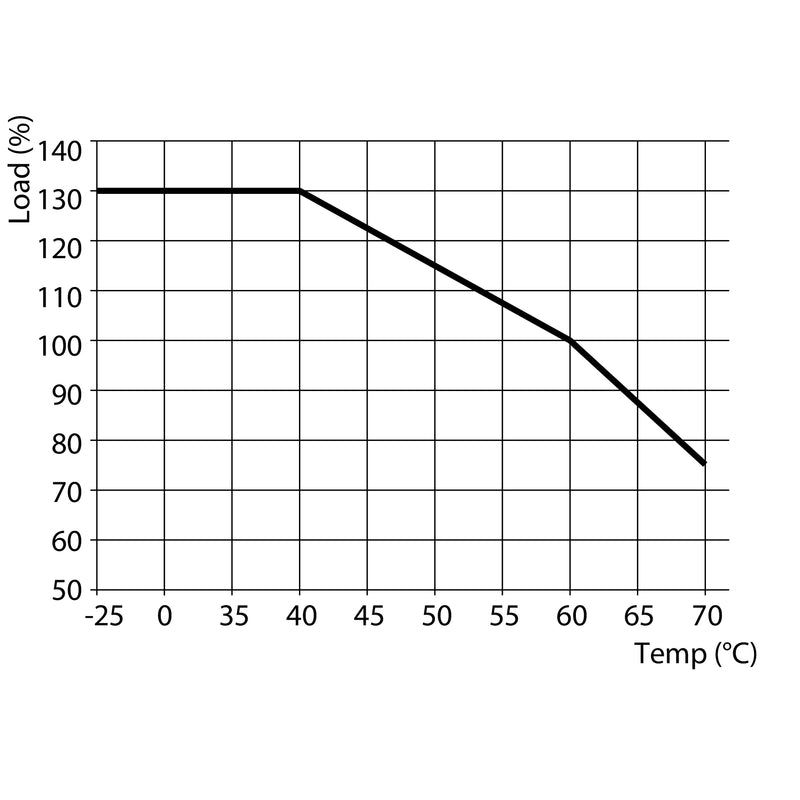

• Operating temperature: -25 °C to +70 °C, derating 2.5 % per °C above 60 °C
• Dimensions: 75 x 130 x 125 mm (W x H x D), 1746 g, TS 35 DIN rail with 50 mm clearance
