DC/DC Converter 24V/24V 10A | PRO TOP DC

The Weidmüller PRO TOPDC 24V/24V 10A is a DIN rail DC/DC converter that regenerates a stable, galvanically isolated 24 V DC output from a 24 V DC input. Its integrated ORing MOSFET and 10-unit parallel capability make it the variant to choose for redundant or decoupled 24 V rails, where a standard PRO DCDC would need a separate redundancy module.

• Output: 24 V DC ± 1 %, 10 A at 60 °C, maximum 26 A
• Input: 14-31.2 V DC, linear derating from 18 V down to 14 V (60 % rated load at 14 V)
• Power boost: 200 % for 5 s, 600 % for 15 ms
• Efficiency: 91 %
• Isolation: 1.41 kV input/output, 0.7 kV output/earth
• Redundancy: integrated ORing MOSFET, parallel connection of up to 10 units
• Connection: PUSH IN terminals with actuator, TS 35 DIN rail with 50 mm clearance above and below

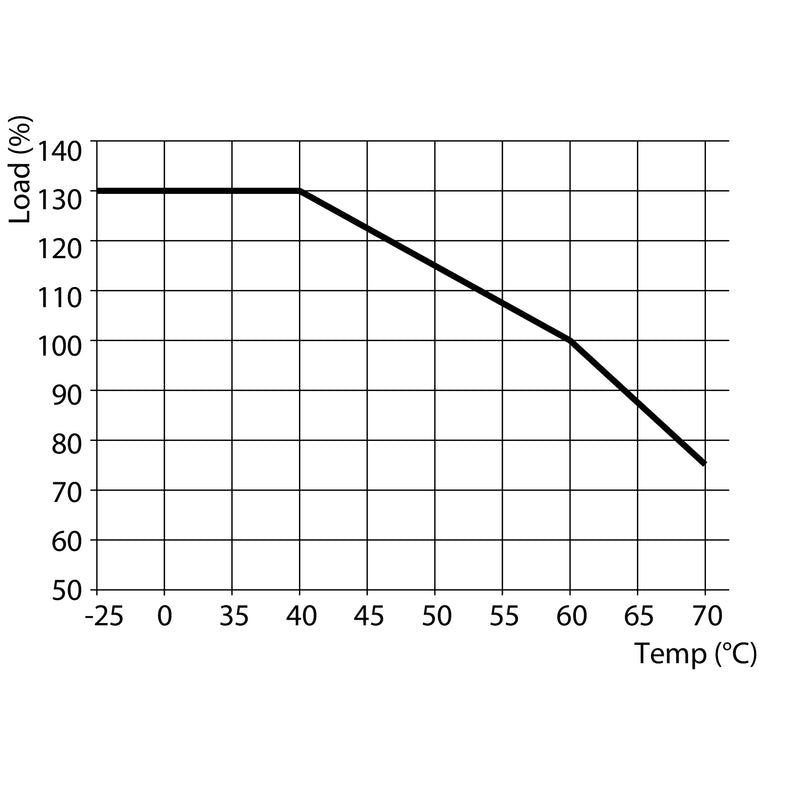

• Operating temperature: -25 °C to 70 °C, derating 2.5 % per °C above 60 °C
• Dimensions: 43 x 130 x 125 mm (W x H x D)
