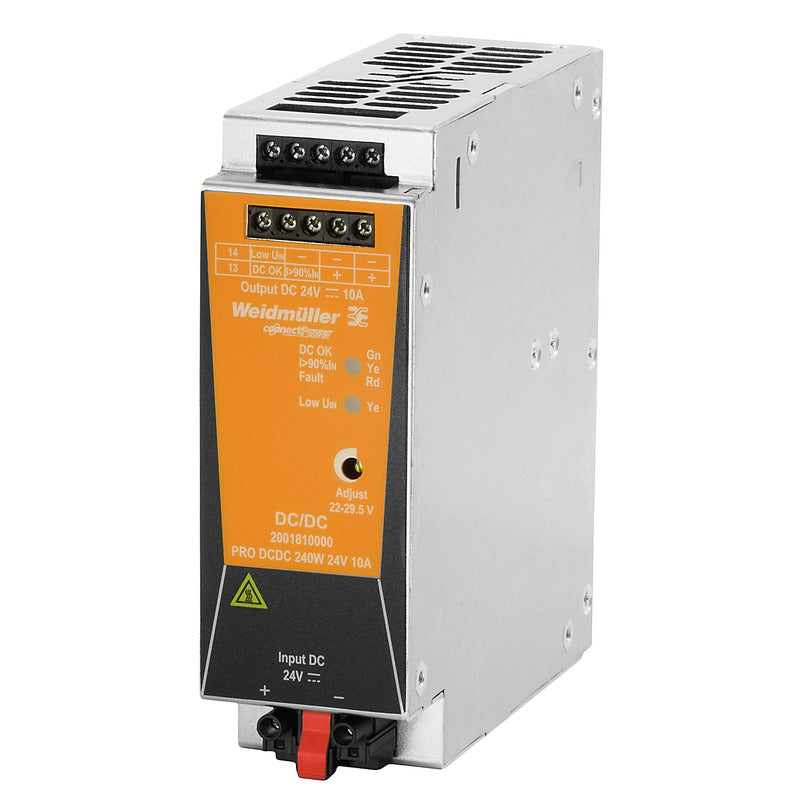

DC/DC Converter 240W 24V 10A | PRO DCDC

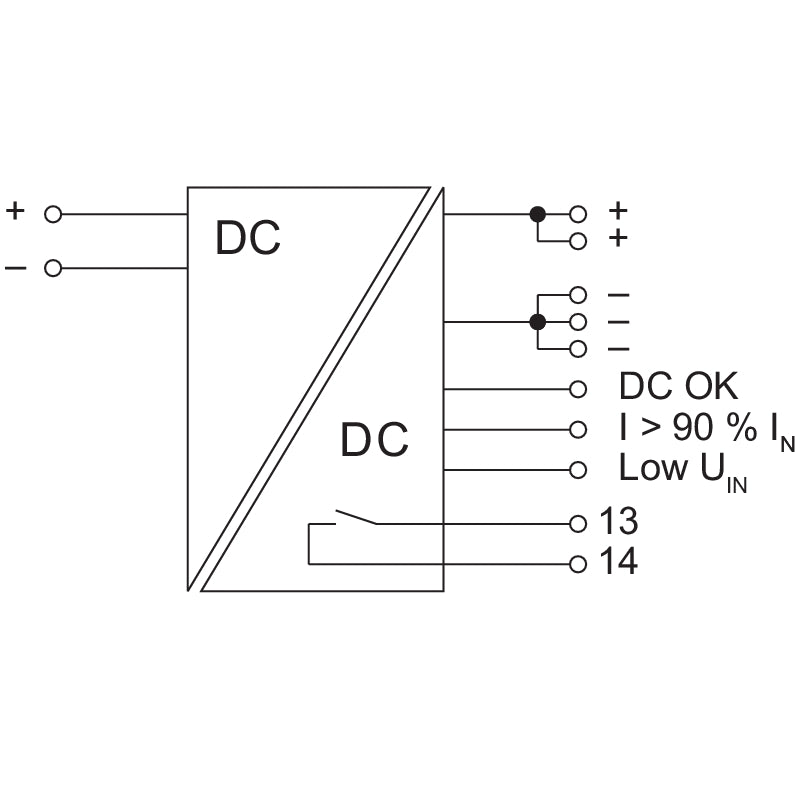

The Weidmüller PRO DCDC 240W 24V 10A is a DIN rail DC/DC converter that takes a nominal 24 V DC supply and produces a galvanically isolated, regulated 24 V DC output. It is used to decouple a sensitive control circuit from a shared battery or plant DC bus, and to hold 24 V steady on long runs where the incoming rail sags as low as 14 V.

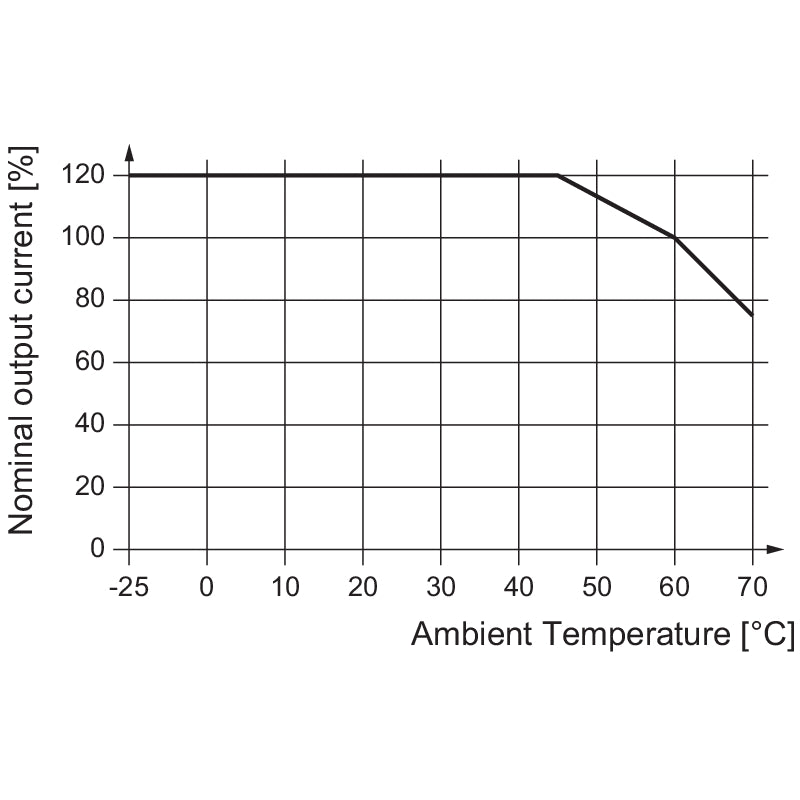

• Output: 24 V DC ± 1 %, 10 A at 60 °C (12 A at 45 °C, 7.5 A at 70 °C)
• Continuous power: 240 W
• Input: 14-32 V DC in operation, 18-32 V DC at start-up

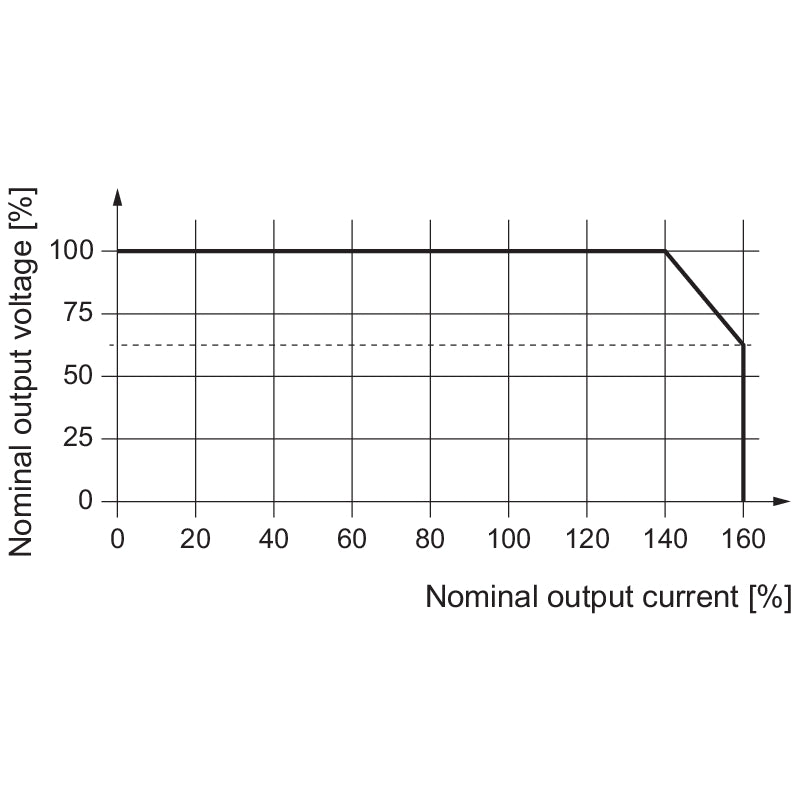

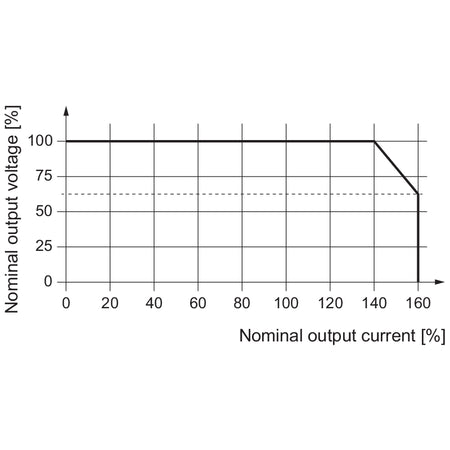

• Power boost: 150 % for 5 s, 300 % for 100 ms, 600 % for 20 ms
• Efficiency: typically 92 %
• Isolation: 1.5 kV input/output, 0.5 kV output/earth, protection class III
• Connection: screw terminals, horizontal TS 35 DIN rail mounting
• Operating temperature: -25 °C to 70 °C
• Dimensions: 43 x 130 x 120 mm (W x H x D)
