DC/DC Converter 120W 48V/24V 5A | PRO DCDC

The Weidmüller PRO DCDC 120W 48V/24V 5A is a DIN-rail DC/DC converter that steps a 48 V DC supply down to a regulated, galvanically isolated 24 V DC rail at up to 5 A. It suits telecoms, solar and battery installations distributed at 48 V that still need a conventional 24 V control rail at the cabinet, and its 4 kV isolation keeps the two systems separate.

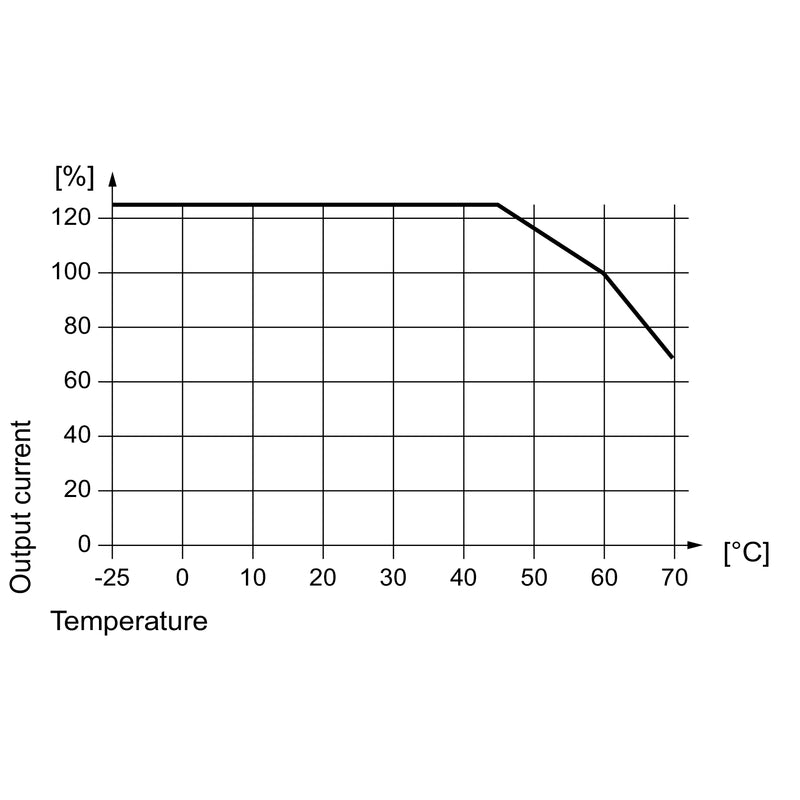

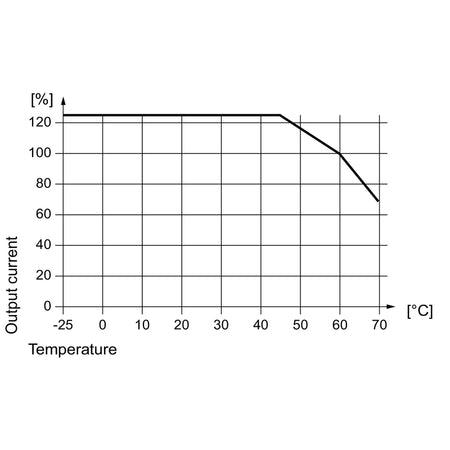

• Output: 24 V DC, 5 A at 60 °C (6.25 A at 45 °C, 3.75 A at 70 °C), adjustable 22-29.5 V
• Continuous power: 120 W

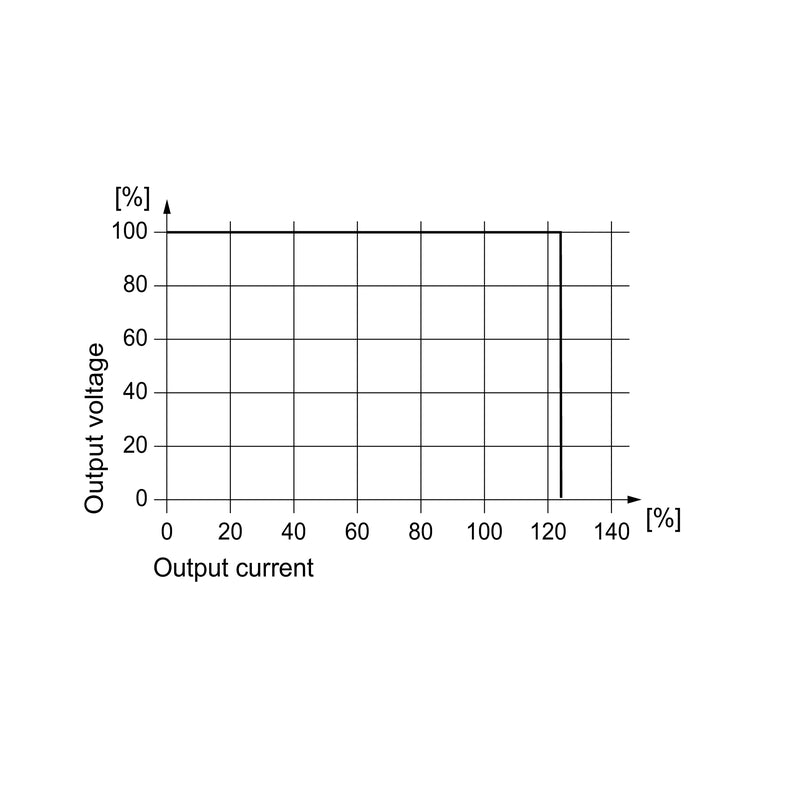

• Peak capability: 600 % of rated current for 15 ms
• Input: 28-58 V DC, nominal 48 V DC
• Efficiency: > 90 %
• Isolation: 4 kV input to output, protection class III for earth-free systems

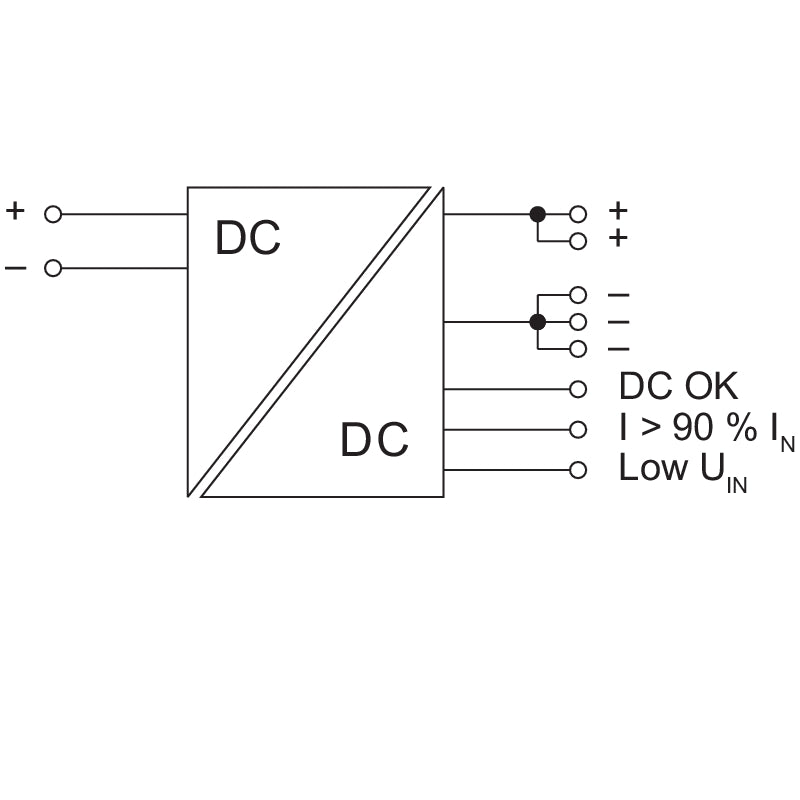

• Connection: Screw terminals, 2-pole input, 4-pole output
• Operating temperature: -25 °C to +70 °C, TS 35 DIN rail
• Dimensions: 32 x 130 x 120 mm (W x H x D), 640 g
